Intellian Technologies i9W Global Ku-Band Marine TV Systems
DirecTV compatible, DVB-S2 High Definition Ready
i9W Maritime Satellite Television System
With its 85cm dish and 2-axis stabilized platform, Intellian Technologies i9W is the world's first global satellite TV antenna that receives multi-band and multi-polarization satellite TV services with ONE LNB module via DISEqC2.0 control function.

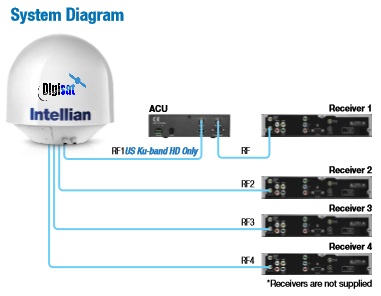

Configuration
Worldwide Reception
The Intellian exclusive WorldView LNB module is designed and manufactured by Intellian’s in-house engineering. This new LNB offers seamless switching between circular polarized programming in North, Central and South America, and linear polarized programming using a Universal Quad LNB in Europe, Middle East, and Asia Pacific.
DVB Compatibility
Now mariners can enjoy any satellite TV service with the Intellian i9W, as well as the latest advanced DVB-S2 programming around the world without manually changing the LNB inside the antenna dome each time a vessel crosses into a different satellite service region.

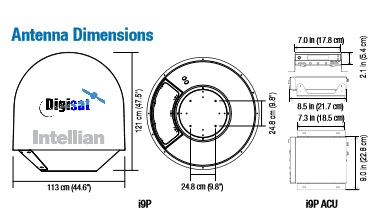

System Outline Dimensions
Part Specifications
B3-911W2 Intellian i9W Satellite TV Antenna System
Physical
Radome (D x H) 113 x 121 cm / 44.5” x 47.5”
Antenna Dish Diameter 85 cm / 33.5”
Weight 57.2 kg / 126 lbs
Environmental
Operating Temp. Range -15˚C to +55˚C / +5˚F to +131˚F
Storage Temp. Range -25˚C to +70˚C / -13˚F to +158˚F
Water Ingress IPX6
Approvals CE / FCC
Warranty 3 year parts and 1 year labor
Performance
Reception Frequency Ku-Band (10.7 ~ 12.75 GHz)
Minimum EIRP 44 dBW
Azimuth Range 680˚
Elevation Range -15° to +90°
Ship’s Motion Roll ±25˚, Pitch ±15˚
Roll & Pitch Response Rate 30˚/sec
Turn Rate 30˚/sec
RF Output Quad output
LNB LO Frequencies
Local Oscillator Frequency Polarization Area
11.250 GHz Dual Circular North America, Russia
10.500 GHz Dual Circular Latin America
10.750 GHz Single Circular Korea
10.750 GHz Dual Circular China
10.678 GHz Single Circular Japan
11.300 GHz Dual Linear South East Asia
10.700 GHz Dual Linear Australia
Universal
Low: 9.75 GHz High: 10.6 GHz Quad Linear Europe, Middle East, Africa,
some Asia countries
Antenna Control Unit
Dimensions (W x D x H) 17.8 x 21.7 x 5.4 cm / 7” x 8.5” x 2.1”
Weight 1.2 kg / 2.6 lbs
Display 2 line 20 character VFD module
Power Input Input : 9.0~30.0 V DC (Typ. 30 W, max 50 W)
GPS Interface Built-in (NMEA 0183 GPS)
Key Features
Global Satellite TV Services Compatibility
Built-in WorldView LNB Module
DVB-S2 decode capability
Built-in GPS and auto LNB pol control system
Built-in pre-programmed global satellite library
Yachts, Ships, Commercial and Military vessels
