Intellian Technologies i9P Marine Autotracking TV Antenna
Rugged, Reliable and extremely powerful satellite TV reception systems, excellent for recreational and commercial vessels over 80 feet.
i9P Marine Satellite TV Antenna
The Intellian i9P offers the most powerful and reliable satellite TV receptions for both recreational and commercial vessels over 80 feet. The i9P's stylish design makes itself fit perfectly into modern streamlined vessels.
With its patent pending innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, even without any superfluous motion sensors, the Intellian i9P can always guarantee crystal-clear TV reception with CD-quality sound even in the roughest sea conditions.

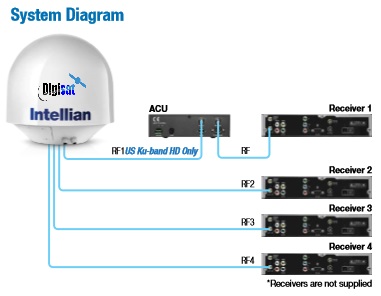

The most innovative design of the Intellian i9P is the integrated HD and TriSat modules in its control unit. This makes the i9P the first marine antenna TV system in history that allows boaters to access hundreds of HDTV channels from leading satellite TV service providers without extra conversion tools or cable wirings. With Intellian MIM, boaters can enjoy flipping channels through automatic spacecraft switching just like a home system. See the installation guide of DISH Network MIM for further details. In addition, this control unit provides boaters an interactive operating platform through its PC controller software with a very friendly user interface and completed list of world satellite library.
The i9P also offers the integrated Auto Skew Angle Control system and highly precision GPS system which not only accelerates the speed of signal acquisition time, but also enhances the quality of reception in weak satellite signal coverage areas.
Intellian i9P Features
Fully Automated System
- Automatic search and identification function.
- 2-axis step motor for manipulating the pedestal
High Quality Antenna
- 85cm diameter of parabola-type antenna for receiving Ku-Band (10.7 ~ 12.75GHz) satellite signal
- LHCP/RHCP or Horizontal/Vertical polarization
- Enabling powerful signal gain
Unsurpassed Dynamic Tracking
- Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor.
- Fastest Search Algorithm
- Wide Range Search (WRS) algorithm
- Statistical search algorithm
DVB (Digital Video Broadcasting) Signal Identification
- High speed identification employing a DVB decoder
- QPSK demodulator lock for DSS signal
Built-in GPS System
- Embedded GPS allowing the system to upload the GPS data automatically into the system
Antenna Control Unit
- Easy satellite information change and update
- Antenna status check and automatic diagnosis
- Simple antenna control using PC interface
- Reliable power supply to the antenna
- Embedded HD module and TriSat function

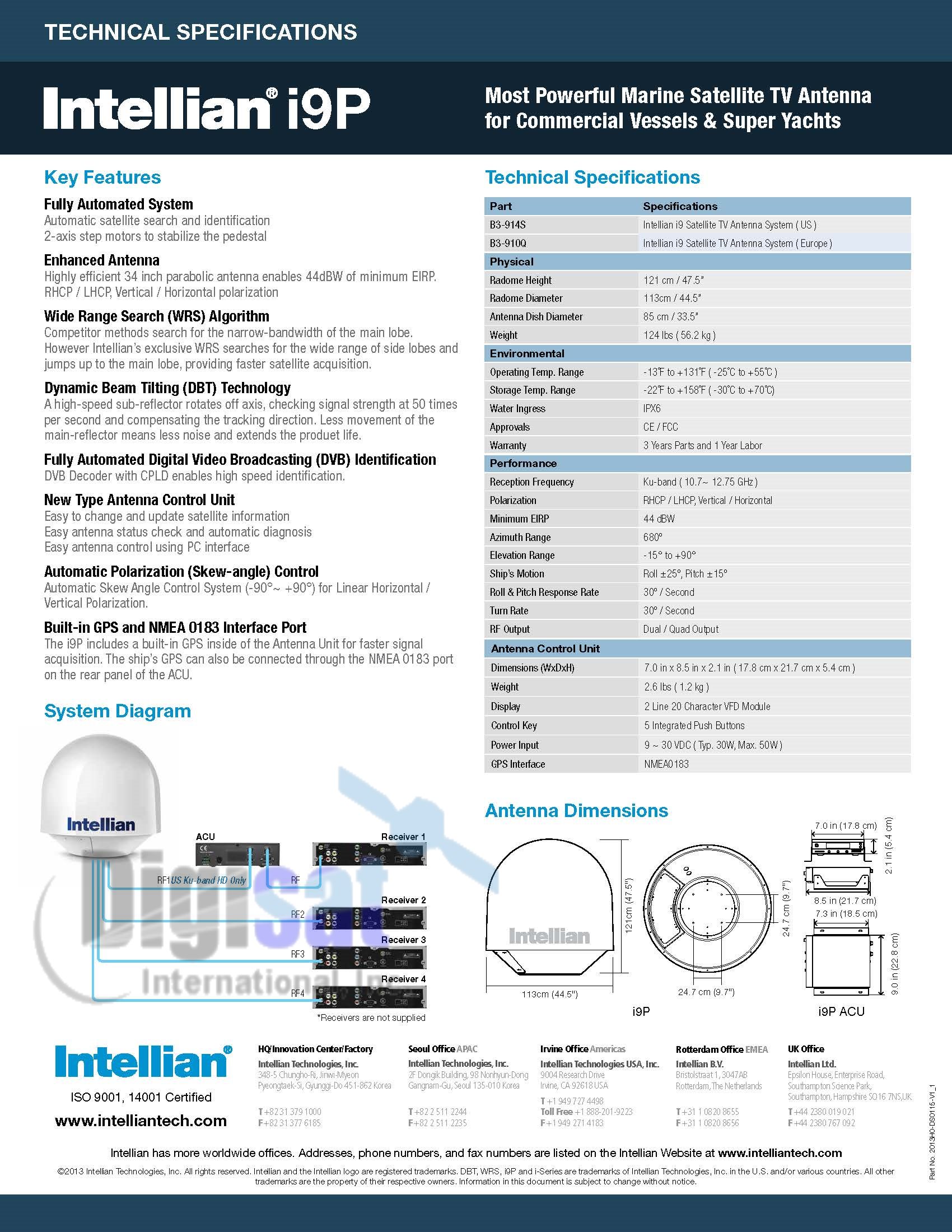

Part Specifications
B3-914S Intellian i9 Satellite TV Antenna System ( US )
B3-910Q Intellian i9 Satellite TV Antenna System ( Europe )
Physical
Radome Height 121 cm / 47.5”
Radome Diameter 113cm / 44.5”
Antenna Dish Diameter 85 cm / 33.5”
Weight 124 lbs ( 56.2 kg )
Environmental
Operating Temp. Range -13˚F to +131˚F ( -25˚C to +55˚C )
Storage Temp. Range -22˚F to +158˚F ( -30˚C to +70˚C)
Water Ingress IPX6
Approvals CE / FCC
Warranty 3 Years Parts and 1 Year Labor
Performance
Reception Frequency Ku-band ( 10.7~ 12.75 GHz )
Polarization RHCP / LHCP, Vertical / Horizontal
Minimum EIRP 44 dBW
Azimuth Range 680º
Elevation Range -15° to +90°
Ship’s Motion Roll ±25º, Pitch ±15º
Roll & Pitch Response Rate 30º / Second
Turn Rate 30º / Second
RF Output Dual / Quad Output
Antenna Control Unit
Dimensions (WxDxH) 7.0 in x 8.5 in x 2.1 in ( 17.8 cm x 21.7 cm x 5.4 cm )
Weight 2.6 lbs ( 1.2 kg )
Display 2 Line 20 Character VFD Module
Control Key 5 Integrated Push Buttons
Power Input 9 ~ 30 VDC ( Typ. 30W, Max. 50W )
GPS Interface NMEA0183
Commercial and Pleasure vessels over 80' in length
