C-Com iNetVu FLY-1801 1.8M C/Ku-Band Auto-Acquire Flyaway VSAT Antenna (FLY-1801)
Motorized 1.8M transportable antenna

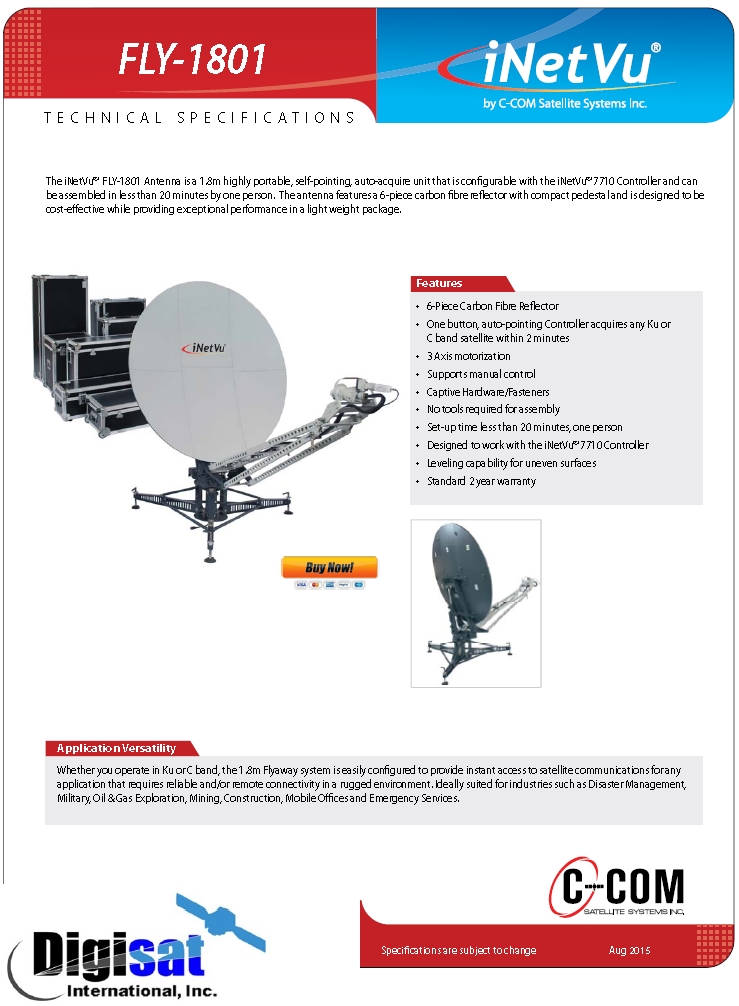

FLY-1801 1.8M Flyaway Auto-Acquire VSAT Antenna
The newly released iNetVu FLY-1801 antenna is a 1.8M highly portable, self-pointing, auto-acquire unit that is configurable with the iNetVu 7710 Controller and can be assembled in less than 15 minutes by one person. This flyaway system features a 6-piece carbon fiber reflector with an ultra compact pedestal and is designed to be extremely cost-effective while providing exceptional RF Tx/Rx performance in a light weight package.
Auto Satellite Acquisition
The FLY-1801 series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
6-Piece Carbon Fiber Reflector
One button, auto-pointing controller acquires any Ku or C band satellite within 2 minutes
3-Axis motorization
Supports manual control
Captive Hardware/Fasteners
No tools required for assembly
Set-up time less than 20 minutes, one person
Designed to work with the iNetVu® 7710 Controller
Leveling capability for uneven surfaces
Standard 2 year warranty
Application Versatility
Whether you operate in Ku or C-band, the C-Com 1801 flyaway system is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. Ideally suited for industries such as Disaster Management, Military, Oil & Gas Exploration, Mining, Construction, Mobile Offices and Emergency Services.

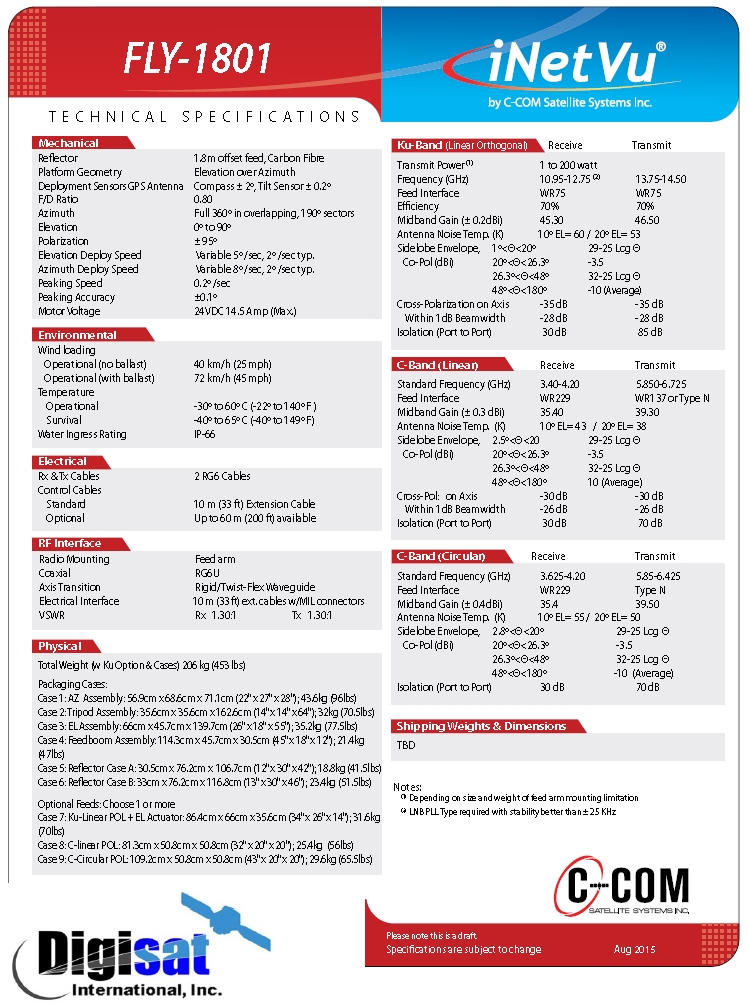

Specifications
Reflector 1.8m off set feed, Carbon Fibre
Platform Geometry Elevation over Azimuth
Deployment Sensors GPS Antenna Compass ± 2º, Tilt Sensor ± 0.2º
F/D Ratio 0.80
Azimuth Full 360º in overlapping, 190º sectors
Elevation 0º to 90º
Polarization ± 95º
Elevation Deploy Speed Variable 5º /sec, 2º /sec typ.
Azimuth Deploy Speed Variable 8º /sec, 2º /sec typ.
Peaking Speed 0.2º /sec
Peaking Accuracy ±0.1º
Motor Voltage 24VDC 14.5 Amp (Max.)
Environmental
Wind loading Operational (no ballast) 40 km/h (25 mph)
Operational (with ballast) 72 km/h (45 mph)
Temperature Operational -30º to 60º C (-22º to 140º F )
Survival -40º to 65º C (-40º to 149º F)
Water Ingress Rating IP-66
Electrical
Rx & Tx Cables 2 RG6 Cables
Control Cables
Standard 10 m (33 ft) Extension Cable
Optional Up to 60 m (200 ft) available
RF Interface
Radio Mounting Feed arm
Coaxial RG6U
Axis Transition Rigid/Twist-Flex Waveguide
Electrical Interface 10 m (33 ft) ext. cables w/MIL connectors
VSWR Rx 1.30:1 Tx 1.30:1
Ku-Band (Linear Orthogonal)
Transmit Power (1) 1 to 200 watt
Frequency (GHz) 10.95-12.75 (2) 13.75-14.50
Feed Interface WR75 WR75
Efficiency 70% 70%
Midband Gain (± 0.2dBi) 45.30 46.50
Antenna Noise Temp. (K) 10º EL= 60 / 20º EL= 53
Sidelobe Envelope, 1º<Θ<20º 29-25 Log Θ
Co-Pol (dBi) 20º<Θ<26.3º -3.5
26.3º<Θ<48º 32-25 Log Θ
48º<Θ<180º -10 (Average)
Cross-Polarization on Axis -35 dB -35 dB
Within 1dB Beamwidth -28 dB -28 dB
Isolation (Port to Port) 30 dB 85 dB
Newsgathering, Video Uplinks and other remote flyaway applications where a transportable antenna system is required.
