C-Com iNetVu 240 2.4M Motorized Auto-Acquire Fixed VSAT Antenna (FMA-240)
Motorized 2.4M Prodelin 1244 reflector, C-Band or Ku-Band Tx/RX or RX only operation
FMA-240 2.4M Fixed Auto-Acquire VSAT Antenna
The C-Com iNetVu FMA-240 Fixed Motorized Antenna system is a 2.4 meter self-pointing auto-acquire terminal that can be mounted as a permanent installation. It works seamlessly with the auto-pointing iNetVu 7024 controller and all L-Band satellite modems including iDirect and Comtech. It features "one touch" auto acquisition capability and enables users to access high throughput internet services via satellite and receive video broadcast services.
Application Versatility
The FMA-240 system is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. Ideally suited for industries such as Oil & Gas Exploration, Mining, Disaster Management, Construction, Mobile Offi ces and Emergency Services.
Auto Satellite Acquisition
The C-Com 240 series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
2.4 meter Offset, 4-piece Prime Focus, Glass Fiber SMC refl ector
Designed to work with the iNetVu 7024 Controller
Works seamlessly with the world’s most popular commercially available satellite modems
2 Axis motorization, 3rd Axis (Polarization) optional
Supports manual control when required
It is a cost eff ective solution for multi-satellite communication at any location
One button, auto-pointing controller acquires any Ku or C band satellite within 2 minutes
Locates satellites using the most advanced satellite acquisition methods
Eliminates costly repointing and network downtime due to inadvertent motion, satellite change, areas where ground shifts occur (earthquakes, landslides, mine blast zones, etc...)
Can be easily relocated when mounted on a semi-permanent platform without the need for any specialised equipment
Any compatible fi xed installation can be easily converted and upgraded to a fully motorised system
Supports Prodelin 2.4M antenna, Model 1244
System designed for light weight BUCs up to 10 kg (Max.) weight for RF electronics (BUC and LNB)
1Year Warranty
Easy BUC and Modem Integration
The 240 fixed Motorized VSAT antenna is easily integrated with the very latest RF components from ViaSat, NJRC, iDirect, Norsat and more. Complete turnkey fixed VSAT systems can be provided to meet your exact application's requirements.

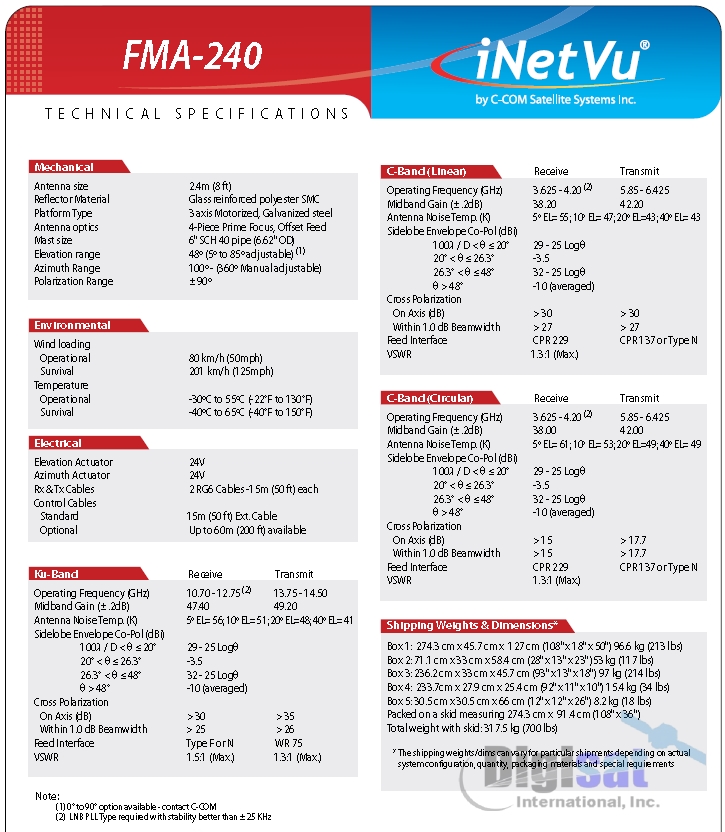

Specifications
Antenna size: 2.4m (8 ft)
Reflector Material: Glass reinforced polyester SMC
Platform Type: 3 axis Motorized, Galvanized steel
Antenna optics: 4-Piece Prime Focus, Off set Feed
Mast size: 6” SCH 40 pipe (6.62” OD)
Elevation range: 48º (5º to 85º adjustable) (1)
Azimuth Range: 100º - (360º Manual adjustable)
Polarization Range: ± 90º
Environmental
Wind loading Operational 80 km/h (50mph)
Survival 201 km/h (125mph)
Temperature Operational -30ºC to 55ºC (-22°F to 130°F)
Survival -40ºC to 65ºC (-40°F to 150°F)
Electrical
Elevation Actuator 24V
Azimuth Actuator 24V
Rx & Tx Cables 2 RG6 Cables -15m (50 ft) each
Control Cables
Standard 15m (50 ft) Ext. Cable
Optional Up to 60m (200 ft) available
C-Band or Ku-Band operation (please specify)
|
|
Receive |
Transmit |
|
Frequency (GHz) |
3.65 to 4.20 or 10.70 to 12.75 GHz |
5.85 to 6.425 or 13.75 to 14.5 GHz |
|
Feed Interface (Linear or Circular) |
Type F or N for Ku and CP229 for C-Band |
WR75 or WR137, or Type-N |
|
Nominal G/T |
Varies depending on frewquency |
|
|
Nominal EIRP |
Varies depending on frewquency |
|
All TX/RX and RX only VSAT satellite applications where remote control pointing operation is required
