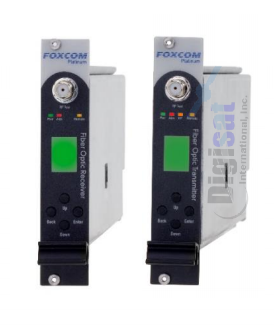

PL7130T1550 / PL7130R4 10MHz Reference Signal RF Link

High Power Input, 4 dB Optical Budget

Global Foxcom’s Platinum 10 MHz card is designed to meet the increasing demand for modularity and highperformance in a small form factor for superior long-distance transmission. With high RF input power and wide dynamic range, the link is designed to provide full specification service up to a full 4 dB optical budget with the PL7130R4 receiver.

Utilizing Global Foxcom’s DigiRF technology, the user has full control of all important functions for setup, operation, and analysis via the front panel LCD or via the associated sub-rack SNMP capability.

Each low profile individual transmitter or receiver can be “hot swapped” in the chassis maintaining a best subsystem uptime capability. Each module contains an individual processor to maximize specification performance at all times under demanding user applications.

The PL7130T1550 transmitter and PL7130R4 receiver are designed for sub-rack chassis mounting. The associated Platinum chassis, model PL7010, has 12 active slots, one main control processor (MCP) slot and two redundant power supplies. No fans are required.

Features & Benefits

Designed to transfer 10MHz reference sine signals
Equipped with 2nd harmonic filter to improve performance
Powerful management capabilities via a front panel LCD and rack-mounted SNMP
Variety of RF and optical connectors
More than 15Km distance

Technical Specifications

PL7130T1550 / PL7130R4, 10MHz Reference RF Link

High Power Input, 4 dB Optical Budget [15Km]

RF Specifications	Units	Typical	Minimum	Maximum
Frequency Range - Bandwidth	MHz	10		±0.25dB
Amplitude Response @ Unity Gain 5 ± 1 MHz	dB	±0.2		±0.25dB
Gain Stability	dB/24hr	±0.2		1
Gain Slope	dB			+1.0
Gain variation over temperature	dB		-2	2
DR (Dynamic Range – single channel)	dB			30
Noise Figure (NF)	dB	24	23	26
Input/Output Impedance	Ohm	50 of 75
1dB Compression Point	dBm	2		3
Phase Noise	dBm	None
RF Input Signal Range – Total Power	dBm		-10	+10
Maximum Input without Damage	dBm			+20
RF Output Signal Range – Total Power	dBm		-10	+12
TX/RX Input/Output Return Loss 50 Ohm 75 Ohm	dB	-14 -12		-14 -12
Test Port [front panel sample port	dB	-20	-22	-18
RF Connector Input/Output Test Port	F, SMA, BNC, N F, BNC

Optical Specifications	Units	Typical	Minimum	Maximum
Optical Wavelength	nm	1550
Optical Power Output	mW / dBm	2/3
Optical Budget / Distance	dBm/Km	1550 nm / 15
RX Optical Input Power	dBm	-1	-2	4
Optical Return Loss	dB		-60	-55
Optical Connector Types	FC-APC or SC-APC (E2000 option)

Electrical Specifications	Units	Typical	Minimum	Maximum
Supply Voltage	V DC	12
Supply Current [TX]	Amps	0.5
Supply Current [RX]	Amps	0.45
EMI Rating	EMI Rating: FCC Class B CE Mark

Physical Specifications	Units	Typical	Minimum	Maximum
Operating Temperature Range	ºC		-10	+55
Storage Temperature Range	ºC		-45	+85
Relative Humidity	95% non-condensing
Altitude	Ft/Km	10,000 [3.08] operating 14,000 [12.2] non-operating
Dimensions [DxWxH]	In/cm	12x0.8x4 / 30.5x2x10.2
Weight	Lbs./Kg	0.5 / 0.23
MTBF	Hours	TX: 309, 481 RX: 359, 057
MTTR	Hours	0.083

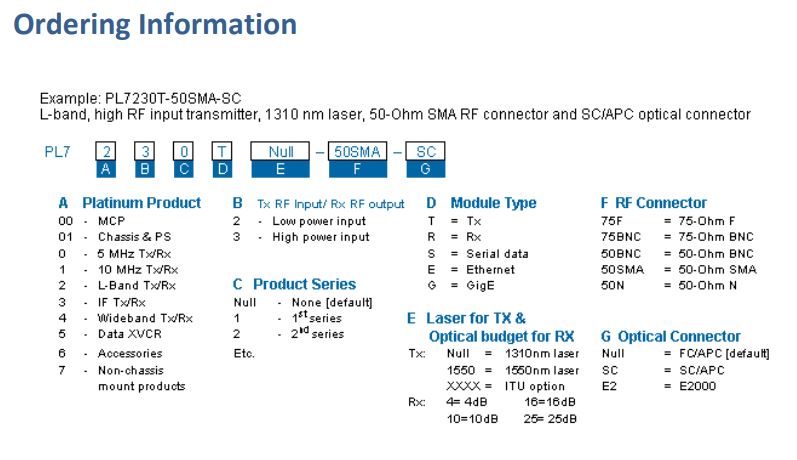

Shock & Vibration	Designed for normal transportation environment per section 514.4 MIL-STD-810E. Designed to withstand 20G at 11 ms [½ sine pulse] in non-operating configuration.
