Foxcom Maritime L-Band Tx/RX Optical IFL System
Ideal for Marine Vessel applications, provides protection against lightning damage
Maritime L-Band Tx/RX Optical IFL System
The new Foxcom fully integrated Maritime VSAT solution provides for the first time ever a cost effective alternative to coax cable
deployments. Harnessing the superior performance of fiber optics, the VSAT Maritime solution meets the special needs of
Maritime service providers and integrators around the globe.

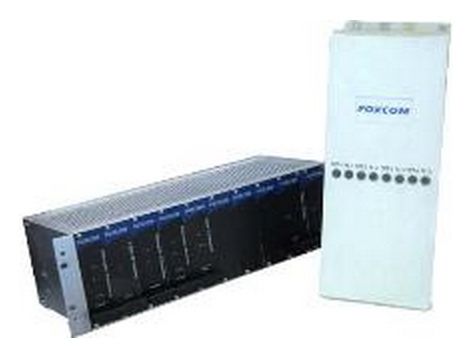

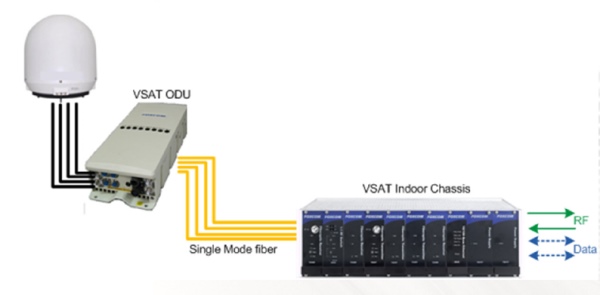

The SatLight Maritime solution is compact and flexible, making it an ideal solution for both new and retrofit applications. The kit
consists of the 4000 series outdoor unit (ODU), which is installed in the radome, and the 7000 series chassis and power supply
below deck. The Maritime fiber solution provides bidirectional Lband transport and a 10MHz reference signal needed for the BUC.
Two bidirectional RS422 ports allow the below desk equipment to control the antenna.
The ODU is an IP67 rated enclosure with a special conformal coating added to the internal components. This special coating adds
to the durability of the unit by provided extra protection from humidity and salt corrosion. Ships, yachts, oil rigs and other marine
facilities deploying Foxcom’s maritime solution, can now enjoy the many benefits that optical fiber has to offer, such as improved
signal quality, lightning protection, safety, compatibility and ease of installation
Features
Low Cost VSAT solution for Maritime Terminals.
TVRO at sea
Compatible with leading VSAT Manufacturers
Ultra Low Loss Connections up to 2km
Eliminate Lightning Damage, EMI and RFI
IP 67 Rated Outdoor Enclosure
Conformal-coated components
Ordering Information
V8013240

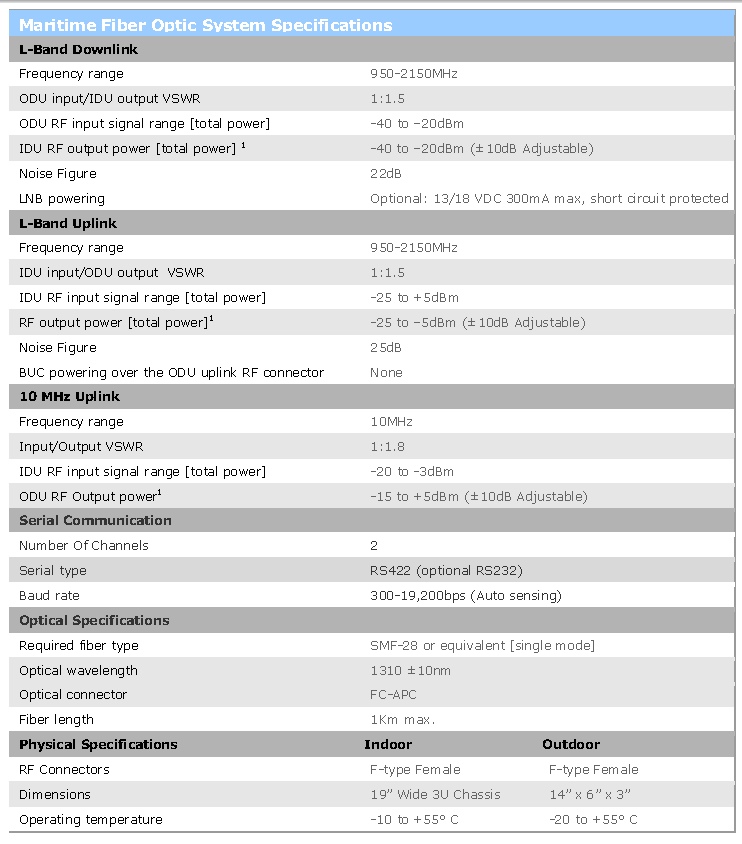

Maritime Fiber Optic System Specifications
Maritime TVRO and VSAT Internet Systems
