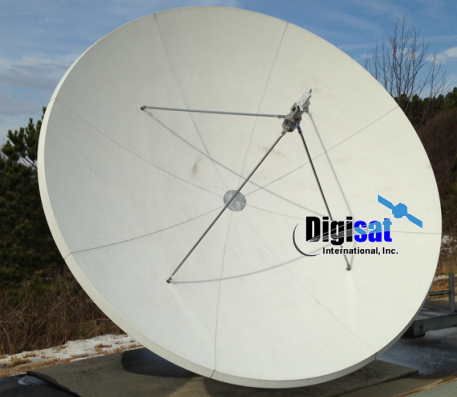

CPI SAT Series 1304 Ku-Band RxO 3.0 Meter VSAT Antenna

Electrical

Series 1304

Ku-Band

Antenna Size

Operating Frequency (GHz)

10.95 - 12.75

Midband Gain ( +/- .2dB)

49 dBi

3 dB Beamwidth

0.6°

Feed Interface

WR 75

First Sidelobe (typical)

Antenna Noise Temperature

   20° Elevation

   30° Elevation

29 K

26 K

Cross Polarization (Linear)

>30 dB (on axis)

VSWR

1.43:1 Max.

Insertion Loss

0.2 dB Max

Mechanical

Reflector Material

Eight Segment Glass Fiber Reinforced Polyester SMC

Antenna Optics

Prime Focus, Axisymmetric

Mast Pipe Size

6” SCH 80 Pipe (6.62” OD) 16.83 cm.

Elevation Adjustment Range

10° to 70° Continuous Fine Adjustment (90° optional)

Azimuth Adjustment Range

360° Continuous / Polar Mount Covers Any 90° Segment of Arc

Declination Corrected Polar Range (1305/1345/1375)

90° Arc Coverage With 36” Actuator

f/D Ratio/Feed Support

.30/Quad Feed Support

.30/Quad Feed Support

.30/Quad Feed Support

Shipping Specifications

380 lbs. (173 kg.)

520 lbs. ( 234 kg.)

575 lbs. (259 kg.)

Environmental Performance

Wind Loading

Operational Survival

45 mph (72 km/h)

125 mph (201 km/h)

Temperature

Operational Survival

-40° to 140° F (-40° to 60° C)

-50° to 160° F (-46° to 71° C)

Rain (operational)

1/2” per hour

Ice

---------------

Atmospheric Conditions

Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas

Solar Radiation

360 BTU/h/ft2
