CPI SAT SPXB8 Series X-Band Modular Antenna Mounted SSPAs- 50, 100, 125, 200W
Integrated BUC option available, ideal for High Power Government Satcom requirements

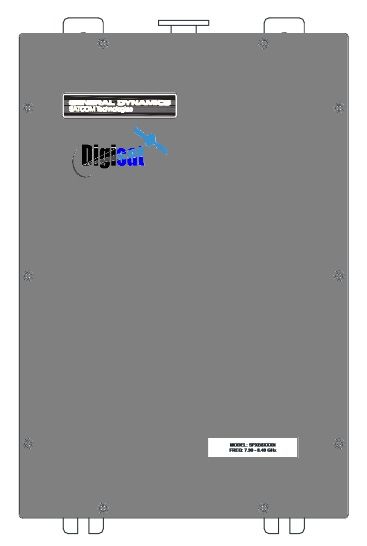

SPXB8 X-Band Military SSPA
The CPI SAT (formerly GD Satcom Technologies & Prodelin) SPXB8 Series X-Band Modular Antenna Mounted SSPAs utilize technology developed for ModuMAX amplifiers. These outdoor SSPAs feature a modular architecture with field- replaceable RF assemblies and offer output powers of up to 200 watts across the standard 7.90–8.40 GHz satellite uplink band. Housed in a weatherproof NEMA 4X enclosure, the amplifiers can be mounted in an antenna hub or outdoors in applications where it is desirable to reduce cable losses by mounting the SSPA close to the antenna. Built for reliable, trouble-free service, the amplifiers incorporate a microprocessor-based monitor and control system.
System Configuration
The SPXB8 series are available in the following configurations:
- 50 Watt- SPXB8050N
- 100 Watt- SPXB8100N
- 125 Watt- SPXB8125N
- 200 Watt- SPXB8200N
Features
- Field-replaceable RF assembly
- 50/100/125/200 W saturated output power configurations
- Microprocessor-based monitor and control
- Serial interface (RS-232/-422/-485)
- Output isolator for high load VSWR protection
- 20 dB range digital gain adjustment
- RF output sample port
- Reflected power monitoring
Applications
- Stand-alone SSPA
- 1:1 and 1:2 redundant systems
Options
- Block upconverter
Defense Communications, Military Satcom Systems
