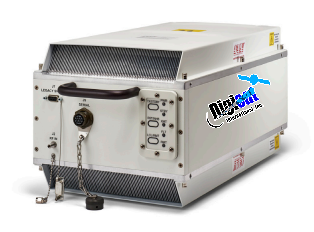

CPI 160 W GaNLink Series Ka-band Outdoor SSPA/BUC

Specifications

Model B5KO SSPA

Model B5KO BUC

ELECTRICAL SPECIFICATIONS

RF Output Frequency

27.5 to 30.0 GHz, 30.0 to 31.0 GHz

Up to 1 GHz within the 27.5 to 31.0 GHz frequency band

(multi-band BUCs are also available)

L-Band Input (BUC option only)

N/A

950 to 1450 MHz or 1000 to 1500 MHz, 500 MHz option

950 to 1950 MHz or 1000 to 2000 MHz, 1000 MHz option

Output Power (at the flange)

Peak

Linear (Plin)

Maximum CW

160 W typical (52.0 dBm) from 27.5 to 30.0 GHz, 128 W (51.1 dBm) min. from 30 to 31 GHz

See the linear performance table below

112 watts (50.5 dBm) max. from 27.5 to 30.0 GHz, 89 W (49.5 dBm) from 30 to 31 GHz

Gain

60 dB min, 70 dB max.

Gain Stability

Over temp. constant drive Over 24 hours, fixed temp.

±1.5 dB max. ±0.25 dB

±2.5 dB max. ±0.25 dB

Gain Variation

Across 500 MHz Across 2500 MHz

2.0 dB max.

3.5 dB max.

4.0 dB max.

4.5 dB max.

Small Signal Gain Slope

±0.04 dB/MHz max.

Gain Adjustment Range

16 dB

25 dB

Input VSWR / Output VSWR

1.5:1 max. (50 ohms) / 1.30:1 max.

Load VSWR

2.0:1 continuous operation; 1.5:1 full spec. compliance

Reference

N/A

10 MHz

Phase Noise

External Reference

N/A

-120 dBc/Hz at 10 Hz; -140 dBc/Hz at 100 Hz;

-145 dBc/Hz at 1 kHz; -150 dBc/Hz at ≥10 kHz

Single Sideband Phase Noise

N/A

3 dB better than IESS 308/309 phase noise profile

AM/PM Conversion

2.0º/dB max. for a single carrier at rated linear power

Harmonic Output

-60 dBc max. at rated power

Spurious Response at P(lin)

-60 dBc max. at rated power

Noise Power Density

<-150 dBW/4 kHz, receive band; <-65 dBW/4 kHz, passband

Prime Power

100 to 264 VAC single phase, 47 to 63 Hz

Power Consumption

1200 VA max (1000 VA typ. at linear power)

LINEAR PERFORMANCE

Linear Power (Plin)

27.5 to 30.0 GHz

30 to 31 GHz

dBm

Watts

dBm

Watts

3rd-Order Intermodulation Products With Regard to Each of Two Carriers

-25 dBc

47.0

50.1

46.0

40.0

3rd-Order Intermodulation Products With Regard to the Sum of Both Carriers

-25 dBc

50.4

109.5

49.5

89.1

Spectral Regrowth @ 1.0 S.R. QPSK

-30 dBc max.

48.0

63.1

46.0

40.0

-25 dBc

50.0

100.0

48.0

65.0

Noise Power Ratio (NPR)

19 dB min.

48.1

65.0

47.1

51.3

25 dB min.

44.7

29.5

43.8

24.0

CPI 160 W GaNLink Series Ka-band Outdoor SSPA/BUC

Specifications, cont’d

Model B5KO SSPA

Model B5KO BUC

MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS

Ambient Temperature

-40ºC to +55ºC operating; -54ºC to +71ºC non-operating

Relative Humidity

100% condensing

Altitude

10,000 feet (3048 m) with standard adiabatic derating of 2ºC per 1000 feet (305 m), operating;

50,000 feet (15,240 m), non-operating

Cooling

Integral forced air

Shock and Vibration

g pk, 11 msec, 1/2 sine; 2.1 grms, 5 to 500 Hz

RF Output Connection

WR34 grooved waveguide flange (WR28 optional)

Input Connection

2.9 mm female

Type N female (L-band input)

M&C Interface

RJ45 Ethernet connector (serial interface optional) / SNMP enabled

Dimensions

17.5” x 9.5” x 8.7” (445 x 242 x 221 mm), not including connectors, isolators, or top screws.

See below or contact CPI for detailed outline drawing

Weight

lbs (21.4 kg) typ.

lbs (21.8 kg) typ.
