CPI SAT Series 1184 1.8m Ku-Band Tx/Rx VSAT Antenna
1.8m, Receive and Transmit, cost effective and reliable
C-Band 1184 Ku-Band Tx/Rx VSAT

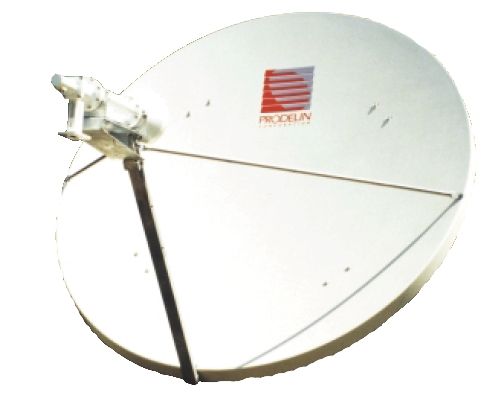

The CPI SAT (formerly GD Satcom Technologies and Prodelin) 1184 series 1.8M is a rugged, reliable antenna system, which will operate with high efficiency and at the same time successfully withstand the effects of the environment. The basic 1.8 meter antenna consists of an offset reflector, reflector support, feed support structure and Az/El positioner. The 1184 1.8m antenna is ideal for fixed VSAT applications.
|
|
Electrical |
C-BandLinear |
C-Band Circular |
Ku-Band Linear |
|||||
|
|
Antenna Size |
1.8M (71 in.) |
1.8M (71 in.) |
1.8M (71 in.) |
|||||
|
|
Operating Frequency (G Hz) Receive Transmit |
3.625 - 4.20 GHz 5.85 - 6.425 GHz |
3.625 - 4.20 GHz 5.85 - 6.425 GHz |
10.70 - 12.75 GHz 13.75 - 14.50 GHz |
|||||
|
|
Midband Gain ( +/- .2d B) Receive Transmit |
35.50 dBi 39.50 dBi |
35.30 dBi 39.30 dBi |
44.80 dBi 46.80 dBi |
|||||
|
|
Antenna Noise Temperature 10° Elevation 20° Elevation 30° Elevation 40° Elevation |
45 K 41 K 41 K 40 K |
45 K 41 K 41 K 40 K |
69 K 64 K 63 K 62 K |
|||||
|
|
Sidelobe Envelope, Co-Pol (dBi) 100λ/D ≤ θ ≤ 20° 20° < θ ≤ 26.3° 26.3° < θ ≤ 48° 48° < θ |
29 - 25 Logθ dBi -3.5 dBi 32 - 25 Logθ dBi -10 dBi (averaged). |
29 - 25 Logθ dBi -3.5 dBi 32 - 25 Logθ dBi -10 dBi (averaged) |
29 - 25 Logθ dBi -3.5 dBi 32 - 25 Logθ dBi -10 dBi (averaged) |
|||||
|
|
Cross-Pol Isolation (Linea r) On Axis With 1.0 dB Beamwidth |
30 dB 26 dB |
17.7 dB Tx 15.5 dB Rx 17.7 dB Tx 15.5 dB Rx |
30 dB 26 dB |
|||||
|
|
VSWR |
1.3:1 Max. |
1.3:1 Max. |
1.3:1 Max. Tx 1.5:1 Max. Rx |
|||||
|
|
Output Waveguide Interface Flange |
WR137 or N Tx WR229 Rx |
WR137 or N Tx WR229 Rx |
WR75 WR229 Rx |
|||||
|
|
Power Handling |
1 kW |
1 kW |
100 W |
|||||
|
Mechanical |
|
|
|||||||
|
Reflector Material |
Glass fiber reinforced polyester SMC |
|
|
||||||
|
Antenna Optics |
Prime Focus, One-Piece, Offset Feed |
|
|
||||||
|
Mount Type |
Elevation over Azimuth |
|
|
||||||
|
Mast Pipe Size |
3.5” SCH 40 Pipe (4.0” OD) 10.16 cm. |
|
|
||||||
|
Elevation Adjustment Range |
5° to 90°, Continuous Fine Adjustment |
|
|
||||||
|
Azimuth Adjustment Range |
360° Continuous |
|
|
||||||
|
Shipping Specifications (Approx. Net Weight) |
180 lbs. (82kg.) |
185 lbs. (84kg.) |
170 lbs. (78kg.) |
|
|||||
|
Environmental Performance |
|
||||||||
|
Wind Loading Operational Survival |
45 mph (72 km/h) 125 mph (201 km/h) |
|
|||||||
|
Temperature (operation al) Operational |
-40° to 140° F (-40° to 60° C) |
|
|||||||
|
Rain (operational) Operational |
1/2” (13 mm)/hr |
|
|||||||
|
Ice Operational |
------ |
|
|||||||
|
Atmospheric Conditions |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|||||||
|
Relative Humidity |
0 to 100% With Condensation |
|
|||||||
|
Solar Radiation |
360 BTU/h/ft2 |
|
|||||||
All Ku-Band receive and transmit satellite VSAT applications
