CPI SAT 1183 Series 1.8m C-Band Tx/Rx VSAT Antenna

CPI SAT Series 1184 1.8m C-Band Tx/Rx VSAT Antenna

Be the first to review this product

SKU

CPISAT-1183C

CPI SAT 1183 Series 1.8m C-Band Tx/Rx VSAT Antenna is available to buy in increments of 1

1.8m, Receive and Transmit, cost effective and reliable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

C-Band 1183 Tx/Rx VSAT

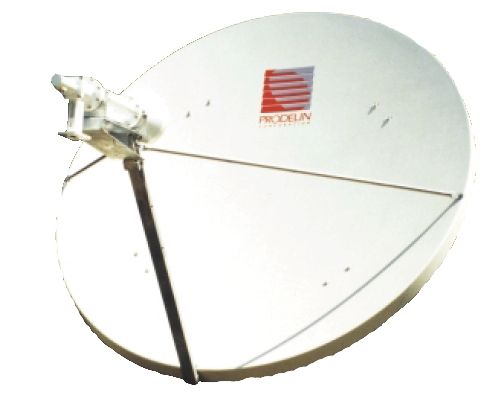

The CPI SAT (formerly GD Satcom Technologies and Prodelin) 1183 series 1.8M is a rugged, reliable antenna system, which will operate with high efficiency and at the same time successfully withstand the effects of the environment. The basic 1.8 meter antenna consists of an offset reflector, reflector support, feed support structure and Az/El positioner. The 1183 1.8m antenna is ideal for fixed VSAT applications.

Technical Specifications

	Electrical		C-BandLinear		C-Band Circular		Ku-Band Linear
	Antenna Size		1.8M (71 in.)		1.8M (71 in.)		1.8M (71 in.)
	Operating Frequency (G Hz) Receive Transmit		3.625 - 4.20 GHz 5.85 - 6.425 GHz		3.625 - 4.20 GHz 5.85 - 6.425 GHz		10.70 - 12.75 GHz 13.75 - 14.50 GHz
	Midband Gain ( +/- .2d B) Receive Transmit		35.50 dBi 39.50 dBi		35.30 dBi 39.30 dBi		44.80 dBi 46.80 dBi
	Antenna Noise Temperature 10° Elevation 20° Elevation 30° Elevation 40° Elevation		45 K 41 K 41 K 40 K		45 K 41 K 41 K 40 K		69 K 64 K 63 K 62 K
	Sidelobe Envelope, Co-Pol (dBi) 100λ/D ≤ θ ≤ 20° 20° < θ ≤ 26.3° 26.3° < θ ≤ 48° 48° < θ		29 - 25 Logθ dBi -3.5 dBi 32 - 25 Logθ dBi -10 dBi (averaged).		29 - 25 Logθ dBi -3.5 dBi 32 - 25 Logθ dBi -10 dBi (averaged)		29 - 25 Logθ dBi -3.5 dBi 32 - 25 Logθ dBi -10 dBi (averaged)
	Cross-Pol Isolation (Linea r) On Axis With 1.0 dB Beamwidth		30 dB 26 dB		17.7 dB Tx 15.5 dB Rx 17.7 dB Tx 15.5 dB Rx		30 dB 26 dB
	VSWR		1.3:1 Max.		1.3:1 Max.		1.3:1 Max. Tx 1.5:1 Max. Rx
	Output Waveguide Interface Flange		WR137 or N Tx WR229 Rx		WR137 or N Tx WR229 Rx		WR75 WR229 Rx
	Power Handling		1 kW		1 kW		100 W
Mechanical
Reflector Material				Glass fiber reinforced polyester SMC
Antenna Optics				Prime Focus, One-Piece, Offset Feed
Mount Type				Elevation over Azimuth
Mast Pipe Size				3.5” SCH 40 Pipe (4.0” OD) 10.16 cm.
Elevation Adjustment Range				5° to 90°, Continuous Fine Adjustment
Azimuth Adjustment Range				360° Continuous
Shipping Specifications (Approx. Net Weight)				180 lbs. (82kg.)		185 lbs. (84kg.)		170 lbs. (78kg.)
Environmental Performance
Wind Loading Operational Survival		45 mph (72 km/h) 125 mph (201 km/h)
Temperature (operation al) Operational		-40° to 140° F (-40° to 60° C)
Rain (operational) Operational		1/2” (13 mm)/hr
Ice Operational		------
Atmospheric Conditions		Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
Relative Humidity		0 to 100% With Condensation
Solar Radiation		360 BTU/h/ft2

Applications

All C-Band receive and transmit satellite VSAT applications
