CPI SAT Model 2985 .98M Mobile Vehicle Mounted VSAT System
Excellent for remote internet communications and satellite news gathering

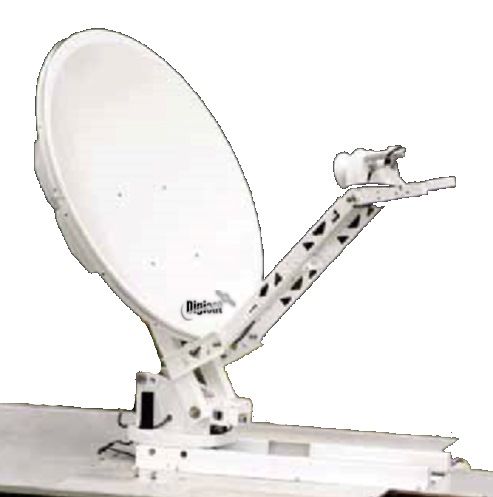

The CPI SAT (formerly GD Satcom Technologies & Prodelin) Model 2985 is a .98 Meter Mobile VSAT Antenna System that's capable of being mounted on most all vehicles from small cars to large trucks and trailers. The 2985 Series Vehicular Satellite communications antenna delivers extraordinary RF performance for Ku-Band applications. The vehicle mounted stow-mobile VSAT terminal delivers immediate Internet and Broadband video access on multiple Ku-band satellite platforms worldwide.
Ruggedly Constructed
Featuring powder- coated aluminum pedestals, stainless steel hardware and brass bushings, this Mobile VSAT terminal is built with quality materials to provide reliable satellite communications in the harshest conditions. The Mobile VSAT systems simple design allows for true “one-button” operation for the end-user and quick field service for technicians, making the Mobile VSAT both “user” and “service” friendly.
|
Mount |
Az over EI |
Az over EI |
|
Reflector Optics Polarization |

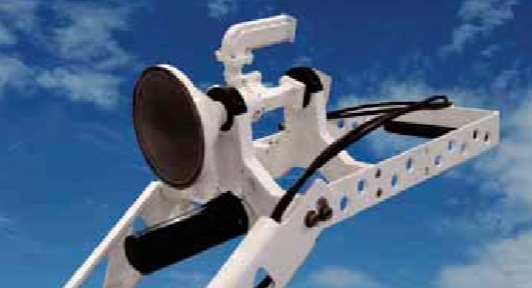

Compression Molded FRP Single Offset Prime Focus Feed Rotation |
Compression Molded FRP Single Offset Prime Focus Feed Rotation |
|
Antenna Weight Stowed Dimensions Deployed Height Az Travel EI Drive System Pol Drive System Offset Correction |
107 Pounds 67.5” long x 39” side x 15” high (171cm L x 99 cm W x 38 cm H) 62” Max (157 cm) 430º (+ 215º), .5º backlash Actuator + 110º, 2º backlash Yes |
138 Pounds 84” long x 48.5” wide x 16.5” high 213 cm L x 123 cm W x 42 cm H) 75” Max (191 cm) 430º (± 215º), .5º backlash Actuator + 110º, 2º backlash Yes |
|
Deployment Compass Sensor Tilt |
Yes Yes |
Yes Yes |
|
Model 7000 Indoor Controller Dimensions |
7” wide x 1.75” high x 7.25” deep (17.8 cm W x 4.4 cm H x 18.4 cm D) |
7” wide x 1.75” high x 7.25” deep (17.8 cm W x 4.4 cm H x 18.4 cm D) |
|
TX Frequency RX Frequency TX Gain |
13.75 - 14.5 GHz 10.95 - 12.75 GHz 41.3 dBi |
13.75 - 14.5 GHz 10.95 - 12.75 GHz 43.2 dBi |
|
RX Gain |
39.8 dBi |
41.7 dBi |
|
Polarization |
Horiz. Or Vert. |
Horiz. Or Vert. |
|
Cross Pol Isolation within BPE (Optional Mode Match Feed) Any Angle off axis Sidelobe Envelope, Co-Pol (dBi) 1º ≤ q ≤ 20º 20º < q < 26.3º 26.3º < q ≤ 48º 48º < q RX Port Interface |
-30/0 dB Max -35.0 dB Max -25.0 dB Max 29-25 Logq dBi -3.5 dBi 32-25 Logq dBi -10 dBi (averaged) WR-75 |
-30.0 dB Max-35.0 dB Max -25.0 dB Max 29-25 Logq dBi-3.5 dBi32-25 Logq dBi-10 dBi (averaged) WR-75 |
|
TX Port Interface |
WR-75 |
WR-75 |
|
RX L-Band Interface |
RG-6 |
RG-6 |
|
TX L-Band Interface |
RG-6 |
RG-6 |
|
Approvals |
TBD |
TBD |
|
Front Panel User Interface GUI Interface Connections |
Push Button Operation Via User Laptop Ethernet |
Push Button Operation Via User Laptop Ethernet |
|
Input Voltage Power Consumption (Max) Power Supply |
12 VDC (120VAC optional) 250W max. 110/220 VAC |
12 VDC (120VAC optional) 250W max. 110/220 VAC |
|
TX |
RG-6 |
RG-6 |
|
RX |
RG-6 |
RG-6 |
|
Communication |
RG-6 |
RG-6 |
|
Max Cable Length, Indoor - Outdoor |
100 ft. (30.48 m) |
100 ft (30.48 m) |
|
Operational Wind Speed Operational Wind Speed to Stow Operational Temperature Storage Temperature Operational Elevation Modem Interface |
50 mph w/0.25 dB max. loss @Ku-band (67 km/h) 50 mph (83 km/h) -40º F to 140º F (-40º C to 60º C) -50º F to 160º F (-46º C to 71º C) 70º Max. Look Angle Via Ethernet |
45 mph w/0.25 dB max. loss @Ku-band (67 km/h) 50 mph (83 km/h) -40º F to 140º F (-40º C to 60º C) -50º F to 160º F (-46º C to 71º C) 70º Max. Look Angle Via Ethernet |
|
Mount Options Transit Cases |
Vehicle, Trailer or Ground Mount Optional |
Vehicle, Trailer or Ground Mount Optional |
Mobile Internet Connectivity, Remote Satellite News Gathering
