CPI SAT C135P 1.35M Portable Ku-Band Fly-Drive Antenna System
Cased Based, Portable or Vehicle mounted, Intelsat & Eutelsat Compliant
C135P Fly-and-Drive VSAT
This product has reached end of life and is no longer available. Please contact us for information on a comparable replacement.

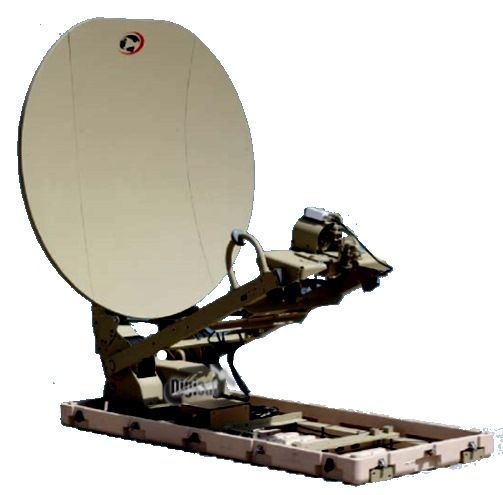

The CPI SAT (formerly GD Satcom Technologies & Prodelin) lightweight C135P 1.35-meter portable antenna is a compact design for worldwide transmit and receive operation. This transit case portable mount antenna consists of a three-piece carbon fiber reflector mounted on a cable drive elevation-over- azimuth positioner. This results in a low-weight antenna with superior stiffness and high performance under wind loading conditions. The state-of-the-art design provides exceptionally low sidelobe and cross-polarization performance, within ITU, EUTELSAT and FCC requirements. The complete antenna system can operate from its transit case or can be skid- mounted with most lightweight vehicle structures.
|
Frequency (GHz) |
10.950 - 12.750 |
13.750 - 14.500 |
19.700 - 21.200 |
29.500 - 31.000 |
|||
|
Antenna Gain at Midband, dBi |
42.40 |
44.10 |
47.00 |
49.70 |
|||
|
VSWR |
1.30:1 (17.7 dB) |
1.30:1 (17.7 dB) |
1.30:1 (17.7 dB) |
1.30:1 (17.7 dB) |
|||
|
Beamwidth (in degrees at midband) -3 dB |
1.23 1.03 |
0.68 |
|
0.50 |
|||
|
-15 dB |
2.58 2.16 |
1.43 |
|
1.05 |
|||
|
Sidelobe Performance |
Meets ITU, EUTELSAT, FCC |
|
Meets ITU |
|
|||
|
Antenna Noise Temperature 5° Elevation |
76 K |
170 K |
|
|
|||
|
10° Elevation |
62 K |
139 K |
|
|
|||
|
20° Elevation |
55 K |
117 K |
|
|
|||
|
40° Elevation |
54 K |
103 K |
|
|
|||
|
Power Handling (total) |
1 kW CW |
|
|
500 Watts |
|||
|
Cross Polarization Isolation (minimum) On Axis |
35 dB 35 dB |
24.8 dB |
|
24.8 dB |
|||
|
Within 1.0 dB Beamwidth |
27 dB |
|
35 dB |
24.8 dB |
|
24.8 dB |
|
|
Port to Port Isolation (minimun) Rx/Tx (Rx frequency) |
0 dB |
|
-35 dB |
0 dB |
|
-75 dB |
|
|
Tx/Rx (Tx frequency) |
-85 dB |
|
0 dB |
-85 dB |
|
0 dB |
|
|
RF Specification |
|
975-4534 |
|
|
975-4577 |
|
|
Highly portable, fly and drive, easily transported via checked baggage
