CPI SAT C135M 1.35M Mobile Ku-Band SNG Antenna System
Intelsat & Eutelsat Compliant, Compatible with all popular modems & BUCs
C135M Transportable Antenna
This product has reached end of life and is no longer available. Please contact us for information on a comparable replacement.

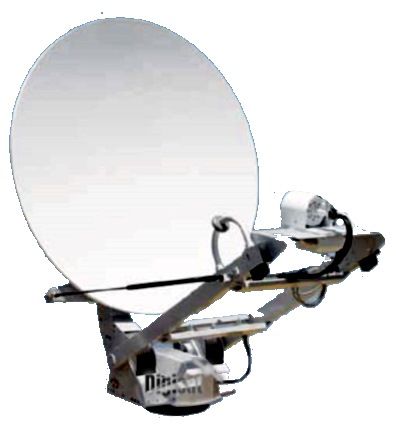

The CPI SAT (formerly GD Satcom Technologies & Prodelin) lightweight C135M 1.35-meter mobile VSAT antenna is a compact design for worldwide transmit and receive operation in Ku-band. This transportable antenna consists of a single-piece carbon fiber composite reflector mounted on a cable drive elevation-over- azimuth positioner. This results in a low-weight antenna with superior stiffness and high performance under wind loading conditions. The state-of-the-art design provides exceptionally low sidelobe and cross-polarization performance, well within INTELSAT and EUTELSAT requirements. The complete antenna system can be interfaced with most lightweight vehicle structures for the purpose of mobile SNG applications.
|
Frequency (GHz) |
10.700 - 12.750 |
13.750 - 14.500 |
10.700 - 12.750 |
13.750 - 14.500 |
||||
|
Antenna Gain at Midband, dBi |
42.80 |
44.50 |
42.90 |
44.30 |
||||
|
VSWR |
1.35:1 (16.5 dB) |
1.30:1 (17.7 dB) |
1.30:1 (17.7 dB) |
1.30:1 (17.7 dB) |
||||
|
Beamwidth (in degrees at midband) -3 dB |
1.23 |
1.03 |
1.17 |
1.00 |
||||
|
-15 dB |
2.58 2.16 |
2.46 2.10 |
||||||
|
Sidelobe Performance |
Meets Eutelsat, FCC 25.209 or ITU-RS-580 |
Meets FCC 25.209 or ITU-RS-580 |
||||||
|
Antenna Noise Temperature 5° Elevation |
72 K |
71 K |
||||||
|
10° Elevation |
58 K |
57 K |
||||||
|
20° Elevation |
51 K |
50 K |
||||||
|
40° Elevation |
50 K |
48 K |
||||||
|
Power Handling (total) |
1 kW CW |
1 kW CW |
||||||
|
Cross Polarization Isolation (minimum) On Axis |
35 dB 35 dB |
30 dB 30 dB |
||||||
|
Within 1.0 dB Beamwidth |
27 dB |
|
35 dB |
27 dB |
|
27 dB |
||
|
Port to Port Isolation (minimun) Rx/Tx (Rx frequency) |
0 dB |
|
-30 dB |
0 dB |
|
-30 dB |
||
|
Tx/Rx (Tx frequency) |
-85 dB |
|
0 dB |
-85 dB |
|
0 dB |
||
|
RF Specification |
|
975-4593 |
|
|
975-3975 |
|
||
Ku-Band transmit and receive
