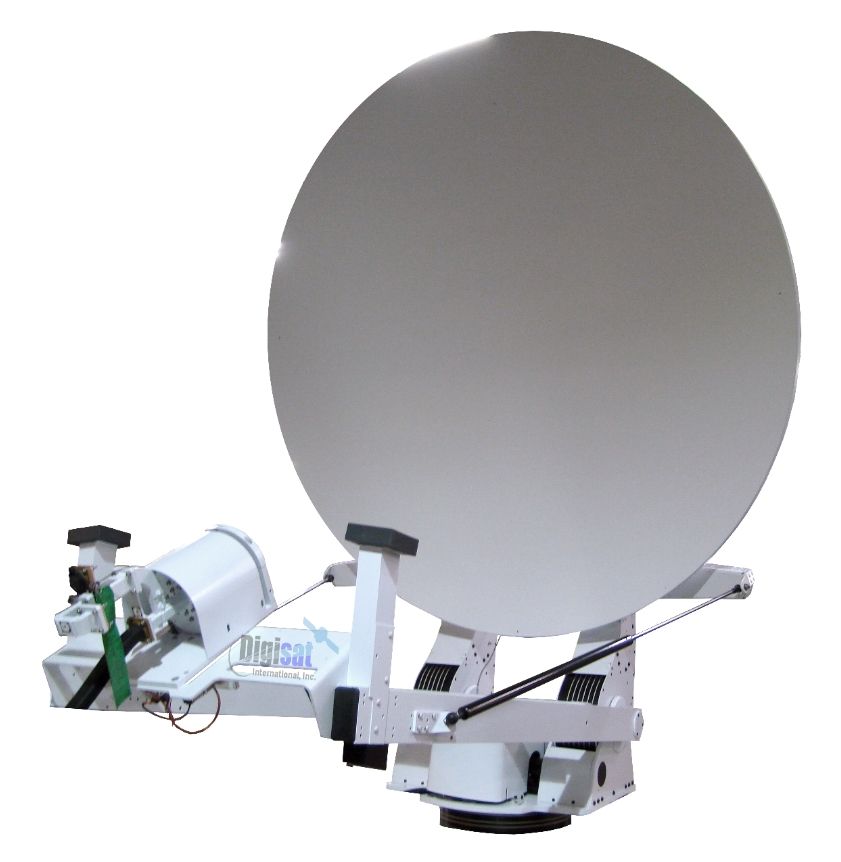

CPI SAT C140MW Vehicle Mount High Wind Mobile Antenna

C140MW High Wind Antenna

The CPI SAT (formerly GD Satcom Technologies & Prodelin) lightweight C140MW 1.40-meter high wind mobile Ka-Band VSAT antenna is a compact design for worldwide transmit and receive operation in Ku-band. This transportable antenna consists of a single-piece carbon fiber composite reflector mounted on a cable drive elevation-over- azimuth positioner. This results in a low-weight antenna with superior stiffness and high performance under wind loading conditions. The state-of-the-art design provides exceptionally low sidelobe and cross-polarization performance, well within INTELSAT and EUTELSAT requirements. The complete antenna system can be interfaced with most lightweight vehicle structures for the purpose of mobile SNG applications.

The complete mobile vehicle VSAT antenna system can be interfaced with most lightweight vehicle structures for the purpose of mobile SNG applications.

Features

• Aluminum/Carbon fiber construction
• Ultra compact and Light weight
• Precise reflector surface with high stiffness
• Robust design for vehicle mounting
• High performance
• Low sidelobes, high E.I.R.P. capability
• Compliant under operational higher wind conditions
• Stow/deployment
• Low profile stow position on vehicle
• Precision alignment options include a jog controller
• Boom-mounted electronics integration kits with Tx waveguide run
