CPI SAT 1.8AEBP 1.8M Elevation-Over-Azimuth Antenna Positioner
Operating frequency: L-Band through Ka-Band, Polarization: Simultaneous Right Hand and Left Hand Circular, Feed type: conically scanning
1.8AEBP 1.8M Elevation-Over-Azimuth Antenna Positioner

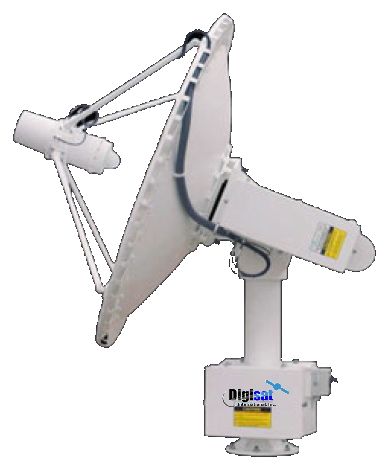

The CPI 1.8AEBP 1.8 meter antenna is a high-precision, elevation-over-azimuth satellite tracking system suitable for X, S, and L-Band operation. Utilizing proven ODB technology to provide integrated control of the antenna positioner and RF payload, it’s the optimal choice for service in remote locations and hostile climates.
Features
- EL/AZ Positioner Configurations
- Supports Solid Reflectors up to 6.1 meters (20 ft.)
- High Reliability and Accuracy
- High Torque and Low Backlash
- Rotary Joint and Slipring for Continuous Azimuth Rotation
- Fast Slew Rates
- Brushless DC Motors
- Supports L-Band through Ka-Band
- PC-based Automated Computer Control with P-Series ACU
- Acquisition-Aid Antenna
- Compass and Inclinometer
- Fiber-Optic Control
- Transit Case
Whether you're tracking a Low Earth Orbit (LEO) satellite or providing remote sensing services, Digisat is ready to deliver a total turn-key high speed X/Y antenna system solution.
Questions? US Toll Free: +1-855-DIGISAT | International: +1-321-676-5250 | Contact US
The 1.8AEBP antenna positioner and its ancillary RF components are typically used for the following tracking applications:
- EOS-DB - Earth Observation Satellites - Direct Broadcast data tracking LEO and MEO satellites*
- TT&C - Telemetry, Tracking and Control
- RADAR for advanced meteorological and environmental analysis
- SARSAT - Search and Rescue reception of MEO satellites in S and L Bands
- UAS/UAV aircraft and missile tracking
