Telecommunication Systems TCS Type 3 X/Y Tracking Antenna
Precision carbon composite antennas, high-speed X/Y axis operation, tracks all low earth orbit satellites

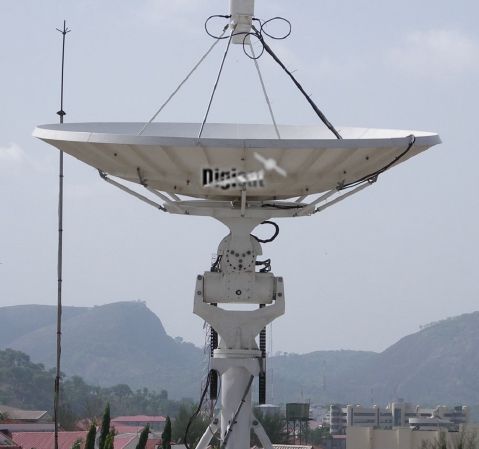

Type-3 X/Y High Speed Tracking Antenna
The Telecommunication Systems Type 3 auto-tracking antenna system is a cost effective X/Y antenna pedestal technology that specializes in precision antenna tracking. Our systems are specifically designed for the Low and Medium earth orbits in support of Remote Sensing and TT&C applications. Applications include: AQUA, TERRA, NPP, MODIS, HRPT, SeaWifs, LANDSAT, SPOT, ENVISAT, ERS, IRS, RADARSAT, DMC, METOP.
Digisat offers a wide range of X/Y tracking antennas from 1.5-meters to 7.3-meters in diameter. When coupled with our installation expertise and worldwide support in such extreme environments as the Arctic, Middle East and Tropics - our vast antenna system offerings provide the customer a complete satellite telemetry and tracking solution.
Available Options
Dual frequency / polarization
High performance LNAs
Full RF chain
Frequency converters
Spectrum analyzers
RF switching
Demodulators/modems
Uplink amplifiers
Anti-icing
Webcams
Trailer mountable
Radomes
Installation services
Civil engineering
Key Features
X/Y axis configuration
No keyhole at zenith
Ideal for tracking LEO, MEO and GEO spacecraft
Ethernet (TCP/IP) antenna control and monitoring
Custom software control
Low power consumption
High reliability
Whether you're tracking a Low Earth Orbit satellite or providing remote sensing services, Digisat is ready to deliver a total turn-key high speed X/Y antenna system solution.
Questions? US Toll Free: +1-855-DIGISAT | International: +1-321-676-5250 | Contact US
Type 3 Tracking Antenna Specifications |
|
Mechanical |
|
|
Antenna Mount |
Type 3 X/Y |
|
Aperture Size |
3.0m—4.2m (Outdoor System) 3.0m—5.0m (In-Radome System) |
|
Pointing Accuracy |
<0.1° |
|
Position Step Resolution |
0.00004° |
|
Acceleration |
10°/s2 max |
|
Velocity |
4°/s typical, 10°/s max |
|
Degrees of Freedom |
2 (X and Y) |
|
Axis Travel |
Full hemispheric coverage |
|
Horizon limits |
-2° typical |
Control System |
|
|
Interface |
Ethernet |
|
Power |
110/240Vac, 1ph, 16A |
RF |
|
|
Frequency Range |
L, S, X, C, Ku and Ka Band |
|
Polarization |
LHCP and/or RHCP |
|
Feed Configuration |
Prime Focus or Cassegrain |
|
Subreflector |
Reflective or Frequency Selective |
|
Typical Performance(1) 4.2m Outdoor |
S Band—16.0dB/K |
|
4.2m Outdoor |
X Band—26.0dB/K |
|
5.0m In-Radome |
S Band—17.0dB/K |
|
5.0m In-Radome |
X Band—27.0dB/K |
|
5.0m In-Radome |
X Band—29.2dB/K (Cassegrain) |
Environmental |
|
|
Wind Speed |
100km/h wind (Operational)(2) 200km/h wind (Survival) |
|
Temperature |
-10°C—+50°C (Operational)(2) -40°C—+70°C (Survival) |
|
Humidity |
100% Relative Humidity |
|
Driving Rain |
Up to 10cm/hr |
High Gain tracking applications, full motion X and Y axis configuration
