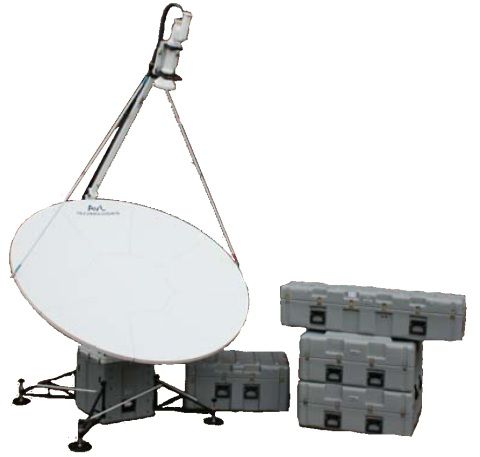

AVL Technologies 2460/2020 2.4M Quad-Band Motorized Flyaway Antenna
Ka-Band, C-Band, X-Band, and Ku-band frequency operation all in one antenna
2460-2020 Quad Band Flyaway VSAT
The AVL Technologies 2460/2020 2.4M Quad-Band Motorized Flyaway Antenna is excellent for satellite news gathering applications where a larger apperture flyaway antenna is required. The 2460 / 2020 2.4M Flyaway Antenna is fully capable of transmitting and receiving C-Band, X-Band, Ku-Band and Ka-band signals which make it an ideal choice for satellite professionals that require a highly adaptable flyaway antenna system.
Key Features:
2.4M Quad-Band Portable Auto-Acquisition
Antenna Reflector- 2.4 Meter, 9 piece Carbon Fiber
Optics- Offset, Prime Focus, 0.8 f/D
Interchangeable Feeds- C-LP, C-CP, X-CP, Ku-LP, Ka-CP, Ka-LP
Positioner Type- Case-based Pack-in-the-Box
Drive System- Patented Roto-Lok Positioner
Mount Geometry- Elevation over Azimuth
Polarization- Rotation of Feed
Global Connectivity
The ultra-lightweight but rugged, rigid and easily deployed AvL range of motorized auto acquisition flyaway antennas are designed for worldwide operation in C, Ku, X and Ka-band for military and commercial applications. The antennas comprise segmented carbon fiber reflector, AvL AvL Cable Drive cable drive motorized positioner and antenna controller. AvL antennas provide extremely light weight rugged flight case packaged systems with unrivaled stiffness for optimum performance even under high wind load conditions.
Precision RF Feed
The prime focus offset optics with global mode matched feed coupled with the excellent profile accuracy and surface accuracy achieved with the unique carbon fiber reflectors result in unrivaled sidelobe and cross polar performance. The palletized C, X, Ku and Ka feed configurations allow quick, easy and precise interchange between frequency bands in the field. The unmatched performance and reliability of the AvL fully motorized positioners employing the zero backlash AvL Cable Drive cable drive system guarantee optimum pointing accuracy and pointing stability.
Simple Deployment
No maintenance is required. These antennas can be deployed by one person in less than 15 minutes and the one button auto acquisition controller locates and precisely aligns the antenna in all three axis (azimuth, elevation AND polarization) to the required satellite. Controller options are also available for tracking requirements. The rugged flight cases are designed to provide protection even in the most demanding environments. AvL’s experience with antennas providing reliable operation throughout the world and in the climatic extremes with military, broadcast and disaster relief organizations is second to none.
AVL Technologies Model 2460 / 2020 Flyaway Antenna System |
|
|
Reflector Type |
2.4 Meter, 9 piece Carbon Fiber |
|
Optics |
Offset, Prime Focus, 0.8 F/D |
|
Interchangeable Feeds |
C-LP, C-CP, X-CP, Ku-LP, Ka-CP, Ka-LP |
|
Positioner |
Case-based Pack-in-the-Box |
|
Az/El Drive System |
Patented Roto-Lok® Positioner |
|
Mount Geometry |
Elevation over Azimuth |
|
Polarization Adjustment |
Rotation of Feeds |
Mechanical |
|
|
Travel |
|
|
Speed |
|
|
Motors |
24V DC variable speed, constant torque |
|
Emergency Axes Drives |
Handcranks on Az and El; Knob on Pol |
Stowed Configuration |
Five or six rugged, weather-resistant plastic cases |
|
Positioner |
26" x 24" x 30", 170 lbs. |
|
Outriggers/Feed Boom/Ku or Ka feed |
71" x 18" x 19", 110 lbs. (includes Ku or Ka feed) |
|
Reflector (2) |
38" x 38" x 22", 120 lbs. |
|
Additional Feeds |
43" x 28" x 21", 70 lbs. typical, dependent on feed options selected |
|
Set-up Time |
Less than 15 minutes |
|
RF Interface |
|
|
Electrical Interface |
Connector at positioner base |
Environmental |
|
|
Wind |
|
|
Pointing Loss in Wind |
|
|
Temperature |
|
C-Band (Standard) Feed |
|
|
Frequency |
|
|
Polarization |
Linear or circular options |
|
Gain (Midband) |
|
|
VSWR |
|
|
Beamwidth (-3 dB) |
|
|
Radiation Pattern Compliance |
FCC 25.209, ITU-R S.580-6 IESS 207 |
|
Antenna Noise Temp @ 20° El |
49° K |
|
G/T with 20°K LNB, Midband, clear horizonh |
19.5 dB/° K |
|
Circular Axial Ratio |
|
|
Linear Cross Pol Isolation (in Ptg. Cone) |
|
|
Feed Port Isolation - Tx to Rx |
|
|
Power Handling Capability |
1000 watts per port |
X-Band Feeds |
|
|
Frequency |
|
|
Polarization |
RHCP or LHCP |
|
Gain (Midband) |
|
|
VSWR |
|
|
Beamwidth (-3 dB) |
|
|
Radiation Pattern Compliance |
MIL-STD-188-164A |
|
Antenna Noise Temp @ 20° El |
59° K |
|
G/T with 55°K LNB, Midband, clear horizon |
22.7 dB/° K |
|
Circular Axial Ratio |
|
|
Feed Port Isolation - |
|
|
Power Handling Capability |
1000 watts per port |
Ku-Band (DBS bands available on request) |
|
|
Frequency |
|
|
Polarization |
Orthogonal Linear, Optional Co-pol Linear |
|
Gain (Midband) |
|
|
Antenna Noise Temperature @ 20° El |
61° K |
|
G/T with 50°K LNB, Midband |
26.5 dB/° K |
|
Radiation Pattern Compliance |
FCC 25.209, ITU-R S.580-6, IESS 208 |
|
Cross Pol Isolation |
|
|
Power Handling Capability |
500 watts per port |
Ka-Band Feeds |
|
|
Frequency Range (GHz) |
|
|
Polarization |
Circular or Linear |
|
Gain (Midband military) (dBi) |
|
|
Ant Noise Temperature @ 20° |
104° K |
|
G/T with 100°K LNB, 20.7 GHz |
29.0 dB/° K |
|
Radiation Pattern Compliance |
FCC 25.209, MIL-STD-188-164A |
|
Axial Ratio (CP only, within pointing cone) |
|
|
Power Handling Capability |
250 watts per port |
Controller |
|
|
Auto-Acquisition |
Fully Automatic Satellite Acquisition, Peaking, and Cross-Pol Adjustment with GPS, Compass, Level Inputs and auto compensation with Entry of Desired Satellite. Select 10"x9"x2.5" power supply/handheld controller or 1 RU P.S. controller or 2 RU controller option. With 2 RU additional options include inclined orbit tracking, resolvers, hand-held remote, remote GUI, waveguide switch control. A 2 RU jog controller is also offered. |
|
Input Power |
95-250VAC auto-ranging or 2 RU option 110/240 VAC, 1 phase, 50/60 Hz, 6/3 A peak, 1 A continuous |
|
Positioning Accuracy |
± 0.2° |
Quad Satellite Band Applications- Secure Communications, DSNG, Military Operations
