AVL Technologies 2060/2020 Quad Band Flyaway Antenna System is available to buy in increments of 1

2.0 Meter, Quad-Band, Carbon Fiber, Lightweight

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

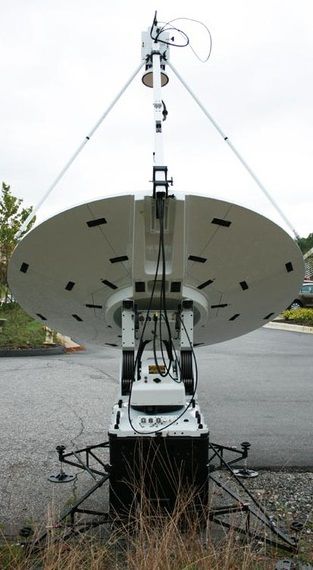

2060/2020 Multi-Band Transportable VSAT

AVL Tech 2060/2020 2.0M Quad Band Motorized Autopointing Flyaway VSAT antenna system transmits and receives on C-band, Ku-band, X-band, and Ka-Band frequencies which make this system highly adaptable to the ever changing needs of todays satcom requirements.

Key Features

Reflector Type 2.0M 9 Segment AvL Carbon Fiber

Optics Offset, Prime Focus, 0.8 F/D Interchangeable

Feeds C LP or CP, X CP, Ku LP

Positioner Case-based Pack-in-the-Box Az/El

Drive System Patented Roto-Lok

Positioner Mount Geometry Elevation over Azimuth

Polarization Adjustment Motorized Rotation of Linear Feeds

Technical Specifications

Model 2060 / 2020 PIB FLYAWAY ANTENNA
Reflector Type	2.0M 9 segment AvL carbon fiber
Optics	Offset, Prime Focus, 0.8 F/D
Interchangeable Feeds	C LP or CP, X CP, Ku LP, Ka LP or CP
Positioner	Case-based Pack-in-the-Box
Az/El Drive System	Patented Roto-Lok® Positioner
Mount Geometry	Elevation over Azimuth
Polarization Adjustment	Motorized Rotation of Linear Feeds
Mechanical
Travel Azimuth Elevation (Operational) Polarization (LP Feeds)	±200° 5°-90° with ±200° Az Travel 0°-90° with ±15° Az Travel ±95° Adjustable within <1°
Speed Slewing/Deploying Peaking Tracking	2°/second Az; 1°/second El 0.2°/second 0.1°/second
Emergency Drive	Hand crank on Az, El; hand knob on Pol
Interfaces HPA Mounting RF Electrical	Feed boom or behind reflector (additional CFE case or optional case required) Coax (2) at base, Flex Waveguide from feed with groove 25 ft. Cable with Connectors for Controller
Set-up Time	Less than 30 minutes
Environmental
Wind Operational Survival	30 mph gusting to 45 mph (Anchoring required when gusts exceed 35 mph) 80 mph (With anchoring in zenith stowed position)
Pointing Loss	1 dB typical, 2 dB max in operational wind (Ku-band)
Temperature Operational Survival	+14° to 125°F (-10° to 52°C) -40° to 140°F (-40° to 60°C)
Control System
Auto-Acquisition	One-button deploy with auto acquisition, peaking, and cross-pol adjustment using GPS, compass, and level-sensor inputs; certified for auto-commission on certain satellite systems
Tracking	Inclined orbit step-tracking with CFE or optional beacon receiver
Operator Interface	Front panel or Hand Held Remote or Remote PC options
Positioning Accuracy	± 0.2°
Input Power	Single phase 110/240 60/50 Hz 10 A peak, 2 A continuous
C-Band Feed
Frequency Receive Transmit	3.625-4.20 Ghz 5.85 -6.425 Ghz
Polarization	Linear or circular options
Gain (Midband) Receive Transmit	36.4 dBi 40.3 dBi
Antenna Noise Temperature @ 20° El	49° K
G/T with 20°K LNB, Midband	17.9 dB/° K
Radiation Pattern Compliance	IESS-601 and FCC 47CFR25.209
Circular Axial Ratio (within Pointing Cone) Receive Transmit	2.3 dB 1.3 dB
Linear Cross Pol Isolation (in Ptg. Cone) Receive Transmit	>30 dB >30 dB
Power Handling Capability	1000 watts per port
X-Band Feed
Frequency Receive Transmit	7.25 7.75 Ghz 7.9 - 8.4 Ghz
Polarization	Circular RHCP or LHCP
Gain (Midband) Receive Transmit	42.0 dBi 42.8 dBi
Antenna Noise Temperature @ 20° El	50° K
G/T with 55°K LNB, Midband	21.7 dB/° K
Radiation Pattern Compliance	MIL - STD - 188-164A
Axial Ratio within Tracking Cone Receive Transmit	1.214 dB 2.0 dB
Power Handling Capability	1000 watts per port
Ku-Band Feeds
Frequency Receive Transmit	10.95-12.75 Ghz 13.75-14.5 Ghz
Polarization	Orthogonal Linear, Optional Co-pol Linear
Gain (Midband) Receive Transmit	46.0 dBi 47.6 dBi
Antenna Noise Temperature @ 20° El	57° K
G/T with 50°K LNB, Midband	25.7 dB/° K
Radiation Pattern Compliance	IESS-601 Std. G and FCC 47CFR25.209
Power Handling Capability	500 watts per port
Ka-Band Feeds
Polarization	Circular or Linear
Frequency Range (GHz) Receive Transmit	20.2 - 21.2 (military) or 17.7 - 20.2 (commercial) 30.0 - 31.0 (military) or 27.5 - 30.0 (commercial)
Gain (Midband military) (dBi) Receive Transmit	50.6 53.8
VSWR	1.30:1
Beamwidth (-3 dB) Receive Transmit	0.5° 0.3°
Radiation Pattern Compliance	FCC 25.209, MIL-STD-188-164A
Ant Noise Temperature @ 20° El, midband	106° K
G/T with 100° LNB, midband, clear horizon	27.5 dB/° K
Axial Ratio (CP only, within pointing cone) Receive Transmit	1.5 dB 1.0 dB
Feed Port Isolation - TX to RX (dB) Receive Transmit	30 80 (includes filter)
Power Handling Capability	250 watts per port
