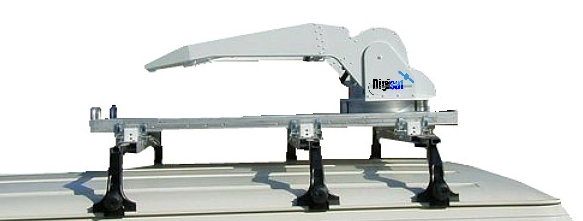

AVL Technologies 1210K Motorized Vehicular Mounted VSAT SNG/DSNG Antenna System
1.2m, Ku-Band wide band feed, excellent for SNG and remote satellite internet access applications
1210K Series Multi-Band MVSAT

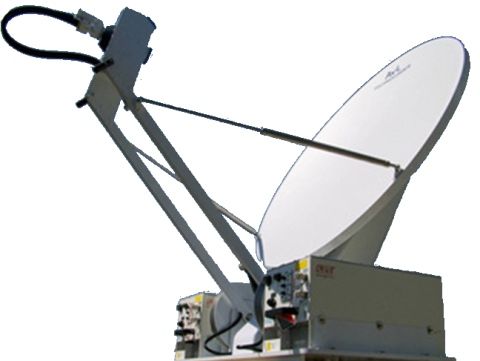

AVL Technologies 1210K Ku-Band Motorized Vehicular Mounted VSAT SNG/DSNG Antenna System consists of a 1.2 meter precision molded carbon fiber reflector and a one touch auto acquire drive system. The AVL Technologies 1210K Motorized Vehicular Mounted SNG/DSNG Antenna System is a robust package that's perfect for SNG or mobile internet applications.
Features
Reflector- 1.2 meter AvL Carbon-Fiber
Feed- Precision Corrugated Horn
Optics- Offset, Prime Focus, .8 f/d
Drive System- Patented Roto-Lok Positioner
Mount Geometry- Elevation over Azimuth Polarization
Adjustment- Rotation of Feed
Multiple Applications
The ultra-lightweight but rugged, rigid and easily deployed AvL range of motorized auto acquisition flyaway antennas are designed for worldwide operation in Ku-band for commercial applications. The antennas comprise segmented carbon fiber reflector, AvL AvL Cable Drive cable drive motorized positioner and antenna controller. AvL antennas provide extremely light weight rugged flight case packaged systems with unrivaled stiffness for optimum performance even under high wind load conditions. The prime focus offset optics with global mode matched feed coupled with the excellent profile accuracy and surface accuracy achieved with the unique carbon fiber reflectors result in unrivaled sidelobe and cross polar performance.
Full Auto Acquisition Operation
The palletized Ku feed configurations allow quick, easy and precise interchange between frequency bands in the field. The unmatched performance and reliability of the AvL fully motorized positioners employing the zero backlash AvL Cable Drive cable drive system guarantee optimum pointing accuracy and pointing stability. No maintenance is required. These antenna can be deployed by one person in less than 15 minutes and the one button auto acquisition controller locates and precisely aligns the antenna in all three axis (azimuth, elevation AND polarization) to the required satellite. Controller options are also available for tracking requirements. The rugged flight cases are designed to provide protection even in the most demanding environments. AvL’s experience with antennas providing reliable operation throughout the world and in the climatic extremes with military, broadcast and disaster relief organizations is second to none.
AVL Model 1210K 1.2 Meter DSNG System Antenna |
|
Reflector |
1.2 meter AvL Carbon-Fiber |
Feed |
Precision Corrugated Horn |
Optics |
Offset, Prime Focus, .8 f/d |
Drive System |
Patented Roto-Lok Positioner |
Mount Geometry |
Elevation over Azimuth |
Polarization Adjustment |
Rotation of Feed |
Electrical RF |
|
Frequency |
|
Gain |
|
VSWR |
|
Beamwidth (degrees) |
|
First Sidelobe Level (Typical) |
|
Radiation Pattern Compliance |
>3 dB better than FCC §25.209, ITU-R S.528.5 |
Antenna Noise Temperature |
43° K at 30° Elevation |
Polarization |
Linear Orthogonal standard, Optional Co-pol |
Power Handling Capacity |
0.50 KW per port |
Cross-Pol Isolation |
|
Feed Port Isolation - TX to RX |
75 dB |
Satellite System Compliance |
FCC, Intelsat, Loral Skynet |

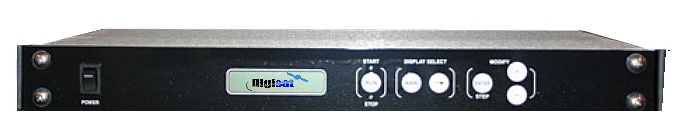

Controllers |
|
Standard |
Three-axis Jog Control & Display with Auto-stow |
Optional Upgrades |
|
Semi-automatic Operation |
Drive to calculated position based on operator entered |
Automatic Operation |
Drive to calculated position based on auto GPS and Flux- Gate Compass data and satellite peaking with LNB signal |
Auto-Acquisition |
One-button acquisition of selected satellite including |
Size |
Two Rack Units for Semi-automatic & Automatic Controllers Single Rack Unit for Auto-acquisition |
Input Power |
110/240 VAC, 1 ph, 50/60 Hz, 6/3A peak, 1A continuous |
Mechanical |
|
Az/El Drive System |
Patented Roto-Lok Cable Drive System |
Polarization Drive System |
Non back-driving Worm Gear |
Travel |
|
Speed |
|
Motors |
24V DC Variable Speed, Constant Torque |
RF Interface |
|
Electrical Interface |
25 ft. (8 m) Cable with Connectors for Controller |
Manual Drive |
Handcrank on Az and El Axii, Leads from 12VDC Pol Motor |
Weight |
115 to 125 lbs. (52 to 57 kg) depending on options selected |
Stowed Dimensions |
74 L x 49 W x 17 H inches (188 L x 125 W x 43 H cm) |
Environmental |
|
Wind |
|
Pointing Loss in Wind |
|
Temperature |
|
VSAT Trailers, Mobile Command Centers, Communications Restoral Services, News Gathering Services, Video Broadcasting
