Be the first to review this product

SKU

1812K

AVL Technologies 1812K 1.8M Global Motorized SNG Antenna System is available to buy in increments of 1

1.8m, Ku-Band wide band feed, excellent for SNG and remote satellite internet access applications

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1812K 1.8 Meter Worldwide SNG VSAT

AVL Technologies 1812K 1.8M Global Motorized SNG Antenna System is very impressive in that it offers a global mode matched feed for international Tx/Rx satellite applications. The AVL 1.8M 1812K Antenna System also offers a precision one piece carbon fiber reflector that's ideal for harsh environments.

avl antenna vehicular mount diagram

Features

Reflector- 1.8 meter AvL Carbon Fiber

Feed- Global Mode Matched

Optics- Offset, Prime Focus, .8 f/d

Az/El Drive System- Patented Roto-Lok Positioner

Mount Geometry- Elevation over Azimuth

Polarization Adjustment- Rotation of Feed

Versatility

The ultra-lightweight but rugged, rigid and easily deployed AvL range of motorized auto acquisition flyaway antennas are designed for worldwide operation in C, Ku, X and Ka-band for military and commercial applications. The antennas comprise segmented carbon fiber reflector, AvL AvL Cable Drive cable drive motorized positioner and antenna controller. AvL antennas provide extremely light weight rugged flight case packaged systems with unrivaled stiffness for optimum performance even under high wind load conditions.

High Gain

The prime focus offset optics with global mode matched feed coupled with the excellent profile accuracy and surface accuracy achieved with the unique carbon fiber reflectors result in unrivaled sidelobe and cross polar performance. The palletized C, X, Ku and Ka feed configurations allow quick, easy and precise interchange between frequency bands in the field. The unmatched performance and reliability of the AvL fully motorized positioners employing the zero backlash AvL Cable Drive cable drive system guarantee optimum pointing accuracy and pointing stability.

Easy Operation

No maintenance is required. These antenna can be deployed by one person in less than 15 minutes and the one button auto acquisition controller locates and precisely aligns the antenna in all three axis (azimuth, elevation AND polarization) to the required satellite. Controller options are also available for tracking requirements.

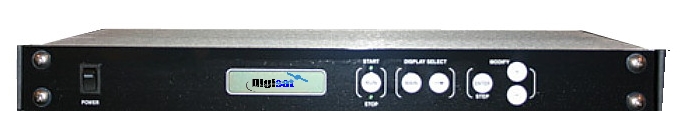

1812K Auto Control System

Simple Mobility

The rugged flight cases are designed to provide protection even in the most demanding environments. AvL’s experience with antennas providing reliable operation throughout the world and in the climatic extremes with military, broadcast and disaster relief organizations is second to none.

Technical Specifications

AVL Model 1812K 1.8 Meter Vehicle SNG System Antenna
Reflector	1.8 meter AvL Carbon-Fiber
Feed	Global Mode Matched
Optics	Offset, Prime Focus, .8 f/d
Az/El Drive System	Patented Roto-Lok Positioner
Mount Geometry	Elevation over Azimuth
Polarization Adjustment	Rotation of Feed
Electrical RF
Frequency Receive Transmit	10.95-12.75 GHz 13.75-14.5 GHz
Gain (Midband) 2-port Receive Transmit 4-port Receive Transmit	45.3 dBi 46.7 dBi 45.2 dBi 46.6 dBi
VSWR Receive Transmit	1.30:1 1.30:1
Beamwidth (degrees) -3 dB (Optional Insat) Receive Transmit -15 Receive Transmit	0.95° 0.79° 1.99° 1.66°
First Sidelobe Level (Typical) Receive Transmit	-19 dB -22 dB
Radiation Pattern Compliance	FCC §25.209, ITU-R S.528.5
Antenna Noise Temperature	50° K at 20° Elevation
Polarization	Linear Orthogonal Standard, Optional Co-pol
Power Handling Capacity	1.5 KW both Ports
Cross-Pol Isolation On-Axis (minimum Receive Transmit Off-Axis (within 1 dB BW) Receive Transmit Off-Axis (peak) Receive Transmit	35 dB 40 dB 27 dB 35 dB 25 dB 30 dB
Feed Port Isolation - TX to RX	85 dB
Satellite System Compliance	FCC, Intelsat, Eutelsat, PanAmSat, SES Americom, etc.
Control
Standard	Three-axis Jog Control & Display with Auto-stow
Upgrades
Semi-automatic Operation	Drive to calculated position based on operator entered vehicle location, heading, plus satellite (longitude or listed)
Automatic Operation	Drive to calculated position based on auto GPS and Flux- Gate Compass data and satellite peaking with LNB signal
Auto-acquisition	One-button acquisition of selected satellite including peaking and optimization of cross-pol (certified for autocommissioning on most satellite services)
Size	Two Rack Units for Semi-automatic & Automatic Controllers Single Rack Unit for Auto-acquisition
Input Power	110/240 VAC, 1 ph, 50/60 Hz, 8/4A peak, 1A continuous
Mechanical
Az/El Drive System	Patented Roto-Lok® Cable Drive System
Polarization Drive System	Non back-driving Worm Gear
Travel Azimuth Elevation Mechanical Electrical Polarization	270° for 2-port or 240° for 4-port Standard, 400° Optional for 2-port or Feed Boom Mounted HPA True elevation readout from calibrated inclinometer 0° to 90° of Reflector Boresight Standard limits at 5° to 65° (CE Approval) or 5° to 90° ±95° for 2-port and 3-port Feeds ±50° for 2-port Wideband and 4-port feeds
Speed Slewing/Deploying Peaking	2°/second 0.5°/second
Motors	24V DC Variable Speed, Constant Torque
RF Interface HPA Mounting Axis Transition Waveguide Coax	Feed Boom or Rear of Reflector, or inside Truck Twist-Flex or Rotary Joints WR 75 Cover Flange at Interface Point RG59 run from feed to base plus 25 ft. (8 m)
Electrical Interface	25 ft. (8 m) Cable with Connectors for Controller
Manual Drive	Handcrank on Az and El Axii, Leads from 12VDC Pol Motor
Weight	300 lbs. (136 kgs)
Stowed Dimensions	104 L x 74 W x 22 H inches (263 L x 189 W x 56 H cm)
Environmental
Wind Survival Deployed Stowed Operational	65 mph (128 kmph) 100 mph (192 kmph) 45 mph (72 kmph), Gusts to 60 mph (97 kmph)
Pointing Loss in Wind 20 mph (32 kmph) 30 Gusting to 45 mph	0.1 dB RMS, 0.07 degrees Typical 0.5 dB RMS, 0.16 degrees Typical
Temperature Operational Survival	+5° to 125°F (-15° to 52°C) -40° to 140°F (-40° to 60°C)
