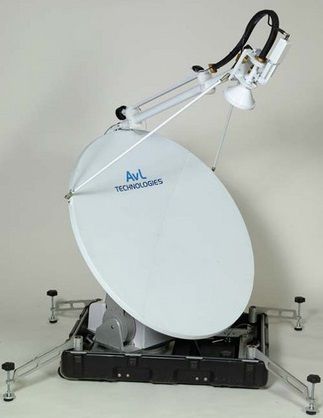

AVL Technologies 1012K DSNG Carbon Fiber Global Antenna is available to buy in increments of 1

C-Band, Ku-Band, X-band, or Ka-Band capable, great for both military and commercial applications

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1012K Series Compact VSAT

AVL Technologies 1012K DSNG Carbon Fiber Global Antenna is Ultra-lightweight but rugged and easily deployed, the AvL range of motorized auto acquisition flyaway antennas are designed for worldwide operation. Systems are available in C, Ku, X and Ka-band for military and commercial applications. The antennas comprise segmented carbon fiber reflector, AvL AvL Cable Drive cable drive motorized positioner and antenna controller.

Technical Specifications

MODEL 1012K 1.0M Global Flyaway VSAT System
Reflector	1 Meter Carbon Fiber
Feed	Mode-matched with Rotary Joint
Optics	Offset, Prime Focus, .8 f/d
Drive System	Patented Roto-Lok® Positioner
Mount Geometry	Elevation over Azimuth
Polarization Adjustment	Rotation of Feed
Electrical RF
Frequency Receive Transmit	10.95-12.75 GHz 13.75-14.5 GHz
Gain Receive Transmit	39.8 dBi 41.5 dBi
VSWR Receive Transmit	1.30:1 1.30:1
Beamwidth (degrees) -3 dB Receive Transmit -10 dB Receive Transmit	1.6° 1.4° 2.8° 2.3°
First Sidelobe Level (Typical) Receive Transmit	-22 dB -25 dB
Radiation Pattern Compliance	FCC §25.209, ITU-R S.528.5
Antenna Noise Temperature	46° K at 30° Elevation
Polarization	Orthogonal standard, Optional Co-pol
Power Handling Capacity	0.5KW per port
Cross-Pol Isolation On-Axis (minimum) Receive Transmit Off-Axis (within 1 dB BW) Receive Transmit Off-Axis (peak) Receive Transmit	35 dB 35 dB 30 dB 35 dB 22 dB 30 dB
Feed Port Isolation - TX to RX	75 dB
Satellite System Compliance	Eutelsat, Intelsat, Asiasat, etc.
Controllers
Standard	Three-axis Jog Control & Display with Auto-stow
Optional Upgrades
Semi-automatic Operation	Drive to calculated position based on operator entered vehicle location, heading, plus satellite (longitude or listed)
Automatic Operation	Drive to calculated position based on auto GPS and Flux- Gate Compass data and satellite peaking with LNB signal
Auto-Acquisition	One-button acquisition of selected satellite including peaking and optimization of cross-pol (certified for autocom- missioning on select services)
Size	Two Rack Units for Semi-automatic & Automatic Controllers Single Rack Unit for Auto-acquisition
Input Power	110/240 VAC, 1 ph, 50/60 Hz, 6/3A peak, 1A continuous
Mechanical
Az/El	Patented Roto-Lok® Cable Drive System
Travel Azimuth Elevation Mechanical Electrical Polarization	400° True elevation readout from calibrated inclinometer 0° to 90° of Reflector Boresight Standard limits at 5° to 65° (CE Approval) or 5° to 90° ±95° for 2-port and 3-port Feeds
Speed Slewing/Deploying Peaking	5°/second 0.5°/second
Motors	24V DC Variable Speed, Constant Torque
RF Interface HPA Mounting Axis Transition Waveguide Coax	Feed Boom or Rear of Reflector Twist-Flex WR 75 Flex from feed RG59 run from feed to base plus 25 ft. (8 m)
Electrical Interface	25 ft. (8 m) Cable with Connectors for Controller
Manual Drive	Handcrank on Az and El Axii,
Weight	115 to125 lbs. (52 to 57 kg) depending on options selected
Stowed in Cowling Dimensions	80 L x 55 W x 15 H inches (204 L x 140 W x 39 H cm)
Environmental
Wind Survival Deployed Stowed Operational	75 mph (121 kmph) 100 mph (161 kmph) 45 mph (72 kmph), Gusts to 60 mph (97 kmph)
Pointing Loss in Wind 20 mph (32 kmph) 30 Gusting to 45 mph	0.2 dB, 0.2 degrees Typical 0.8 dB, 0.4 degrees Typical
Temperature Operational Survival	+5° to 125°F (-15° to 52°C) -40° to 140°F (-40° to 60°C)
