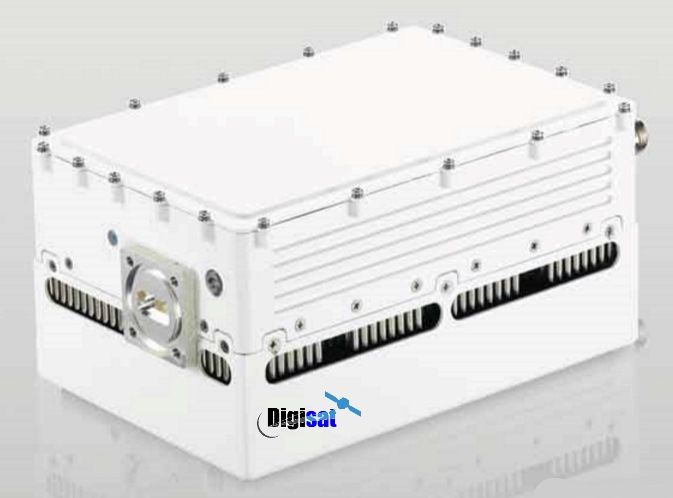

Agilis Satcom ALB129 20W Compact SOTM Ku-Band Block Upconverter (BUC)
Autoranging 38 to 60 Volts DC power supply, Waterproof to IP65 standard, ideal for maritime, mobile, SOTM applications
ALB-129 20 Watt Ku-BUC
Agilis Satcom ALB129 20W Compact SOTM Ku-Band Block Upconverter (BUC) is an outdoor RF transmitter for satellite communication systems that's ideal for mobile, flyaway SNG, and satcom on the move (SOTM) applications where compact equipment is a must. The ALB129 20 Watt BUC is field proven under harsh environment conditions, and can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity.
High Efficiency
Designed to be mounted on the feed horn, the ALB129 series 20 watt BUC has “Best in Class” efficiency and “lowest power consumption” drawing less than 250W. The unit works on a wide range DC power supply of 38V to 60V. Innovative and efficient thermal design makes this BUC one of the smallest, robust, reliable and rugged enough to withstand outdoor conditions in the industry.
The unit can be configured to work in 1:1 redundant mode by adding on a simple redundancy option to the basic unit.
Features
Low power consumption- 20W RF output power and 250W power consumption
Available for Ku-Band frequencies from 12.75 to 14.80 GHz
Direct antenna mount
low spurious
RoHS compliant
Uber Wide operating temperature range from -40C to +60C
Super phase noise characteristics.
SCPC VSAT Uplink Systems, iDirect TDMA Networks, Video Streaming, Telemedicine via Satellite and all lower power output Ku-Band Satcom applications.
