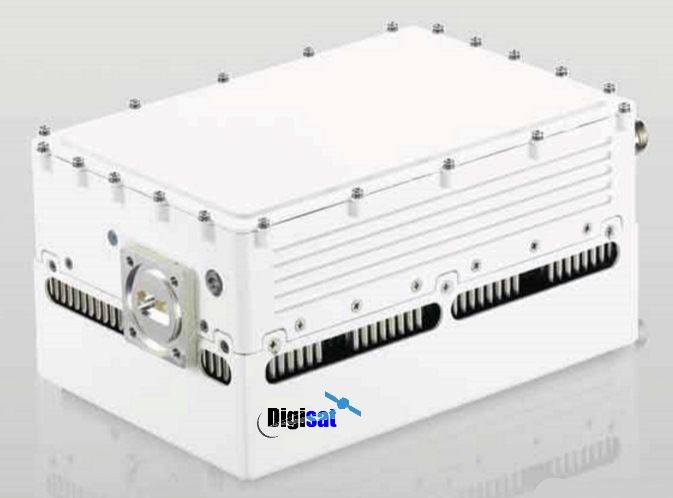

Agilis Satcom ALB129 25W Compact SOTM Ku-Band Block Upconverter (BUC)
Conforms to IP65 standards, exceptional for all Ku-Band VSAT applications
ALB 129 25 Watt Ku BUC
Agilis Satcom ALB129 25W Compact SOTM Ku-Band Block Upconverter (BUC) is an outdoor RF transmitter for satellite communication systems that's ideal for mobile, flyaway SNG, and satcom on the move (SOTM) applications where compact equipment is a must. The ALB129 25 Watt BUC is field proven under harsh environment conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity.
Versatile Integration
Designed to be mounted directly on the feed support, the ALB129 series 25 watt BUC has “Best in Class” efficiency and “lowest power consumption” drawing less than 250W. The unit works on a wide range DC power supply of 38V to 60V. Innovative and efficient thermal design makes this BUC one of the smallest, robust, reliable and rugged enough to withstand outdoor conditions in the industry. The unit can be configured to work in 1:1 redundant mode by adding on a simple redundancy option to the basic unit.
Features
Low power consumption- 25W RF output power and 250W power consumption
Available for all Ku-Band frequencies from 12.75 to 14.80 GHz
Direct antenna mount
Ultra Low spurious emissions
RoHS compliant
Wide operating temperature range from -40C to +60C
Superb phase noise characteristics.
iDirect VSAT Hubs, Enterprise Satellite Internet Access, Disaster Communications Networks and all Ku-Band VSAT systems.
