Norsat 9000XAF-4 Ka-Band External Reference LNB (18.2-19.2 GHz) F Connector

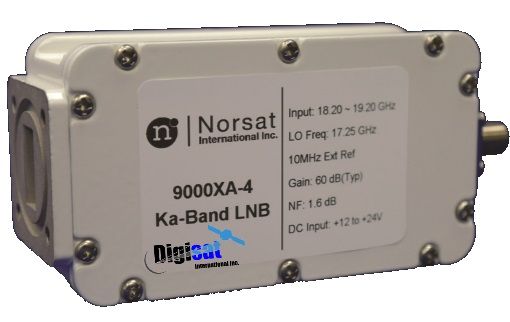

9000XAF-4 Ka-Band External Reference LNB
The Norsat 9000XAF-4 Ka-band externally referenced LNBs offer improved LO stability allowing users to reliably receive a narrower band transmission from Ka satellite networks. The 9000XAF-4 series LNB offers input frequencies from 18.2 - 19.2 GHz, L.O. 17.25, IF: 950 - 1950 MHz. Additional frequencies are available in five separate sub-bands:
.
L.O. Stability: Phase Locked to External Reference
Input: (waterproof) WR-42 waveguide
Output: F Connector (75 ohm)
- Noise Figure 1.6 dB max
- LO Stability Phase Locked to External Reference
- Phase Noise -70 dBc at 1 kHz (Depends on External Reference) -80 dBc at 10 kHz -95 dBc at 100 kHz
- Gain 60 dB typ., 55 dB min. @ full frequency band
- Output P1dB +5 dBm min
- DC Power +12V to +24V DC
- Current 400 mA
- Input (waterproof) WR-42 waveguide
- Output (waterproof) F-connector (75 ohm) N (Optional) (50 ohm)
- Dimensions 118 x 60 x 45 (L x W x H)
- Weight 450 g
- Operating Temperature -30 ~ +60˚C
- Storage Temperature -40 ~ +80˚C
- Ext Ref Frequency 10 MHz (sine-wave), -5 to +5 dBm
Frequency Bands 9000XA-4 9000XB-4 9000XC-4 9000XD-4 9000XE-4
Input Frequency 18.2 ~ 19.2 GHz 19.2 ~ 20.2 GHz 20.2 ~ 21.2 GHz 21.2 ~ 22.2 GHz 17.2 ~ 18.2 GHz
LO Frequency 17.25 GHz 18.25 GHz 19.25 GHz 20.25 GHz 16.25 GHz
IF Frequency 950 ~ 1950 MHz 950 ~ 1950 MHz 950 ~ 1950 MHz 950 ~ 1950 MHz 950 ~ 1950 MHz
