Evertz Microsystems 7707IFTA 70/140Mhz IF Fiber Transmitter

7707IFTA 70/140Mhz IF Fiber Transmitter

The Evertz 7707IFTA is a VistaLINK capable fiber optic transmitter for 70/140MHz IF signals. The IFTA accepts one 70/140MHz coaxial input and provides a fiber optic output signal at 1310nm, 1550nm, CWDM or DWDM wavelengths. An additional electrical output is also provided for monitoring or added signal distribution. Monitoring and control of card status and parameters is provided locally at the card edge and remotely via VistaLINK.

The 7707 series occupies one card slot and can be housed in the 1RU 7801FR frame which holds up to four single or two dual slot modules, the 3RU 7800FR frame which has a 15 slot capacity, the portable 3RU 350FR frame which has a 7 slot capacity, or a standalone enclosure which holds a single module.

Features

• 30-200MHz bandwidth
• Wide dynamic range RF input (-5 to -65dBm)
• Protocol transparent - transmits all video, audio and data modulation formats
• Supports manual and automatic gain control on IF input
• Additional electrical output for monitoring or distribution
• Available with BNC or F-Type connector options
• Available with output wavelengths of 1310nm, 1550nm, CWDM (ITU-T G.694.2 compliant) and DWDM (ITU-T G.694.1 compliant)
• Supports single-mode and multi-mode fiber optic cable
• Available in SC/PC, FC/PC and APC connector options
• Fully hot swappable from front of frame
• Comprehensive signal and status monitoring via four digit card edge display or remotely through SNMP and VistaLINK capability

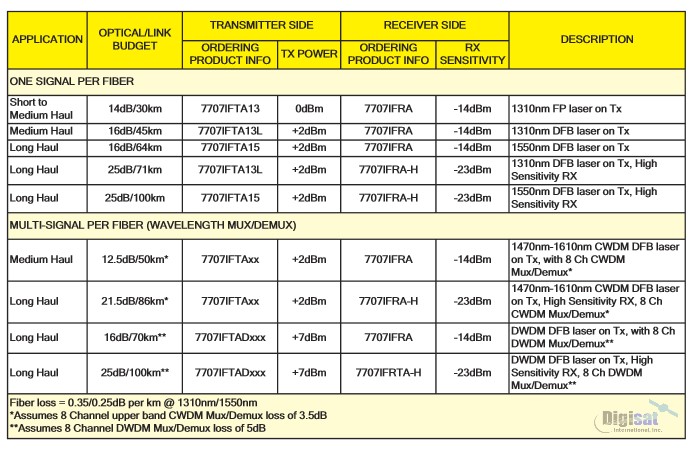

Ordering Information

70/140Mhz IF Fiber Transmitter

7707IFTA13-1310nm FP Laser

7707IFTA13L-1310nm DFB Laser

7707IFTA15-1550nm DFB Laser

CWDM & DWDM (Ordering Information)

7707IFTAxx-CWDM DFB laser

7707IFTADxxx-DWDM DFB laser

Ordering Options

• 75Ω I/O Impedance ships standard

• Angle polished fiber connectors (APC) are available for model 7707IFTA13 only

• Rear plate and fiber connector must be specified at time of order - eg: [model]+SC+3RU

+50-50Ω I/O Impedance

Connector Suffix

+SC                  SC/PC

+FC                   FC/PC

+AP+SC            SC/APC (Angle Polished)

+AP+FC            FC/APC (Angle Polished)

+F75                 75Ω F-Type

Rear Plate Suffix

+1RU                1RU rear plate for use with 7701FR Multiframe
+SA                   Standalone Enclosure Rear Plate
+3RU                 3RU rear plate for use with 350FR, 7700FR-C or 7800FR Multiframes

Enclosures

350FR               Portable Multiframe which holds 7 single slot modules

7700FR-C         3RU Multiframe which holds 15 single slot modules

7800FR             3RU Multiframe which holds 15 single slot modules

7701FR             1RU Multiframe which holds 3 single slot modules

S7701FR          7700 Series Standalone Enclosure

Patch Cable

CB-FP1M-SCPC

Single mode fiber cable, 1m, SC/PC male termination

CB-FP1M-STPC

Single mode fiber cable, 1m, ST/PC male termination

CB-FP5M-SCPC

Single mode fiber cable, 5m, SC/PC male termination

CB-FP5M-STPC

Single mode fiber cable, 5m, ST/PC male termination

CB-FP10M-SCPC

Single mode fiber cable, 10m, SC/PC male termination

CB-FP10M-STPC

Single mode fiber cable, 10m, ST/PC male termination
