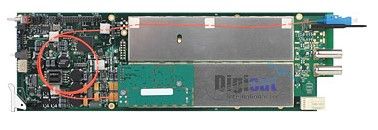

Evertz Microsystems 7707IFRA 70/140Mhz IF Fiber Receiver

7707IFRA 70/140Mhz IF Fiber Receiver

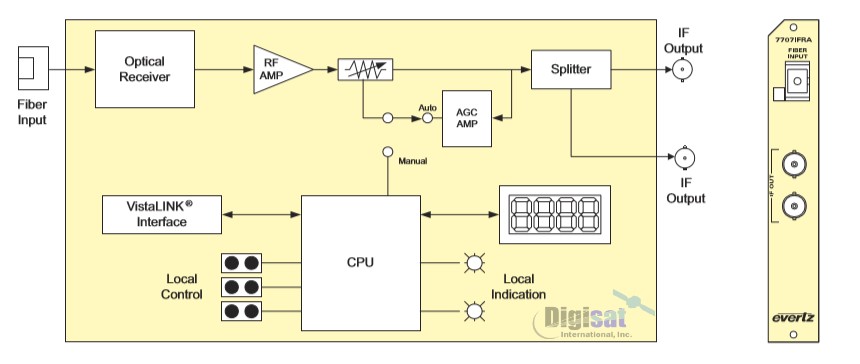

The Evertz 7707IFRA is a VistaLINK capable fiber optic receiver for 70/140MHz IF signals. The IFRA series accepts a fiber optic input from the companion IFTA and provides two 70/140MHz IF output signals. Monitoring and control of card status and parameters is provided locally at the card edge and remotely via VistaLINK capability.

The 7707 occupies one card slot and can be housed in the 1RU 7801FR frame which holds up to four single or two dual slot modules, the 3RU 7800FR frame which has a 15 slot capacity, the portable 3RU 350FR frame which has a 7 slot capacity, or a standalone enclosure which holds a single module.

Features

• 30-200MHz bandwidth
• Protocol transparent - receives all video, audio and data modulation formats
• Supports manual and automatic gain control (AGC)
• Two IF outputs for extra signal distribution or monitoring functions
• IF output power independent of optical loss (within AGC range)
• Available with BNC or F-Type connector options
• Wide range optical input (1270nm to 1610nm)
• Supports single-mode and multi-mode fiber optic cable
• Available in SC/PC, FC/PC and APC connector options
• Fully hot swappable from front of frame
• Comprehensive signal and status monitoring via four digit card edge display or remotely through SNMP and VistaLINK® capability

Ordering Information

7707IFRA - 70/140Mhz IF Fiber Receiver

7707IFRA-H - 70/140Mhz IF High Sensitivity Fiber Receiver

7707IFRA-20 - 70/140Mhz IF Fiber Receiver, -20dBm AGC output

7707IFRA-H-20 - 70/140Mhz IF High Sensitivity Fiber Receiver, -20dBm AGC output

Ordering Options

• 75Ω I/O Impedance ships standard

• Rear plate and fiber connector must be specified at time of order - eg: [model]+SC+3RU

+50 - 50Ω I/O Impedance

Connector Suffix

+SC                  SC/PC

+FC                   FC/PC

+AP+SC            SC/APC (Angle Polished)

+AP+FC            FC/APC (Angle Polished)

+F75                 75Ω F-Type

Rear Plate Suffix

+1RU                1RU rear plate for use with 7701FR Multiframe

+SA                   Standalone Enclosure Rear Plate

+3RU                 3RU rear plate for use with 350FR, 7700FR-C or 7800FR Multiframes

Enclosures

350FR               Portable Multiframe which holds 7 single slot modules

7700FR-C         3RU Multiframe which holds 15 single slot modules

7800FR             3RU Multiframe which holds 15 single slot modules

7701FR             1RU Multiframe which holds 3 single slot modules

S7701FR          7700 Series Standalone Enclosure

Patch Cable

CB-FP1M-SCPC

Single mode fiber cable, 1m, SC/PC male termination

CB-FP1M-STPC

Single mode fiber cable, 1m, ST/PC male termination

CB-FP5M-SCPC

Single mode fiber cable, 5m, SC/PC male termination

CB-FP5M-STPC

Single mode fiber cable, 5m, ST/PC male termination

CB-FP10M-SCPC

Single mode fiber cable, 10m, SC/PC male termination

CB-FP10M-STPC

Single mode fiber cable, 10m, ST/PC male termination
