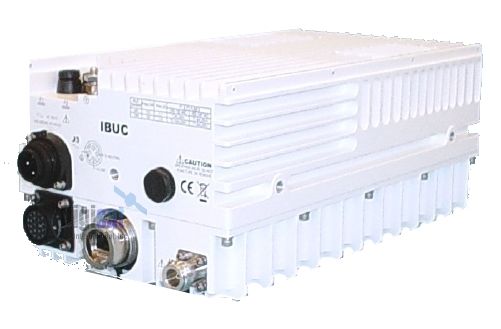

Terrasat IBUC 2 C-Band Intelligent Block Upconverter (5.85 - 6.725 GHz)
Freq. range 5.850 to 6.7250 GHz, IF 950 to 1850 Mhz, Complies with MIL-STD 188-164B, RF Output Interface CPR-137G
IBUC 2 Series C-Band Intelligent Block Upconverters
The Terrasat IBUC 2 Series C-Band is a revolutionary intelligent block upconverter with special advanced features such as a low phase noise, built-in M&C and increased efficiency. Integrated fully automatic gain control and ALC comes standard on all BUCs.
The C-Band IBUC 2 Series also provides new interfaces for connecting you to extensive M&C facilities for etwork management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status.
IBUC 2 comes with a complete set of diagnostic tools including:
10 MHz input detector Input voltage and current monitoring Transmit L‐band input level detector Transmit RF output level detector User configurable thresholds and alarms
Unique to the IBUC-2 C-Band are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
|
Frequency range |
RF |
IF |
|
|
Band 1 Std C-Band |
5850 to 6425 MHz |
950 to 1525 MHz |
|
|
Band 2 Palapa/ST1 |
6425 to 6725 MHz |
975 to 1275 MHz |
|
|
Band 3 INSAT Band |
6725 to 7025 MHz |
1150 to 1450 MHz |
|
|
Band 4 Ext C-Band |
5850 to 6650 MHz |
950 to 1750 MHz |
|
|
Band 5 Full C-Band |
5850 to 6725 MHz |
975 to 1850 MHz |
|
|
|
|
||
|
Input |
|
||
|
VSWR / Impedance |
1.5:1 max / 50 Ohm |
||
|
Input Connector |
Type N female (50 Ohm) |
||
|
Input Connector options |
Type F (75 Ohm), TNC (50 Ohm) |
||
|
Input power detector range -50 to -15 dBm |
|||
|
|
|
|
|
|
Gain |
|
|
|
|
Small Signal Gain (L-band to RF) |
|||
|
with attenuator set to 0 dB |
82 dB min |
||
|
|
|
|
|
|
Attenuator range |
30 dB variable in 0.1 dB steps |
||
|
|
|
|
|
|
Gain flatness |
|
|
|
|
Full band |
4 dB p-p max |
||
|
36 MHz |
1.5 dB p-p max |
||
|
1 MHz |
0.25 dB p-p |
||
|
|
|
||
|
Gain variation over temperature |
|
||
|
|
Bands 1/2/3 |
Bands 4/5 |
|
|
Open loop |
3 dB p-p max |
4 dB p-p max |
|
|
With AGC |
1 dB p-p max |
1 dB p-p max |
|
|
|
|
|
|
|
RF Output |
|
|
|
|
Interface |
CPR-137G |
||
|
VSWR |
1.3:1 max |
|
|
|
Output power 400W |
Band 1 |
Band 2/3/4/5 |
|
|
Psat (typ) |
+56 dBm |
+55.5 dBm |
|
|
Plin (min) |
+53 dBm |
+52.5 dBm |
|
|
Plin is the maximum linear power as defined by MIL STD 188-164B |
|||
|
|
|||
|
Level stability with ALC ±0.5 dB |
|||
|
Output power detector range Rated power to –20 dB |
|||
|
Power reading accuracy ± 1.0 dB max. |
|||
|
Spurious @ Plin |
|
|
|
|
In Band |
-65 dBc |
|
|
|
Out of Band |
Complies with EN 301 443 and MIL-STD 188-164B |
||
|
Harmonics @ Plin |
-50 dBc max. |
||
|
Output Noise Power Density |
|||
|
TX |
< -75 dBm/Hz |
|
|
|
RX |
< -150 dBm/Hz |
|
|
DSNG and SNG systems, satellite teleport uplinks
