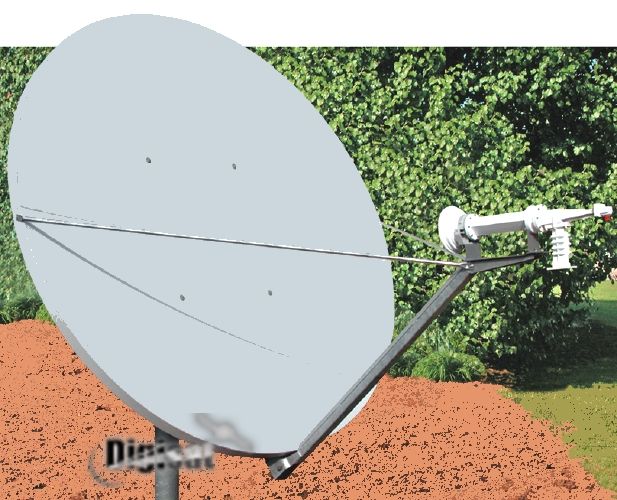

Skyware Global Type 243 C-Band 2.4M Circular Tx/RX Class III Antenna System
Handles feed boom mounting of BUCs up to 25 lbs in weight, weather resistant hardware for harsh environmental conditions
Type 243 C-Band Circular Transmit Receive Antenna
The Skyware Global 2.4M Type 243 C-Band Tx/Rx Circular Polarized Offset Antenna is a rugged commercial grade product suitable for the most demanding VSAT applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape. This ensures outstanding RF performance for transmit and receive applications such as iDirect internet service and remote satellite broadband applications.
Rugged Reflector Mount
The Type 243 Ku-Band Az/EI mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/EI mount secures the antenna to a 168 mm [ 6.63" ] 0.D. metal schedule 40 pipe mast and prevents slippage in high winds.
Corrosion Proof Antenna Backstructure
A specially formulated powder paint process offers excellent protection from weather-related corrosion.
Key Features
• All materials comply with EU directive No. 2002/95/EC (RoHS)
• One-piece thermoset-molded offset reflector
• Single bolt fine elevation adjustment
• Galvanized 30 mm [2.75"] O.D. feed support legs
• Factory pre-assembled Az/EI mount
• Plated hardware for maximum corrosion resistance
• Heavy-duty Class Ill mount for 11 kg [25 lb] RF electronics (LNB & BUC).
|
General Specifications |
|
|
Frequency Range |
5.8500 - 6.7250 GHz |
|
Gain (3 dBi) |
42.00 dBi @ 6.130 GHz |
|
Feed Interface |
Type N connector or CPR 137 waveguide flange |
|
Electrical Specifications |
|
|
Effective Aperture |
2.4m (96 in.) |
|
Operating Frequency |
Transmit = 5.850 - 6.725 GHz |
|
Polarization |
Linear, Co-Pol or Cross-Polarized |
|
Gain (±.3 dBi) |
Transmit = 42.0 dBi @ 6.138 GHz |
|
3 dB Beamwidth |
Transmit = 1.3° @ 6.1 GHz |
|
Antenna Cross-Polarization |
>30 dB (on axis) |
|
Antenna Noise Temperature |
10° Elevation = 40°K |
|
VSWR |
1.3:1 Max. |
|
Isolation, Tx to Rx |
60 dB Min. |
|
Feed Interface |
Transmit = Type N or CPR-137 |
|
Mechanical Specifications |
|
|
Reflector Material |
Glass Fiber Reinforced Polyester Composite |
|
Antenna Optics |
One-Piece Offset Feed Prime Focus |
|
Mount Type |
Elevation over Azimuth |
|
Elevation Adjust. Range |
10°-90° Continuous Fine Adjustment |
|
Azimuth Adjust. Range |
360° Continuous; ±12° Fine Adjustment |
|
Mast Pipe Interface |
6.630 in.(168 mm) Diameter |
|
Wind Loading |
Operational = 45 mi/h (72 km/h) |
|
Temperature |
-50°C to 80°C |
|
Humidity |
0 to 100% (Condensing) |
|
Atmosphere |
Salt, Pollutants and Contaminants as |
|
Solar Radiation |
360 BTU |
|
Shock and Vibration |
As Encountered During Shipping and Handling from Digisat |
All C-Band Circular polarization transmit and receive satellite applications
