Norsat Element Series 20W C-Band Block Upconverter ELMNTC020
Tx Frequency: 5.85-7.025 GHz in three sub-bands, Linear Gain: 65 dB, Type N input connector

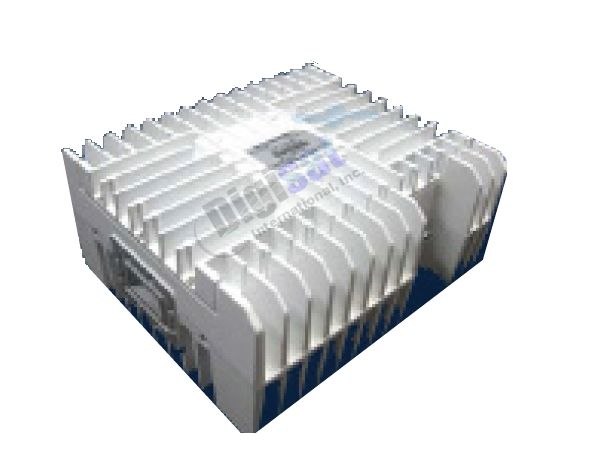

Element Series 20W C-Band Block Upconverter
The Norsat ELEMENT series 20W C-Band BUC ELMTC020 offers small size and weight with a variety of frequency options that make it ideal for VSAT applications. Available in standard, super extended and extended C-Band frequencies.
Key Features
Small size, ideal for feed mounting
3 frequency options available
RoHS Compliant
RF Configurations
|
Model |
BUC-ELMTC020-S |
BUC-ELMTC020-P |
BUC-ELMTC020-I |
|
Output frequency (mhz) |
5.850- 6.425 GHz |
6.425- 6.725 GHz |
6.725-7.025 GHz |
|
l.O. frequency (GHz) |
4.90 GHz |
5.275 GHz |
5.75 GHz |
|
input frequency (GHz) |
950 – 1525 MHz |
1150-1450 MHz |
975-1275 MHz |
Highly Versatile
Element BUCs are ideal for applications such as:
Fixed VSAT Antennas
Comms on the Move
Mobile Terminals
Maritime Vessels
Unmanned ISR (intelligence, surveillance and reconnaissance)

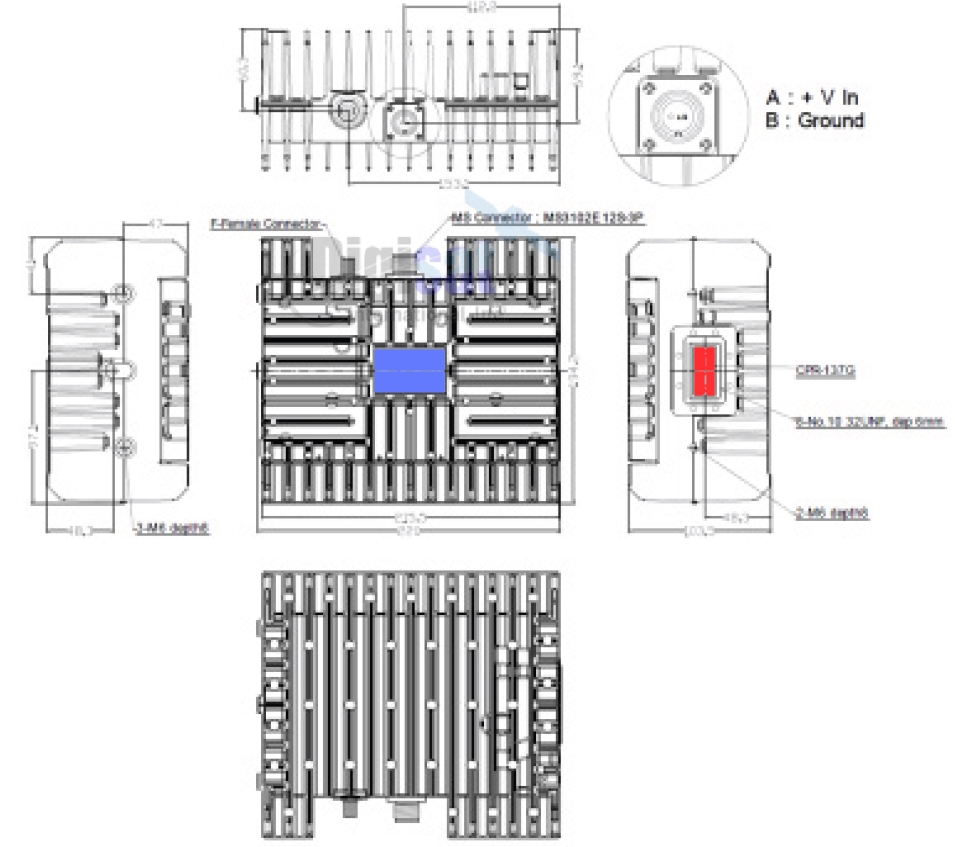

Outline Dimensions
RF Specifications
Output Power (P1db) 43 dBm min
External Reference 10MHz
Reference Power Level -5 dBm to +5dBm
Phase Noise (SS B) -65 dBc/Hz at 100Hz
-75 dBc/Hz at 1kHz
-85 dBc/Hz at 10kHz
-95 dBc/Hz at 100KHz
Linear gain 70 dB
Gain flatness +/-4.0 dB p-p, max over full band, +/- 1.5 dB p-p over 54MHz
Gain variation over temperature -4.0 dB p-p over operating range
Output Spurious -In Band -60 dBc, -Out Band -50 dBc
Interfaces
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Input Connector N: 50 Ω, F: 75 Ω
Output Connector CPR137G
Power
Power requirements +15 to +24 VDC over IFL
Power Consumption 180W max
Environmental and Physical
Temperature (operational) -40 C to +55 C
Humidity (operational) 0 – 100% condensing
Dimensions (L x W x H) 176 x 161.5 x 65 mm (16.9 x 6.4 x 2.6 inches)
Weight 1.8 kg (4.0 lbs)
Enclosed Accessories O-Ring (1 pc), Screws (4 pc)

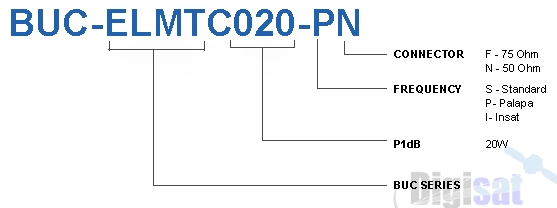

How to Order
The C-Band ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
