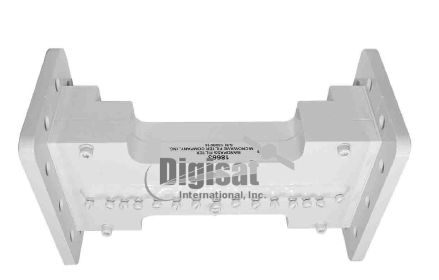

MFC 18663 INSAT C-Band Receive Filter

MFC 18663 Multi Frequency

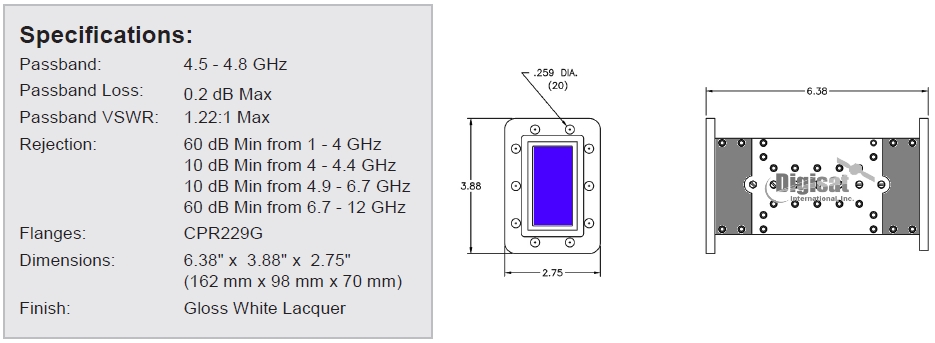

Model 18663 INSAT C-Band Multi-Band Reject filter offers extremely low loss, typically less than 0.2 dB max on receive signals while providing a high degree of transmit rejection ranging from:

 60 dB Min from 1 - 4 GHz

 10 dB Min from 4 - 4.4 GHz

 10 dB Min from 4.9 - 6.7 GHz

 60 dB Min from 6.7 - 12 GHz

Versatility

Ideal for use in high-density transmit paths, the model 18663 provides excellent rejection of these other bands:

 Maritime Radionavigation  3 - 3.1 GHz
 Radar 3.1 - 3.45 GHz
 WiMAX  3.4 - 3.8 GHz
 X-band  7.25 - 8.4 GHz
 Maritime & Aeronautical
 Radionavigation 9 - 11 GHz

Minimum Loss

 Very low Insertion Loss = Minimal Signal Degradation.
 Ideal for INSAT and other Extended C-band Applications.
 Easily bolt-on installation and no power supply required.
