MFC 17190 Multi-Purpose C-Band Transmit Reject Filter

Microwave Filter 17190 TX Rejection

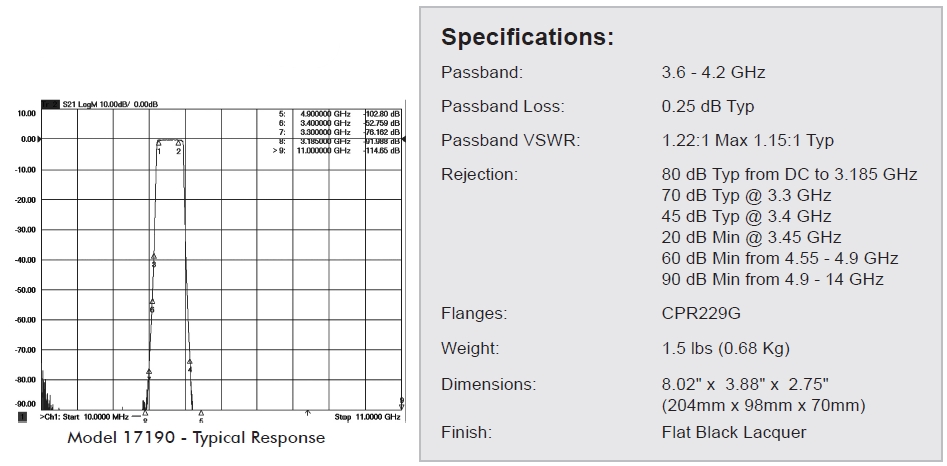

Model 17190 C-Band Multi-Band Reject filter offers extremely low loss, typically less than 0.25 dB on receive signals while providing a high degree of transmit rejection ranging from:

 80 dB Typ from DC to 3.185 GHz

 70 dB Typ @ 3.3 GHz

 45 dB Typ @ 3.4 GHz

 20 dB Min @ 3.45 GHz

 60 dB Min from 4.55 - 4.9 GHz

 90 dB Min from 4.9 - 14 GHz

Multi-Band

Ideal for use at “high-density” receive sites, the model 17190 TRF provides excellent rejection of these other bands :

 Maritime Radionavigation  3 - 3.1 GHz
 Radar   3.1 - 3.45 GHz
 Wireless Services
 (Point-Multipoint)  4.55 - 4.9 GHz
 X-band  7.25 - 8.4 GHz
 Maritime & Aeronautical
 Radionavigation  9 - 11 GHz

CPR229G Waveguide Flange
