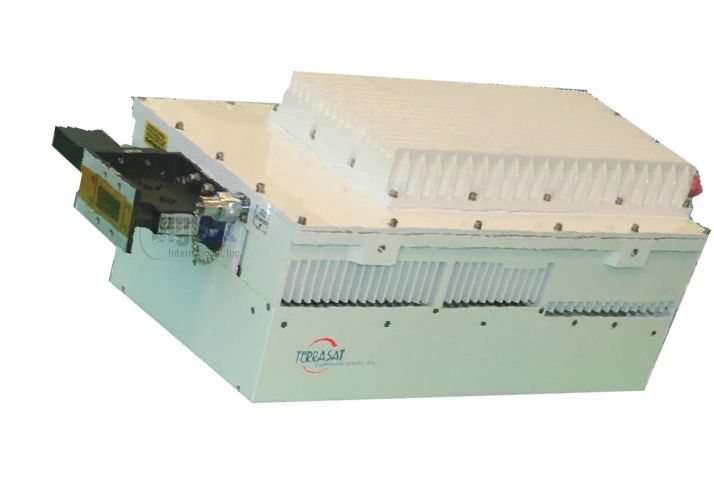

Terrasat Communications IBUC X-Band High Power Block Upconverter (7.9 - 8.4 GHz) 100W - 175W
Freq. range 7.9 to 8.4 GHz, IF 950 to 1450 Mhz, VSWR / Impedance 1.5:1 max / 50 Ohm, Complies with EN 301 428/430 and MIL-STD 188-164B
IBUC High Power X-Band Intelligent Block Upconverters (100W - 175W)
The Terrasat Communications IBUC X-Band BUC is a highly advanced intelligent block upconverter with special custom features such as low phase noise, built-in M&C and increased RF efficiency with Integrated fully automatic gain control and ALC comes standard on all BUCs.
The X-Band IBUC High Power Series also provides new interfaces for connecting you to extensive M&C facilities for etwork management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status.
IBUC comes with a complete set of diagnostic tools including:
10 MHz input detector Input voltage and current monitoring Transmit L‐band input level detector Transmit RF output level detector User configurable thresholds and alarms
Unique to the IBUC X-Band BUCs are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
|
Frequency range |
RF |
IF |
||
|
|
7900 to 8400 MHz |
950 to 1450 MHz |
||
|
Input |
|
|
||
|
VSWR / Impedance |
1.5:1 max / 50 Ohm |
|
||
|
Input Connector Type N female (50 Ohm) |
||||
|
Input Connector options Type F (75 Ohm), TNC (50 Ohm) |
||||
|
Input power detector range -55 to –20 dBm |
||||
|
Gain |
||||
|
Small Signal Gain (L-band to RF) with attenuator set to 0 dB 100 W 81 dB min |
||||
|
125 W 82 dB min |
||||
|
150 W 83 dB min |
||||
|
175 W 83 dB min |
||||
|
Attenuator range 16 dB variable in 0.1 dB steps |
||||
|
Gain flatness Full band 4 dB p-p max |
||||
|
36 MHz 1.5 dB p-p max |
||||
|
1 MHz 0.25 dB p-p |
||||
|
Gain variation over temperature Open loop 3 dB p-p max |
||||
|
With AGC 1 dB p-p max |
||||
|
RF Output |
||||
|
Interface CPR-112G |
||||
|
VSWR < 1.3:1 max |
||||
|
Rated output power (P1dB) 100 W +50 dBm min |
||||
|
125 W +51 dBm min |
||||
|
150 W +51.8 dBm min |
||||
|
175 W +52.4 dBm min |
||||
|
IMD3 (2 carriers, 3 dB TOBO) -27 dBc max |
||||
|
Level stability with ALC ±0.5 dB |
||||
|
Output power detector range Rated power to –20 dB |
||||
|
Power reading accuracy ± 1.0 dB max. |
||||
|
Spurious In Band -65 dBc |
||||
|
Out of Band Complies with MIL-STD 188-164B |
||||
|
Harmonics -60 dBc max. |
||||
|
Output Noise Power Density TX Band < -75 dBm/Hz |
||||
|
|
RX Band (with RX reject filter) < -165 dBm/Hz |
|||
|
Mute |
-70 dBc max. |
|||
|
AM-PM Conversion |
< 3.0 deg/dB @ rated power |
|||
|
Group Delay Linear |
0.03 ns/MHz |
|||
|
Parabolic |
0.003 ns/MHz2 |
|||
|
Ripple |
1 ns p-p over any 36 MHz |
|||
All Milsatcom and armed forces communications systems including fixed, mobile and transportable antennas
