Norsat 5010XRT-3 10W X-Band Block Upconverter
Tx Frequency: 5.85-7.025 GHz in three sub-bands, Linear Gain: 65 dB, Type N input connector

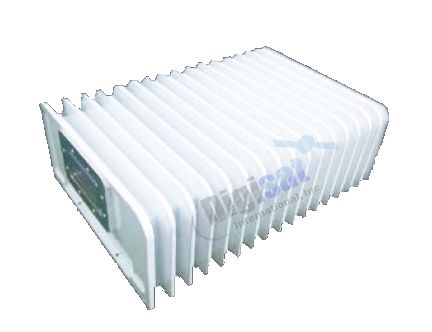

5010XRT-3 10W X-Band Block Upconverter
The Norsat 10W X-Band BUC 5010XRT-3 offers small size and weight with a variety of frequency options that make it ideal for all Government and military VSAT applications. Available in standard, super extended and extended C-Band frequencies.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
X-Band BUCs are ideal for applications such as:
Fixed VSAT Antennas
Comms on the Move
Mobile Military Terminals
Maritime Navy Vessels
Unmanned ISR (intelligence, surveillance and reconnaissance)

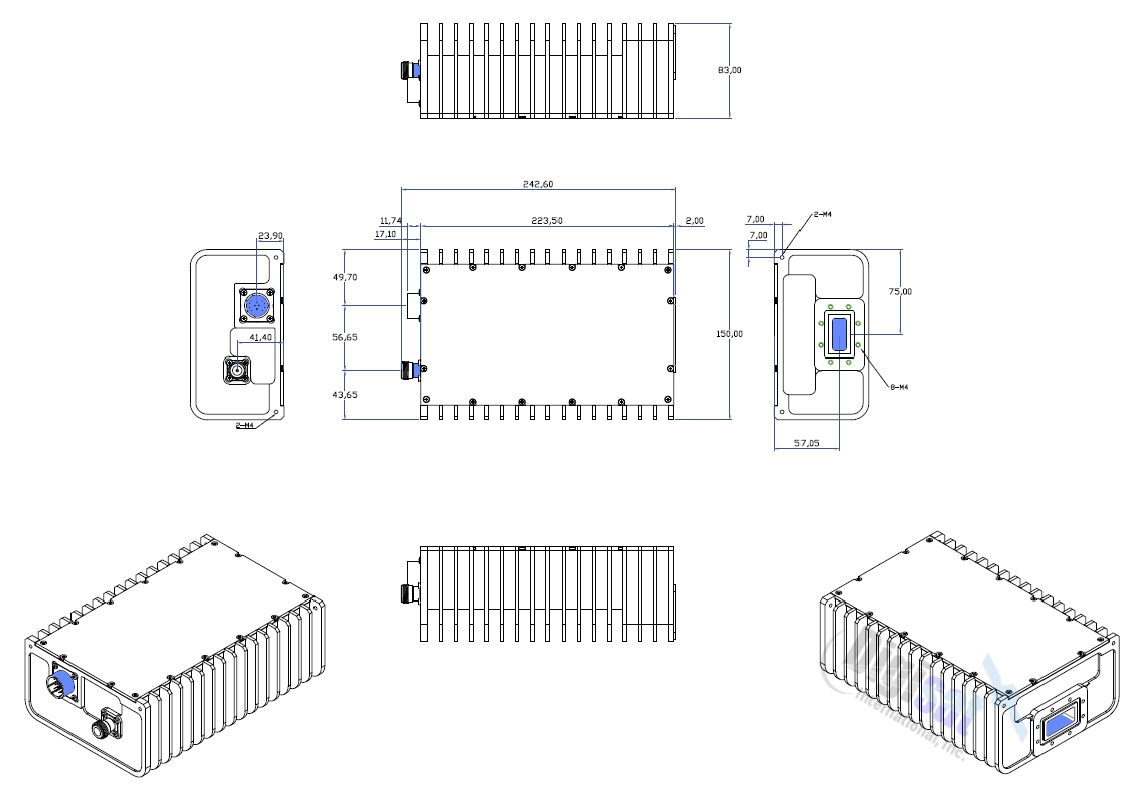

Outline Dimensions
Specifications
Output frequency 7.9 to 8.4 GHz
Input frequency 950 to 1450 MHz
Output to P1dB 40 dBm min.
L.O. frequency 6.95 GHz
Input VSWR 2.0 : 1 max
Output VSWR 1.5 : 1 max
Phase noise (SSB) maximum -73 dBc/Hz at 1 kHz
-83 dBc/Hz at 10 kHz
-93 dBc/Hz at 100 kHz
External reference 10 MHz signal frequency
External reference level -5 to +5 dBm
External reference phase noise -130 dBc/Hz max at 100Hz, -143 dBc/Hz max at 1 kHz, -152 dBc/Hz at 10 kHz
Gain 60 - 65 dB (Fixed), 50 - 65 dB (1dB step)
Gain stability over temperature ±2.5 dB at any constant frequency
Gain flatness ±0.5 dB in any 36 MHz, ±2.0 dB over full band
Mute @ LO unlock or temp over 85°C
Operationing temperature -40°C to 55°C
Power requirements +32 to +56 V supplied through MS connector or IF connector
Power consumption 85W max
Input interface N-female, F-female
Output interface CPR-112G
Dimensions 243 (L) x 150 (W) x 83 (H) mm
Weight 3.5 kg
M&C interface Ethernet or RS232 through MS3112e14-12P connector

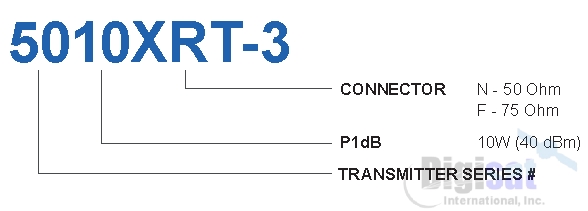

How to Order
The X-Band 5010 series offers small size and weight with a variety of frequency options that make it ideal for all military VSAT applications.
