Norsat XT1000F Externally Referenced X-Band PLL LNB (7.25- 7.75 GHz) F-Connector
X-Band Frequency: 7.25 to 7.75 GHz, L.O. Stability: Phase Locked to external reference, RF Output: F-Connector, 0.7 dB Noise Figure
The Norsat XT1000F X-Band PLL Low Noise Block Converter provides high stability and outstanding RF performance over X-Band satellite frequencies from 7.25- 7.75 GHz. The XT1000F X-Band LNB features a highly stable externally referenced local oscillator. L-Band RF output configuration is a 75-ohm F-connector. X-Band RF frequency input is accomplished via a precision WR112 grooved waveguide flange.
Local oscillator frequency: 6.30 GHz
Noise Figure: 0.7 dB

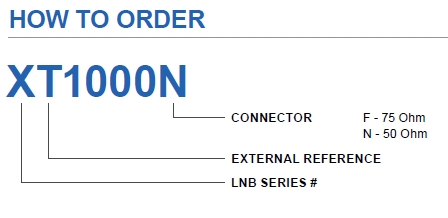

Norsat XT1000F Series LNB Ordering Information

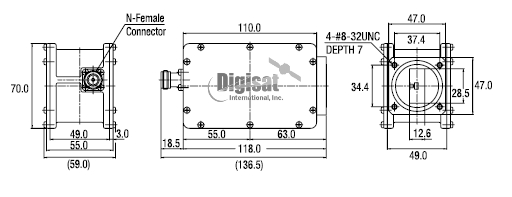

Outline Diagram
TYPICAL SPECIFICATIONS
Noise figure 0.7 dB
L.O. stability Phase Locked to
External Reference
Phase noise (SSB): -75 dBc / Hz at 1 kHz, -85 dBc / Hz at 10 kHz, -95 dBc / Hz at 100 kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 56 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 230 mA
Input Waveguide WR112
Dimensions 137 (L) x 70 (W) x 59 (H) mm (5.4 x 2.8 x 2.3 in)
Weight 600 g / 21.1 oz
Ext Ref Frequency 10 MHz (sine-wave), -10 to 0 dBm
Temperature Range -40°C to +60°C
Frequency Bands Available
Input frequency (GHz) |
7.25 to 7.75 |
L.O. frequency (GHz) |
6.30 |
Output frequency (MHz) |
950 to 1450 |
Government & Military Communications Systems, Milsatcom Terminals, Mobile Tactical VSAT Systems, Mission Critical Satcom
