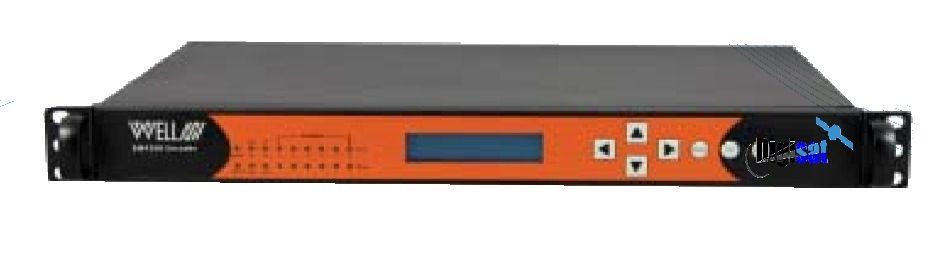

Wellav SMP350 DVB-ASI to IP Real Time Conversion System
Ultra Compact 1RU chassis, Convert IP Streams to ASI and vice versa.
SMP350 ASI to IP Converter
The Wellav SMP350 processor can support inputting DVB-ASI (up to 10 TS streams) and converting to IP format (up to 12 streams). Conversely, it supports inputting up to 12 IP streams and coverting to DVB-ASI (up to 10 TS streams) with minimum loss in video quality. SMP350 provides the service provider a cost-effective yet scalable solution to repurpose their content from different format and achieve digital content distribution seamlessly.
Features
1) Up to 16 DVB-ASI converting to IP stream (up to 12 streams), or up to 12 IP streams converting to DVB-ASI (up to 16 streams)
2) ASI/IP mutual conversion with minimum loss in video quality
3) Support 16 ASI inputs or outputs
4) Contain one Gigabit Ethernet port for input and output IP stream
5) Support stream processing including PID remapping and EPG data insertion
ASI/IP Mutual Conversion |
|
IP |
|
|
Interface: |
1 x 1000 Mbps per port |
|
IP Encapsulation: |
MPEG TS over UDP/RTP |
|
MPEG TS: |
MPTS and SPTS |
|
I/O Processing: |
Up to 12 Streams, max at 72 Mbps per Streams |
|
Addressing: |
Unicast and Multicast |
|
Management: |
IGMPv2, IGMPv3 |
|
Forward Error Correction: |
ProMPEG |
ASI |
|
|
Interface: |
12 BNC connectors (inputs or outputs), 75Ω |
|
MPEG Format: |
188/204 Bytes |
|
I/O Processing: |
1 MPTS/SPTS per port, up to 120 Mbps per port |
|
|
|
Re-multiplexing |
|
|
PID: |
Re-mapping and Filtering |
|
MPTS Output Synchronization |
|
|
Routing: |
Any Input to Any Output |
|
|
|
Management |
|
|
Interface: |
100Base-TX, RJ45 |
|
NMS: |
Wellav Digital Service Manager |
|
Support SNMP: |
|
|
|
|
Physical & Environment |
|
|
Input Voltage: |
90 - 260 VAC |
|
Power Consumption: |
Approx 125 W |
|
Rack Space: |
1 RU |
|
Dimension (WxHxD): |
480mm x 44mm x 440mm |
|
Operating Temperature: |
0oC to 50oC |
|
Storage Temperature: |
-40oC to 65oC |
|
Relative Operating Humidity: |
<95% |
