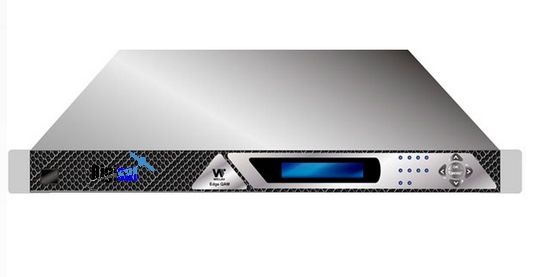

Wellav IFQ360 Efficient IP Stream Processor QAM Modulator
Processes up to 2048 IP Streams at one time
IFQ360 QAM Modulator IP Streaming Processor
The highly advanced Wellav IFQ360 provides exceptional capabilites for IP stream processing and QAM modulating. As more services like VOD, SVOD and OTT are added to Cable TV systems requiring IP streams, there is an urgent requirement to process these IP Streams efficiently.
High Capacity
The Wellav IFQ360 Edge QAM has the processing capacity of up to 2048 IP Streams in and 192 channels QAM modulation in a one RU device. The output QAM module in this Wellav modulator is flexible and efficient as it will support discrete frequencies modulation, RE-MUX and process Transport Streams, Service, PID coding. The QAM module offers scrambling capability. Monitoring of the equipment temperature and bit-rate statistics are available options, which can play a very important part at ensuring proper functions and long term operation.
Features
The IFQ360 chassis supports up to 2 IP modules and 6 Edge QAM modules
Up to 2048 streams In and 192 Re-MUX streams Out
Up to 192 discrete frequencies modulation
Support NGOD protocol
Support re-MUX function and stream processing including operation on TS, service and PID
SFP backup available
Offer analysis and reconstruction on PAT/PMT/PID
Scrambling function
IP Input |
|
|
Interface: |
2x(4 or 2:2 SFP Port Backup) |
|
IP Encapsulation: |
MPEG TS over UDP/RTP |
|
MPEG TS: |
MPTS and SPTS |
|
Input Processing: |
Up to 2048 Streams, max at 72 Mbps per socket |
|
|
|
Modulating |
|
|
Physical Outputs: |
1 RF for 32 channels |
|
Output Frequency Range : |
57~999 MHz |
|
RF Channel: |
32 (6/7/8 MHz) discrete frequencies per channel |
|
Symbol Rate: |
3.6 ~ 6.952 Ms/s |
|
QAM Modulation Mode: |
64/256 QAM |
|
QAM Type: |
ITU-T J.83 Annex A/ C, Annex B |
|
Output Level |
|
|
Effective, single channel: |
112~120 dBuV |
|
Combined, 8 channel: |
101~109 dBuV |
|
MER: |
≥43dB (Equalized) |
|
BER: |
≤5×10-9 (64QAM,6.875Msps) |
|
|
|
Re-multiplexing |
|
|
PID: |
Re-mapping and Filtering |
|
MPTS Output Synchronization |
|
|
Routing: |
Any Input to Any Output |
|
Redundancy: |
Input Service Redundancy & IP Port Redundancy |
|
|
|
IP & Edge QAM Interface |
|
IP Board |
|
|
Physical Interface: |
4 SFP Ports and 1 RJ 45 Port |
|
SFP Port: |
Up to 256 Streams per port, max at 72 Mbps per Streams |
|
RJ 45 Port: |
For NMS only; 100/1000 Mbps detection automatically |
|
IP Encapsulation: |
MPEG TS over UDP/RTP |
|
Input Processing: |
Up to 256 Streams and 4096 PIDs per SFP port |
|
Addressing: |
Unicast and Multicast |
|
IGMP Version: |
IGMPv2, IGMPv3 |
Edge QAM Board |
|
|
Physical Interface: |
1 RF connectors |
|
|
|
Management |
|
|
Interface: |
10M/100M/1000M Base-TX, RJ45 |
|
WEB-Based NMS: |
Wellav Digital Service Manager |
|
NMS: |
Wellav Digital Service Manager, Support SNMP |
|
: |
|
Physical & Environment |
|
|
Input Voltage: |
90~264 V AC; 48 V DC |
|
Power Consumption: |
Approx 275 W |
|
Rack Space: |
1 RU |
|
Dimension (WxHxD): |
483mm x 44mm x 440mm |
|
Operating Temperature: |
0oC~50oC |
|
Storage Temperature: |
-10oC~70oC |
|
Relative Operating Humidity: |
<95% |
