Wavestream Gilat Ku-Band 200W Powerstream Block Upconverter
Transmit Frequency Standard 14.0 - 14.5 GHz, Extended Band Option 13.75 - 14.5 GHz, IF Frequency Standard 950 - 1450 MHz , Extended Band Option 950 - 1700 MHz
200 Watt Power Stream Ku

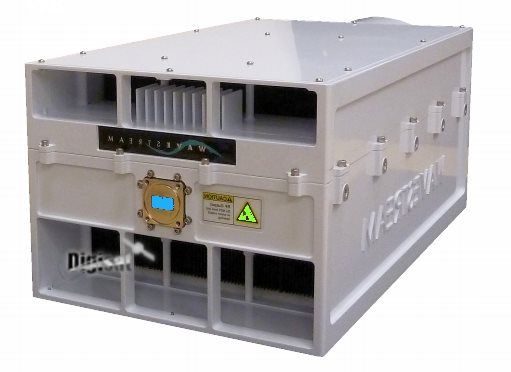

The Wavestream PowerStream 200W Ku-band Block Upconverter (BUC) offers high linear power in a compact, lightweight “pack and go” package suitable for clamshell mobile antennas, high definition Satellite News Gathering (SNG) vehicles and small broadcast service hubs.
Easy BUC Integration
This 200W Ku BUC can be mounted directly onto the feed arm of medium aperture antennas, maximizing the power into the feed and enhancing system-level efficiency. With an Instant On feature, there is no warm up time, ensuring communications are up and running immediately.
Reliability
Designed for reliability and high output power in extreme environments, the 200W Ku-band Block Up Converter includes a choice of frequency band, L-band to Ku-band upconversion, serial or Ethernet monitor and control, adjustable attenuation, and output power monitoring.
Redunant
Optional 1:1 Redundancy Kits are available to provide an integrated solution for uninterrupted, reliable satellite transmissions.
The 1:1 Redundancy Kit integrates the waveguide, switch and mounting hardware, and offers ease of installation and subsequent
maintenance to accommodate outdoor mounts.
|
RF Specifications |
|
|
TransmitFrequency -Standard -Extended Band Option |
14.0 - 14.5 GHz 13.75 - 14.5 GHz |
|
IFFrequency -Standard -Extended Band Option |
950 - 1450 MHz 950 - 1700 MHz |
|
FrequencyReference (10 MHz on IF) |
0 dBm ± 5 dB |
|
SmallSignalGain |
70 dB minimum |
|
GainAdjustment |
20 dB, 0.25 dB steps nominal |
|
GainVariation (over frequency at fixed temperature) |
3 dB over 500 MHz 0.6 dB over 36 MHz |
|
GainVariation (over temperature at fixed frequency) |
3 dB p-p over operating range |
|
SaturatedOutputPower |
53 dBm (nominal) |
|
P1dBOutputPower* |
>+51.8 dBm |
|
RatedOutputPower* |
+51.8 dBm |
|
Intermodulation* (Third order intermodulation product relative to combined power of two carriers at 3 dB total power back-off from Rated Output Power) |
-25 dBc |
|
SpectralRegrowth (For QPSK at 1.5x and for OQPSK at 1.0x symbol rate offset at 2 dB back-off from Rated Output Power) |
-30 dBc |
|
PhaseNoise |
Meets IESS-308 |
|
AM/PMConversion (up to 2 dB below Rated Output Power) |
2 deg/dB |
|
NoisePowerDensity-Transmit |
-70 dBW/4 kHz (maximum) |
|
NoisePowerDensity-Receive |
-150 dBW/4 kHz |
|
OutputSpurious |
-55 dBc |
|
Power |
|
|
ACPower |
90-264 VAC, 50-60 Hz |
|
ACPowerDraw (typical) (at Rated Output Power) |
1300W |
|
ACPowerDraw (at 3dB Back-off from Rated Output Power) |
1100W |
Compact, Lightweight Package, Industry-leading Efficiency, Flexible Power Source
