Wavestream Gilat Ku-Band 100W Powerstream Block Upconverter
Transmit freq: 14.0-14.50GHz, Extended Band Option- 13.75-14.50GHz, IF Freq: 950-1450MHz, Extended Band Option- 950-1700MHz
100 Watt Power Stream Ku

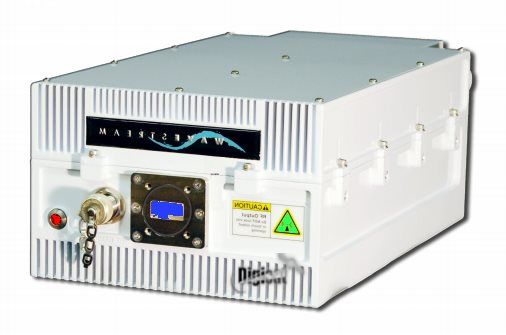

The Wavestream gilat PowerStream 100-W Ku-band Block Upconverter (BUC) offers high linear power in a compact, lightweight “pack and go” package suitable for clamshell mobile antennas, high definition Satellite News Gathering (SNG) vehicles and small broadcast service hubs.
Easy Antenna Integration
This 100W Ku BUC can be mounted directly onto the feed arm of medium aperture antennas, maximizing the power into the feed and enhancing system-level efficiency. With an Instant On feature, there is no warm up time, ensuring communications are up and running immediately.
BUC Reliability
Designed for reliability and high output power in extreme environments, the 100W Ku-band Block Up Converter includes a choice of frequency band, L-band to Ku-band upconversion, serial or Ethernet monitor and control, adjustable attenuation, and output power monitoring.
Redunant
Optional 1:1 Redundancy Kits are available to provide an integrated solution for uninterrupted, reliable satellite transmissions.
The 1:1 Redundancy Kit integrates the waveguide, switch and mounting hardware, and offers ease of installation and subsequent
maintenance to accommodate outdoor mounts.
|
RF Specifications |
|
|
TransmitFrequency -Standard -Extended Band Option |
14.0 - 14.5 GHz 13.75 - 14.5 GHz |
|
IFFrequency -Standard -Extended Band Option |
950 - 1450 MHz 950 - 1700 MHz |
|
FrequencyReference (10 MHz on IF) |
0 dBm ± 5 dB |
|
SmallSignalGain |
70 dB nominal |
|
GainAdjustment |
-20 dB, 2 dB steps nominal |
|
GainVariation (over frequency at fixed temperature) |
0.5 dB over 36 MHz 3 dB over 500 MHz |
|
GainVariation (over temperature at fixed frequency) |
3 dB p-p over operating range |
|
SaturatedOutputPower |
50 dBm |
|
P1dBOutputPower* |
>49 dBm |
|
RatedOutputPower* |
49 dBm |
|
Intermodulation* (Third order intermodulation product relative to combined power of two carriers at 3 dB total power back-off from Rated Output Power) |
-25 dBc |
|
SpectralRegrowth (For QPSK at 1.5x and for OQPSK at 1.0x symbol rate offset ar 2 dB back-off from Rated Output Power) |
-30 dBc |
|
PhaseNoise |
Meets IESS-308 |
|
AM/PMConversion (up to 2 dB below Rated Output Power) |
2 deg/dB |
|
NoisePowerDensity-Transmit |
-70 dBW/4 kHz (maximum) |
|
NoisePowerDensity-Receive |
-150 dBW/4 kHz (maximum) |
|
OutputSpurious |
-55 dBc |
|
Power |
|
|
ACPower |
90-264 VAC, 50-60 Hz |
|
ACPowerDraw (at Rated Output Power) |
625W |
|
ACPowerDraw (at 3dB Back-off from Rated Output Power) |
550W |
Compact, Lightweight Package, Industry-leading Efficiency, Flexible Power Source
