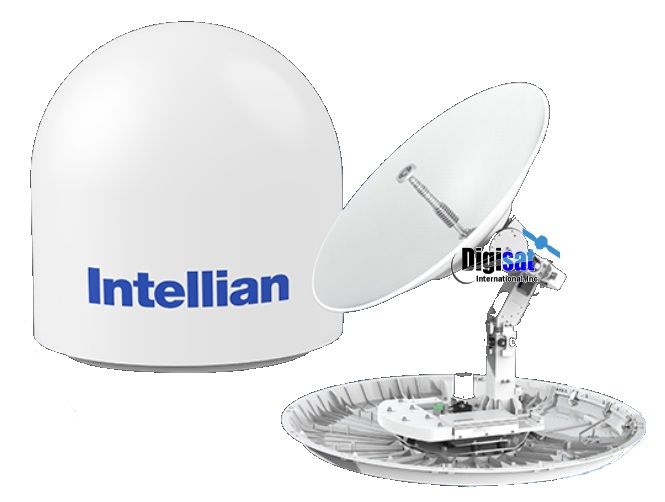

Intellian V100NX Ku-Ka GEO MEO LEO VSAT
All-New Platform:
RF, Control System, AptusNX. Features common parts which reduces spare parts by 40% and enhances reliability
V100NX Ka-Ku GEO MEO LEO Tracking Antenna
The Intellian V100NX delivers access to new satellite constellations and future services with GEO, MEO and LEO tracking capability while being 2.5GHz Wideband Ka ready which provides access to higher bandwidth and provides increased flexibility with a Ku-Ka-band tuned radome and reflector for easy conversion.
The NX series terminals are future-proof and investing now will provide you with an innovative product to support all your communication needs today, as well as access to future networks as your needs evolve.
Higher Performance and Greater Reliability
-
New RF Design delivering improved Receive Gain
-
Enhanced remote management and troubleshooting via AptusNX platform
-
Access higher bandwidth packages with available high power BUC options
Lowest Total Cost of Ownership with an All New Common Platform
-
Installation wizard for faster and more accurate commissioning
-
Single Cable installation reduces cost and Industry leading warranty
-
Common platform with 40% less spares
Market Sectors
The V100NX Series has been developed to offer a product to suit all customer needs and demands across the Maritime industry. Vessel sizes and communication needs are varied and the NX product line has products to meet these unique demands.
2.5GHz Wideband Ka Tuned Components
-
2.5GHz Radome & Reflector
-
2.5GHz RF Feed & Components
-
2.5GHz Wideband BUC & LNB
Higher Performance with Greater Reliability
The new V100NX Terminal offers high-speed data rates and global operation with its high-efficient RF design and also enables a higher level of bandwidth with a high power BUC Option
LEO, MEO and GEO Ready
Dual Antenna Configuration
Above Deck Unit
Radome Height 145.8 cm / 57.4”
Radome Diameter 137.9 cm / 54.3”
Reflector Diameter 105 cm / 41.3”
Weight 113 kg / 249.1 Ibs
Azimuth Range Unlimited
Elevation Range -20° to 115°
Cross-level Range ± 37°
Stabilization Accuracy 0.2° peak miss-pointing @ max ship motion condition
Motor Brake System Dynamic Break System
Tx Frequency 13.75 ~ 14.5 GHz Ku-band
Tx Gain 42.0 dBi @ 14.25 GHz (excl. radome)
Rx Frequency 10.7 ~ 12.75 GHz Ku-band
Rx Gain 40.7 dBi @ 11.7 GHz (excl. radome)
G/T > 20.0 dB/K @ 12.75 GHz
(Clear Sky, 30° Elevation)
BUC Power 8W, 16W, 25W (Optional)
LNB Intellian PLL LNB
Polarization Linear, Cross & Co-pol
Antenna Cable Single 50ohm Coax Cable for Rx, Tx, FSK,
Reference and Power from ACU to ADU
Antenna Control Unit
Dimensions (WxDxH) 43.1cm x 41.1cm x 4.4cm / 17” X 16.1” X 1.7”
Weight 5.2 kg / 11.5 Ibs
Display OLED Display
Gyrocompass
Interface NMEA2000, NMEA0183
Mediator Interface Yes
Modem Interface Ethernet port / RS-232C,-422C / I/O Console
Modem Protocol iDirect, Comtech, SatLink, Hughes, GILAT, Newtec
Wi-Fi Operation Yes (w/ Wi-Fi dongle)
Management Port Yes
Intellian LAN Port Yes
Power Requirement 100 ~240 VAC, 50~60Hz, 4A
Ku- to Ka-band compatibility, GEO, LEO and MEO operation
