Tri-Band (C, X, Ku-Band) Satellite Simulation System
Tri-Band- X, C and Ku-Bands, Phase Noise 10 dB (typical) better than IESS 308/309
Tri-Band Simulator

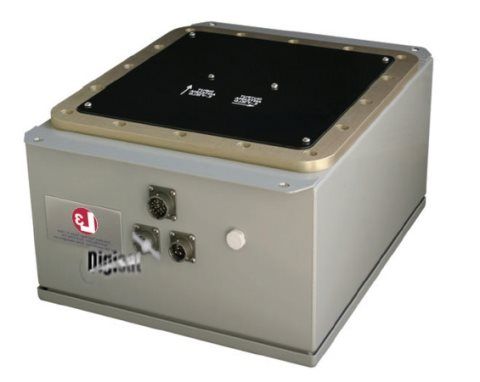

Digisat Tri-Band Satellite Simulator System- With the Wideband Global SATCOM (WGS) becoming operational, we've expanded our Satellite Simulator product line beyond Tri-band, to now include both Quad-band and Ka-band capabilities. Designed for use as a training test-bed, our satellite simulators can be used by operations personnel to setup and operate satellite earth terminals in the field under realistic operating conditions without the need for an actual satellite.
Signal Acquiring
Use of Digisat's simulators in lieu of a satellite permits signal acquisition by the earth terminal, antenna pointing, uplink power adjustment, signal reception, link closure and communications systems adjustment to establish acceptable bit error rates with very low satellite terminal transmit power.
Key Features
- Simulates C-Band, Ku-Band and X-Band satellites
- Permits earth station set-up without actual satellite available
- Ruggedized/ weatherproof enclosures for outdoor deployment
- Typical operation range is 50-1000 ft (actual range is determined by antenna size and power
- Low-phase noise for digital data
- Wireless remote control (availablewith Quad-Band Simulator)
- Lightweight
- Easy to operate
|
TRI-BAND |
|
RF SIGNALS C-BAND X-BAND KU-BAND |
|
RF Input Frequencies (GHz) 5.850 to 6.425 7.90 to 8.40 14.00 to 14.50 |
|
RF Output Frequencies (GHz) 3.625 to 4.200 7.25 to 7.75 10.95 to 11.20 11.45 to 11.70 11.70 to 12.20 12.25 to 12.75 |
|
TRANSFER CHARACTERISTICS – ALL BANDS |
|
Type Non-Inverting |
|
Gain -10 dB |
|
Attenuation Control 30 dB (60 dB optional) |
|
Gain Ripple ±0.25 dB/40 MHz ±1.0 dB/600 MHz |
|
1dB Compression Point -10 dBm (@ 0 dB attenuation) (Output) |
|
Gain Stability 0.25 dB/day (25°C) |
|
Impedance 50 ohms |
|
VSWR In/Out 2.0:1 max |
|
Spurious and Harmonic 50 dB min in-hand Rejection |
|
Phase Noise 10 dB (typical) better than IESS 308/309 |
|
Frequency Stability ±5 x 10-8/day (±1 x 10-9/day optional) |
|
Group Delay ±0.5 ns/40 MHz |
|
Input/Output Antennas Waveguide horns with nominal gains of 10 dB |
|
PHYSICAL SPECIFICATIONS |
|
Dimensions 19” H x 32” D x 27” W |
|
Weight 78 lb |
Simulates C-Band, X-Band and Ku-Band satellites, Permits earth station and VSAT antenna testing without actual satellite time available, Ruggedized and weatherproof enclosures for outdoor deployment
