Tiernan Video DAC7000 Satellite Audio Multiplexer Encoder
Encodes and Multiplexes Satellite Audio for Re-Broadcasting

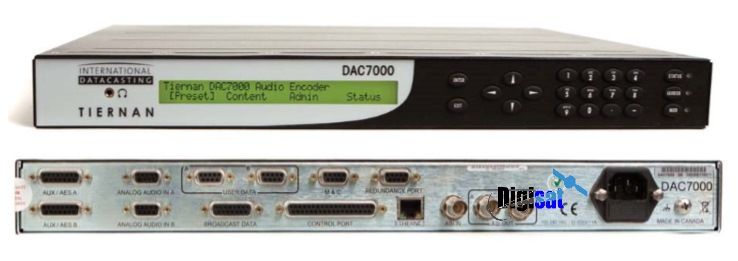

DAC7000 Professional Integrated Audio Encoder
** This encoder has reached end of life. Please contact Digisat for a suitable replacement. **
The Tiernan Professional Series DAC7000 Broadcast Audio Encoder delivers MPEG Layer II encoding for support of legacy ABR networks. The DAC-7000 is a highly integrated digital audio broadcast encoder compatible with the ABR legacy product line of receivers.
Space Segment Bandwidth Savings
The DAC7000 allows operators to save space-segment transmitting narrow-band carriers for each audio stream. By connecting a modem and transmission equipment to a DAC-7000, unlimited audio receivers can be added to complete the network and receive the broadcast.
Industry Standard Encoding
The 7000 series digitally encodes audio and multiplexes data using industry standard ISO/MPEG Layer II. Seven different audio rates allow the network to select between audio quality and transmission costs. User data along with relay/cue signals can be multiplexed into the encoded audio stream allowing for completely automatic operation at remote sites using the ABR202A, 202 or 200.
SCPC Operation
Single Carrier Per Channel (SCPC) support for networks based on the legacy DAC700/400 codec and ABR202/200 receiver is provided with the DAC7000. The DAC7000 can be used to replace the encoding functionality of the DAC700 or as an additional encoder in a DAC700/400 installation. The DAC7000 is compatible with many popular modems including the DMD20 and CM701/601 as well as redundancy switches including the RCS11, CX101, CX801 and AX801.
STATUS AND CONTROL INTERFACES
RS‐232 Proprietary Command Line Monitor and Control (ASCII) or RS‐485 Packet
Protocol, DB‐9 Female connector
Smart front panel control
Status fault relay
POWER REQUIREMENTS
Supply Voltage Autosensing, autoranging, 90 to 240 VAC, 50 to 60 Hz
Power Consumption 60 Watts maximum
PHYSICAL PARAMETERS
Chassis 1RU rackmount
Dimensions (H, W, D) 4.5 cm x 48.3 cm x 45 cm (1.75” x 19” x 17.7”)
Weight 5.5 kg (12 lbs.)
ENVIRONMENTAL CONDITIONS
Operating Temperature 0° to 45° C (32° to 113° F)
Storage Temperature ‐22° to 70° C (‐4° to 158° F)
Safety and Emissions CE Certification
AUDIO SPECIFICATIONS
Audio Encoding
ISO/MPEG Layer II
64, 96, 128, 192, 256, 384 Kb/s
Mono, Dual Mono (stereo), joint stereo modes
Audio Ports Analog inputs, L/R stereo pair, balanced, DB‐9
Female connector
Digital inputs, AES/EBU, balanced stereo, DB‐15
Female connector
AUXILIARY DATA
ASYNC Channels 1200, 2400, 4800, 9600 bps, EIA‐232; DB‐9 Female connector
MISCELLANEOUS SPECIFICATIONS
Auxiliary Data Processing ASYNC Channels: 1200, 2400, 4800, 9600 bps, EIA‐232;
DB‐9 Female connector
TTL Sensor Inputs Optically isolated, 16 inputs, DB‐37 Female connector
64, 96, 128, 192, 256, 384 Kb/s Professional Broadcast Audio Encoding and Multiplexing
