Teledyne Paradise Datacom Q-Lite Half-Width Satellite Modem
Operation to 2,048kbps provided as standard, DVB-S2/S2X: 50kbps to 345Mbps, FastLink LDPC: 18kbps to 100Mbps, TPC: 2.4kbps to 60Mbps

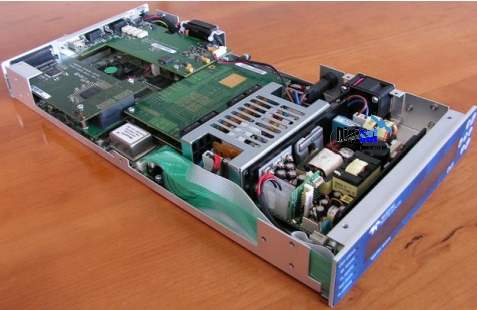

Teledyne Paradise Datacom Q-Lite Half-Width Modem
The Paradise Datacom Q-Lite half-width compact satellite modem is provided in 9.5-inch & 10.5-inch chassis. Two 9.5-inch chassis can be fitted side-by-side in a standard 19-inch rack, saving on air conditioned hub space. Its small size and low power consumption also make it ideal for portable communications and comms-on-the-move.
Advanced Bandwidth-Efficient Features
The Q-Lite is small in size but big on features. Paired Carrier+ is our enhanced carrier overlap technology that allows transmit and receive carriers to occupy the same space segment. DVB-S2X, is between 20% and 60% more bandwidth efficient than its predecessor, DVBS2. Bandwidth-saving IP features include ACM, acceleration and header and payload compression.
Q-Lite Card Features
- Data rates to 345Mbps bidirectional
- Extended L-band operation to 2450MHz
- Paired Carrier+ enhanced carrier overlay
- XStream IP advanced IP optimization suite including TCP & HTTP acceleration, header & payload compression, traffic shaping, encryption & ACM
- Optimized spectral roll-offs, including 5%
- DVB-S2/S2X, FastLink LDPC & TPC
- 9.5-inch & 10.5-inch chasses options (convertible using just different L-brackets)
- Fit two chasses side-by-side in 19-inch rack
- Software Defined Network support: vendorindependent network device control using standard commands (supports OpenFlow) 25 to 33 Watt power consumption
- AC, 24V DC & 48V DC input PSU options
- LinkGuard signal-under-carrier interference detection
- Q-NET Navigator network M&C application included as standard
Applications
- Comms-on-the-move
- Oil & gas
- Broadcast
- Disaster relief
- Maritime
- Satellite news gathering
- Compact, low-power satellite terminals
