Teledyne Paradise Datacom uBUC Ku-Band Micro Block Upconverter Module
Ku-Band power outputs of 10, 20 and 25 watts
uBUC Ku-Band Micro Block Upconverter Module
Teledyne Paradise Datacom’s BUC is a Block Up Converter available in X and Ku-Band. The module is specifically designed for highly mobile commercial and military satellite communication applications.
Mobile VSAT Ready
The BUC is ideal for use in any Fly-away or Manpack application where miniature form factor and light weight are a requirement. The converter locks to a 10 MHz external reference signal of -10 dBm to +5 dBm. The external reference must be diplexed on the L-Band Input Connector. The unit requires a customer designed heatsink.
|

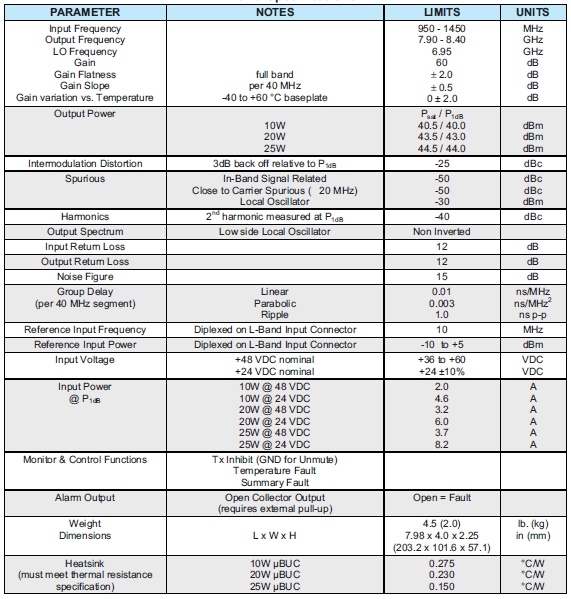

PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
Input Frequency Output Frequency LO Frequency Gain Gain Flatness Gain Slope Gain variation vs. Temperature |
Option 950-1700 Option 13.75-14.50 At 14.0-14.5 GHz At 13.75-14.50 GHz full band per 40 MHz -30 to +60 °C baseplate |
950 - 1450 14.0 - 14.5 13.05 12.80 60 ± 2.0 ± 0.5 0 ± 2.0 |
MHz GHz GHz GHz dB dB dB dB |
||
|
Output Power |
10W 20W 25W |
Psat / P1dB 40.5 / 40.0 43.0 / 42.0 44.0 / 43.0 |
dBm dBm dBm |
||
|
Intermodulation Distortion |
3dB back off relative to P1dB |
-25 |
dBc |
||
|
Spurious |
In-Band Signal Related Close to Carrier Spurious (_ 20 MHz) Local Oscillator |
-50 -50 -30 |
dBc dBc dBm |
||
|
Harmonics |
2nd harmonic measured at P1dB |
-40 |
dBc |
||
|
Output Spectrum |
Low side Local Oscillator |
Non Inverted |
|
||
|
Input Return Loss |
12 |
dB |
|
||
|
Output Return Loss |
12 |
dB |
|
||
|
Noise Figure |
15 |
dB |
|
||
|
Group Delay (per 40 MHz segment) |
Linear Parabolic Ripple |
0.01 0.003 1.0 |
ns/MHz ns/MHz2 ns p-p |
||
|
Reference Input Frequency |
Diplexed on L-Band Input Connector |
10 |
MHz |
||
|
Reference Input Power |
Diplexed on L-Band Input Connector |
-10 to +5 |
dBm |
||
|
Input Voltage |
+48 VDC nominal +24 VDC nominal |
+36 to +60 +24 ±10% |
VDC VDC |
||
|
Input Power @ P1dB |
10W @ 48 VDC 10W @ 24 VDC 20W @ 48 VDC 20W @ 24 VDC 25W @ 48 VDC 25W @ 24 VDC |
2.7 6.3 4.2 9.2 4.8 10.4 |
A A A A A A |
||
|
Monitor & Control Functions |
Tx Inhibit (GND for Unmute) Temperature Fault Summary Fault |
|
|||
|
Alarm Output |
Open Collector Output (requires external pull-up) |
Open = Fault |
|
||
|

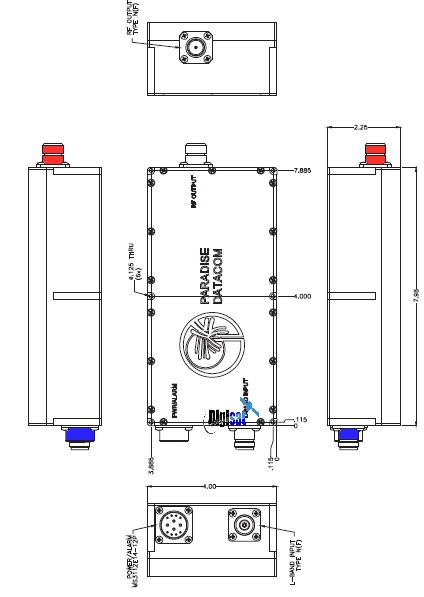

Weight Dimensions |
L x W x H |
4.5 (2.0) 7.98 x 4.0 x 2.25 (203.2 x 101.6 x 57.1) |
lb. (kg) in (mm) |
||
|
Heatsink (must meet thermal resistance specification) |
10W IBUC 20W IBUC 25W IBUC |
0.230 0.150 0.125 |
°C/W °C/W °C/W |
||
Remote Newsgathering, Flyaway antenna systems, portable VSAT terminals
