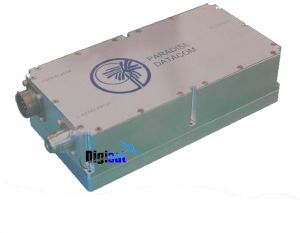

Teledyne Paradise Datacom vBUC Transmit Only Redundant Systems
X-Band power outputs of 10, 20 and 25 watts
vBUC Transmit Only Redundant Systems
The Teledyne Paradise Datacom family of lightweight vBUCs can be configured in a variety of custom systems to meet any redundant system application.
Complete Redundancy
Redundant systems are available in the following output power levels:
C-Band 25W, 50W, 80W
X-Band 10W, 25W, 35W, 80W
Ku-Band 10W, 16W, 25W, 40W
Remote Control
The vBUC is also available in 1:2 redundant configurations with the addition of a RCP2-1200 R edundant System Controller. Chain 1:1 redundancy is available with the use of a RCPD1100 Dual Redundant Controller.
C-Band
|
PARAMETER |
MODEL NUMBER |
NOTES |
LIMITS |
UNITS |
|||
|
Frequency Range |
* |
5.850 to 6.425 |
GHz |
|
|||
|
Output Power @: Saturation/P1dB (Guaranteed minimum) |
VBUCC25AAXXXXX VBUCC50AAXXXXX |
Gain 69 dB 72 dB |
Psat / P1dB 44.25/43.75 (26.6/23.7) 47.25/46.75 (53.1/47.3) |
dBm (W) dBm (W) |
|||
|
Power Requirements 48 VDC Input @ max current draw per unit |
VBUCC25AAXXXXX VBUCC50AAXXXXX |
24 VDC current 7.2 12.0 |
48 VDC current 3.6 5.8 |
Amps Amps |
|||
80W C-Band Redundant System Output Power Levels
|
PARAMETER |
MODEL NUMBER |
NOTES |
LIMITS |
UNITS |
|||
|
Frequency Range |
* |
5.850 to 6.425 |
GHz |
|
|||
|
Output Power @: Saturation (Guaranteed minimum) |
VBUCC80AAXXWXX |
Gain 74 dB |
Psat 48.75 (75) |
dBm (W) |
|||
|
Power Requirements Input Power @ max current draw per unit |
VBUCC80AAXXWXX |
24 VDC current N/A |
48 VDC Current 7.9 |
Amps |
|||
Remote terminals, Milsatcom, Government communications systems
