Paradise Datacom High Power Density (W) Series Outdoor SSPA Systems S,X,C,Ku-Band
Ultra High Power Density, S,C,X & Ku-Band frequencies

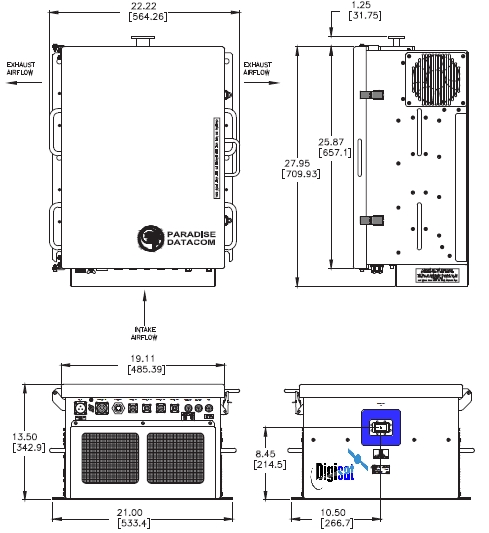

High Power Density Series Outdoor SSPA System- S,X,C,Ku-Band
Teledyne Paradise Datacom’s High Power Outdoor (W) series SSPAs represent the latest in High Power Microwave Amplifier Technology. The SSPA package achieves the highest power density in the industry along with enhanced maintainability.
All subassemblies are accessible and replaceable in the field. Local, front panel, control is available with a user friendly interface. A full compliment of serial and parallel (contact closure) control is also available via circular connectors.
Long MTBFs
A state of the art thermal platform provides efficient cooling for the amplifier module and power supplies. This ensures the highest possible MTBFs for microwave power amplifiers.
Easy Maintenance
Along with high reliability of the Paradise W-Series SSPA's, comes the ultimate in amplifier maintainability. Amplifier modules and power supplies are easily accessed and removed, making this one of the easiest amplifier assemblies to maintain in the field.
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Frequency Range |
(see options for extended band) |
5.850 to 6.425 |
GHz |
|
Output Power @: Saturation/P1dB |
HPAC2400AW |
Psat / P1dB |
dBm (W) |
|
(Typical/Guaranteed minimum) |
56.0/55.0 (400/316) |
dBm (W) |
|
|
HPAC2500AW |
57.0/56.0 (500/400) |
dBm (W) |
|
|
HPAC2600AW |
57.8/57.0 (600/500) |
dBm (W) |
|
|
Power Requirements |
Power Factor corrected |
> 0.9 |
Hz |
|
Line Voltage |
|||
|
Line Frequency |
Autoranging |
47 - 63 |
|
|
Line Power |
HPAC2400AW (180 to 265 VAC) |
2400 |
W |
|
HPAC2500AW (180 to 265 VAC) |
2800 |
W |
|
|
HPAC2600AW (180 to 265 VAC) |
3700 |
W |
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Frequency Range |
Band A Band B |
2.020 to 2.120 2.200 to 2.300 |
GHz GHz |
|
Output Power @ Saturation / P1dB Typical / Guaranteed Minimum |
Band A HPAS2400AWXXXXX (2.020 - 2.090 GHz) HPAS2400AWXXXXX (2.095 - 2.120 GHz) HPAS2500AWXXXXX (2.020 - 2.090 GHz) HPAS2500AWXXXXX (2.095 - 2.120 GHz) HPAS2600AWXXXXX (2.020 - 2.090 GHz) HPAS2600AWXXXXX (2.095 - 2.120 GHz) Band B HPAS2400BWXXXXX (2.200 - 2.300 GHz) HPAS2500BWXXXXX (2.200 - 2.300 GHz) HPAS2600BWXXXXX (2.200 - 2.300 GHz) |
Psat/P1dB 56.5 / 56.0 (447/400) 56.0 / 55.5 (400/355) 57.2 / 57.0 (525/500) 56.7 / 56.5 (468/447) 58.0 / 57.5 (631/560) 57.5 / 57.0 (560/500)
56.5 / 56.0 (447/400) 57.2 / 57.0 (525/500) 58.0 / 57.5 (631/560) |
dBm (W) dBm (W) dBm (W) dBm (W) dBm (W) dBm (W)
dBm (W) dBm (W) dBm (W) |
|
Prime Input Power Line Voltage |
Power factor corrected |
|
|
|
Line Frequency |
|
47– 63 |
Hz |
|
Line Power |
HPAS2400A/BWXXXXX (180 - 265 VAC) |
1800 |
W |
|
|
HPAS2500AWXXXXX (180 - 265 VAC) |
3500 |
W |
|
|
HPAS2600AWXXXXX (180 - 265 VAC) |
3800 |
W |
C-Band Output Power Levels
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Frequency Range |
(see options for extended band) |
7.90 to 8.40 |
GHz |
|
Output Power @: Saturation/P1dB |
HPAX2350AW |
Psat / P1dB |
dBm (W) |
|
(Typical/Guaranteed minimum) |
55.5/54.5 (354/282) |
||
|
HPAX2500AW |
57.0/55.7 (500/370) |
dBm (W) |
|
|
Power Requirements |
Power Factor corrected |
> 0.94 |
Hz |
|
Line Voltage |
|||
|
Line Frequency |
Autoranging |
47 - 63 |
|
|
Line Power |
HPAX2350AW (180 to 265 VAC) |
2700 |
W |
|
HPAX2500AW (180 to 265 VAC) |
4000 |
W |
Ku-Band Output Power Levels
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Frequency Range |
(see options for extended band) |
14.00 to 14.50 |
GHz |
|
Output Power Saturation/P1dB (Typical/Guaranteed minimum) |
HPAK2200AW HPAK2250AW |
Psat / P1dB 53.0/52.0 (200/158) 54.0/53.0 (250/200) |
dBm (W) dBm (W) |
|
Power Requirements |
Power Factor corrected |
> 0.94 |
Hz |
|
Line Voltage |
|||
|
Line Frequency |
Autoranging |
47 - 63 |
|
|
Line Power |
HPAK2200AW (180 to 265 VAC) |
2500 |
W |
|
HPAK2250AW (180 to 265 VAC) |
2800 |
W |
Electrical Specifications
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Gain |
range |
55-75 |
dB |
|
Gain Flatness |
full band |
±1.0 |
dB |
|
|
Extended C-Band units |
±1.5 |
dB |
|
Gain Slope |
per 40 MHz (C-,X-,Ku-bands) |
±0.3 |
dB/40 MHz |
|
|
per 10 MHz (S-band) |
±0.2 |
dB/10 MHz |
|
Gain Variation vs. Temperature |
-40°C to +60°C |
±1.5 |
dB |
|
Gain Adjustment |
0.1 dB resolution |
20 |
dB |
|
Intermodulation Distortion |
3dB back off relative to P1dB |
-25 |
dBc |
|
AM/PM Conversion |
(@ rated P1dB) |
3.5 |
o/dB |
|
(@P1dB-3dB) |
1.0 |
o/dB |
|
|
Spurious |
(@ rated P1dB) |
-60 |
dBc |
|
Harmonics |
(@ rated P1dB-3dB) (C-,X-,Ku-bands) |
-50 |
dBc |
|
(@ rated P1dB-3dB) (S-band) |
-30 |
dBc |
|
|
Input/Output VSWR |
Standard Band units |
1.30:1 |
|
|
Extended Band units |
1.50:1 |
||
|
Noise Figure |
at maximum gain |
10 |
dB |
|
Group Delay |
Linear |
0.01 |
ns/MHz |
|
(per 40 MHz segment) |
Parabolic |
0.003 |
ns/MHz2 |
|
Ripple |
1.0 |
ns p-p |
|
|
Noise Output |
TX Band (S-,C-, X- or Ku-Band) |
-75 |
dBW/4 KHz |
|
RX Band (C- or Ku-Band) |
-150 |
dBW/4 KHz |
|
|
RX Band (X-Band) |
-100 |
dBW/4 KHz |
|
|
RX Band (S-Band) |
See options |
||
|
Residual AM Noise |
0 - 10 KHz |
-45 |
dBc |
|
10 KHz - 500 KHz |
-20 (1.25 + log F) |
dBc |
|
|
500 KHz - 1 MHz |
-80 |
dBc |
|
|
Phase Noise |
Offset frequency from carrier |
-90 |
dBc/Hz |
|
10 Hz |
|||
|
100 Hz |
-100 |
dBc/Hz |
|
|
1 KHz |
-110 |
dBc/Hz |
|
|
10 KHz |
-120 |
dBc/Hz |
|
|
100 KHz |
-125 |
dBc/Hz |
|
|
1 MHz |
-130 |
dBc/Hz |
S, C, Ku & X-Band Uplink Applications. Satellite News Gathering, Military Communications, High Power VSAT Systems, Teleport Earth Stations
