Paradise Datacom Phase Combined Outdoor SSPA Systems
Available in single thread, 1:1 and 1:2 redundant configurations
Phase Combined Outdoor SSPA Systems
Paradise Datacom family of outdoor packaged, phase combined SSPA systems provide the highest degree of redundancy and system reliability.
Exceptional Redundancy
1:1 Phase Combined Systems are an economical solution to providing high output power capability with soft-fail redundancy.
1:2 Phase Combined Systems can provide full output power redundancy to mission critical applications which cannot tolerate any decrease in output power capability.

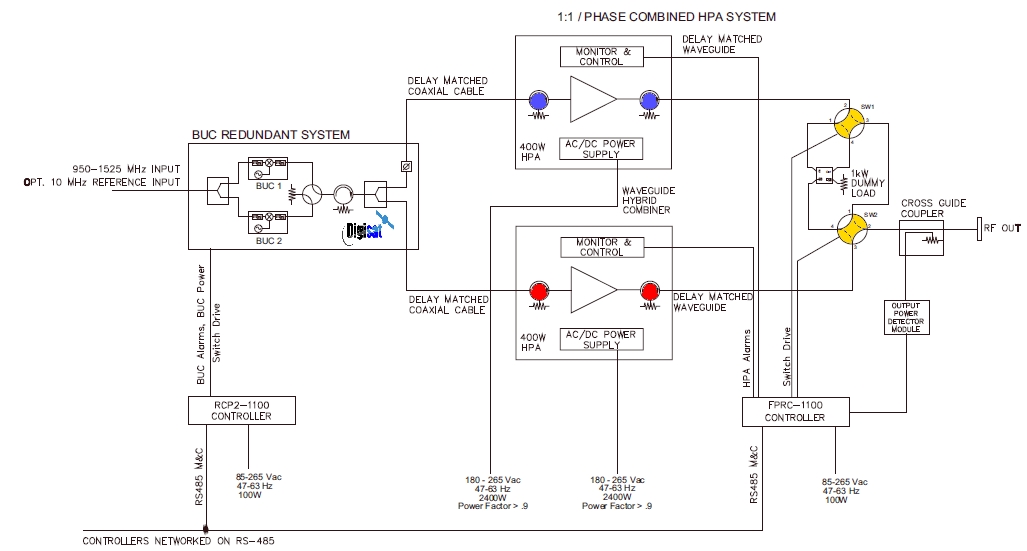

Both 1:1 and 1:2 Phase Combined Systems utilize a signal box through which all RF and L-band input signals are distributed. This ensures that any reference signal is modulated to each amplifier at the same frequency, and that the phase adjustment is optimized.
Available Frequency Plans:
|
Band |
Frequency Band |
IF Input |
LO Frequency |
RF Output |
Gain Change |
|
C |
Standard C-Band |
950 - 1525 MHz |
4.900 GHz |
5.850 - 6.425 GHz |
0-4 dB |
|
C |
Extended C-Band |
950 - 1825 MHz |
4.900 GHz |
5.850 - 6.725 GHz |
0-4 dB |
|
C |
Palapa Band |
950 - 1250 MHz |
5.475 GHz |
6.425 - 6.725 GHz |
0-4 dB |
|
C |
Insat Band |
950 - 1250 MHz |
5.775 GHz |
6.725 - 7.025 GHz |
0-4 dB |
|
C |
Extended C-Band 2 |
950 - 1675 MHz |
4.800 GHz |
5.750 - 6.475 GHz |
0-4 dB |
|
X |
Standard X-Band |
950 - 1450 MHz |
6.950 GHz |
7.900 - 8.400 GHz |
0-2 dB |
|
Ku |
Standard Ku-Band |
950 - 1450 MHz |
13.050 GHz |
14.00 - 14.50 GHz |
0-2 dB |
|
Ku |
Extended Ku-Band |
950 - 1700 MHz |
12.800 GHz |
13.75 - 14.50 GHz |
0-2 dB |
VSAT Hubs & Networks, News Gathering Terminals, Satellite Teleports, Earth Stations, Government Communications Systems
