Teledyne Paradise Datacom 300W C-Band Compact Outdoor GaN SSPA

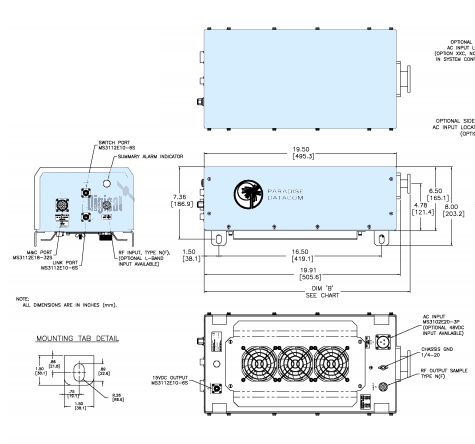

The Teledyne Paradise Datacom 300W C-Band Compact Outdoor GaN SSPA is built for extreme environmental conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry. This allows solid state technology to be used in applications that have long been reserved for TWTAs. Weighing 44 lbs. (20 kg) and being only slightly larger than a shoe box.

HPAC2300ACXXXXXG 5.850 to 6.425 GHz

Output Power

Psat: 300 watts
PLinear: 150 watts

Features

Compact size and weight
CE & MIL-461 Compliant
Integrated forced-air cooling system
20 dB RF Gain Adjustment
Extreme Environmental Testing
RF Output Sample Port
Maintenance Free Operation
Universal, Power Factor Corrected Power Supply
Built-in 1:1 Redundancy Control
Built-in Maintenance Switch Controller
True Output Power Detection

L-Band Operation

Teledyne Paradise Datacom GaN amplifiers are available with an integrated L-Band Block Up Converter. L-Band units utilize proprietary zBUC technology. Adding a zBUC converter typically increases the gain by 2-4 dB. Advantages include:

zBUC converter can detect and switch to an extenally supplied reference.
Optional internal high stability (10MHz) reference.
Locks to an externally supplied reference of 10 or 50 MHz.
Accepts a wide range of external reference power (-10 to +5 dBm)
FSK monitor and control signal via the IFL for complete amplifer remote control.

Universal Handheld Controller (RCH-1000)

The Universal Handheld Controller (RCH-1000) is a versatile device used to interface with a variety of Teledyne Paradise Datacom amplifiers, including Compact Outdoor SSPA, or H-Series High Power Outdoor SSPA. Reference specification sheet 211667.

The device is housed in a ruggedized enclosure that is environmentally sealed to IP65 levels. This allows the Universal Handheld Controller (RCH-1000) to be used in most outdoor environments. The rugged construction of the device enclosure provides protection from impact and vibration.

This device allows the operator to adjust the attenuation of the connected unit, and control the mute/unmute selection, as well as monitor the status, conditions and settings of the connected unit via a serial RS-485 connection. Fault conditions and other events are tracked in the controller’s internal log.
