Teledyne Paradise Datacom 200W C-Band Gallium Nitride (GaN) Mini Compact SSPA
Gallium Nitride for extremely high C-Band power density
200W C-Band Gallium Nitride (GaN) Mini Compact SSPA
The Teledyne Paradise Datacom 200W C-Band Gallium Nitride Mini Compact Outdoor Solid State Power Amplifier (SSPA) is built for extreme environmental conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry. This allows solid state technology to be used in applications that have long been reserved for TWTAs.
High Performance RF
Gallium Nitride amplifiers offer considerably better performance than conventional GaAs solutions. GaN offers better efficiency than other conventional amplifier technologies and also exhibits exceptional gain and power over frequency.
Weighing less than 24.5 lbs. (11.2 kg), and 19.6 lbs. (8.9 kg) for the 80W Ku-Band units, and only slightly larger than a lunch box, this family of GaN SSPAs is available in the following output power levels:
C-Band: 200 W
X-Band: 200 W
Ku-Band: 80 W

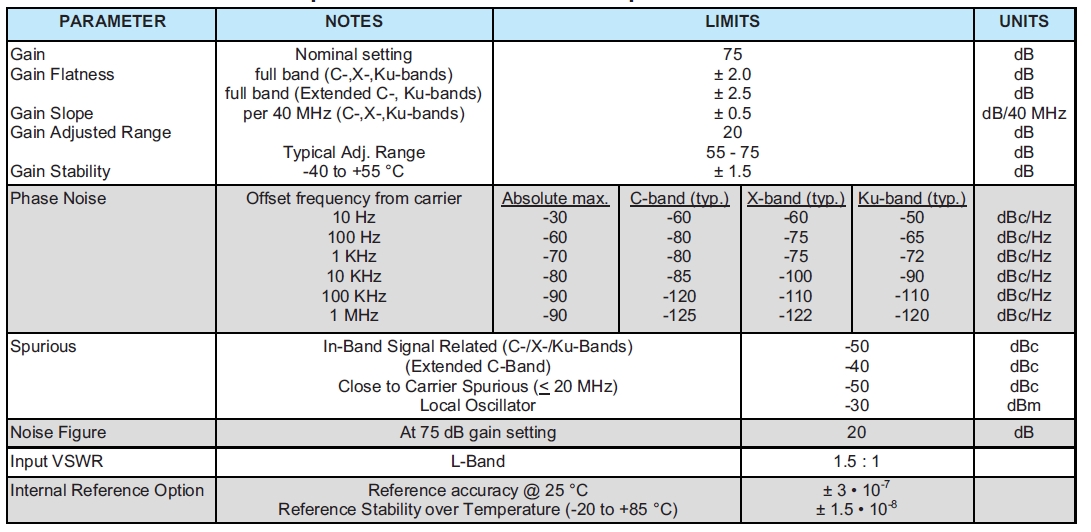

GaN SSPA Specifications
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Gain Gain Flatness Gain Slope Gain Variation vs. Temp. Gain Adjustment |
range full band (C-,X-,Ku-bands) full band (Extended C-Band, Extended Ku-Band) per 40 MHz (C-,X-,Ku-bands) -40 °C to +55 °C 0.1 dB resolution |
55-75 ± 1.0 ± 1.5 ± 0.3 ± 1.5 20 |
dB dB dB dB/40 MHz dB dB |
|
Intermodulation Distortion |
@ rated PLinear |
-25 |
dBc |
|
AM/PM Conversion |
@ rated PLinear |
2.0 |
o/dB |
|
Spurious (SSPA only) Harmonics (SSPA only) |
@ rated PLinear |
-60 -50 |
dBc dBc |
|
Input/Output VSWR |
All units except Extended C-Band Extended C-Band units |
1.30:1 1.50:1 |
|
|
Noise Figure |
At maximum gain (C-,X-,Ku-bands) |
10 |
dB |
|
Group Delay (per 40 MHz segment) |
Linear Parabolic Ripple |
0.01 0.003 1.0 |
ns/MHz ns/MHz2 ns p-p |
|
Transmit Band Noise Output Power Density |
Tx Band Rx Band (C-,X-,Ku-bands) |
-75 -150 |
dBW/4 KHz dBW/4 KHz |
|
Residual AM Noise |
0 - 10 KHz 10 KHz - 500 KHz 500 KHz - 1 MHz |
-45 -20 (1.25 + log F) -80 |
dBc dBc dBc |
|
Phase Noise (SSPA only) |
Offset frequency from carrier 10 Hz 100 Hz 1 KHz 10 KHz 100 KHz 1 MHz |
-90 -100 -110 -120 -125 -130 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
|
RF Power Detector |
Psat to (Psat - 20 dBm) |
20 ± 1.0 |
dBm |
VSAT Networks, Maritime Communications Systems, Military Satcom, Tactical Satellite Services, Satellite News Gathering
