Skyware Global Type 183 Ku-Band 1.8M Tx/RX Class III Antenna

iNetVu 180 1.8M Fixed Motorized VSAT Antenna System (FMA-180)

CPI SAT Series 1183 1.8m C-Band Receive Only VSAT Antenna

SKU

SG-183-Ku

Skyware Global Type 183 Ku-Band 1.8M Tx/RX Class III Antenna is available to buy in increments of 1

Easy mounting of all popular Ku-Band SSPAs and linear Ku Block Upconverters, corrosion resistant hardware for harsh environmental conditions

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Type 183 Ku-Band Linear Transmit Receive Antenna

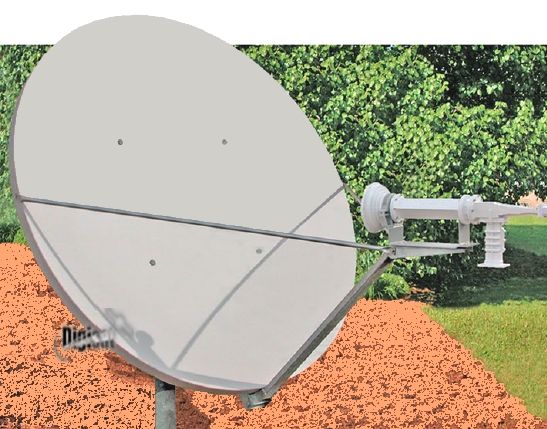

The Skyware Global 1.8M Type 183 Ku-Band Tx/Rx Linear Offset Antenna is a rugged commercial grade product suitable for the most demanding VSAT applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape. This ensures outstanding RF performance for transmit and receive applications such as iDirect internet service and remote satellite broadband applications.

Rugged Reflector Mount

The Type 183 Ku-Band Az/EI mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/EI mount secures the antenna to either a 60 mm 12.38"] or 73-76 mm 12.88"-3.00") 0.D. mast and prevents slippage in high winds.

Corrosion Proof Antenna Backstructure

A specially formulated powder paint process offers excellent protection from weather-related corrosion.

Key Features

• All materials comply with EU directive No. 2002/95/EC (RoHS)
• One-piece thermoset-molded offset reflector
• Single bolt fine elevation adjustment
• Galvanized 19 mm 1.75"] O.D. feed support legs
• Factory pre-assembled Az/EI mount
• Plated hardware for maximum corrosion resistance
• Available with a wide variety of Ku-band feeds

Technical Specifications

RF Performance
Effective Aperture	1.8 m (71 in)
Operating Frequency Transmit Receive	13.75-14.50 GHz 10.70-12.75 GHz
Polarization	Linear, Orthogonal
Gain (±.2 dBi) Transmit Receive	46.8 dBi @ 14.25 GHz 45.3 dBi @ 11.95 GHz
3 dB Beamwidth Transmit Receive	0.79° @ 14.3 GHz 0.99° @ 12.0 GHz
Sidelobe Envelope (Tx, Co-Pol dBi) 1°<θ<20° 20°<θ<26.3° 26.3°<θ<48° 48°<θ<180°	29-25 Log θ -3.5 32 - 25 Log θ -10
Antenna Cross-Polarization	30 dB (On Axis) 26 dB in .5 dB Contour
Antenna Noise Temperature 10° El 20° El 30° EL	43°K 28°K 23°K
VSWR Transmit Receive	1.3:1 1.5:1
Isolation Transmit Receive	110 dB 35 dB
Feed Interface Transmit Receive	WR75 Flat Flange - UBR120 WR75 Flat Flange - UBR120
Mechanical Performance
Reflector Material	Glass Fiber Reinforced Polyester
Antenna Optics	One-Piece Offset Feed Prime Focus
Mount Type	Elevation over Azimuth
Elevation Adjustment Range	10°-90° Continuous Fine Adjustment
